Артикул: 1SBN010010R1001
· Производитель: ABB
· EAN: 3471522121011
1SBN010010R1001
Под заказ
Наличие в РФ
320.63 ₽
в наличии на складе · 8 шт.
Склад в Китае
276.18 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
410.59 ₽
срок ≈1 мес. (38 дн.)

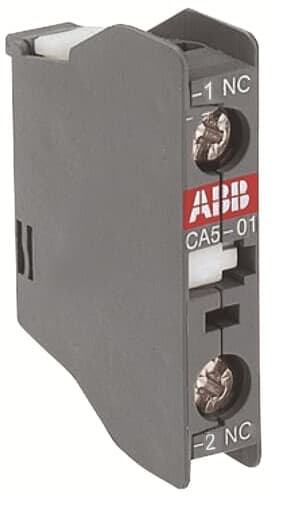

CA5-01 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on A serie contactors and N serie contactor relays. CA5-01 is available with 1 N.C. instantaneous contacts for standard industrial environments.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 276.18 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в России | 320.63 ₽ | 5 дн. | 8 шт. | — | Заказать |
| Наш склад | 360.00 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 410.59 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 425.32 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 447.36 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 453.25 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 469.50 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Китае | 493.84 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в России | 558.03 ₽ | 5 дн. | 440 шт. | — | Заказать |
| Склад в Европе | 582.57 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Product Net Width | 11 mm |
| Product Net Depth / Length | 32.5 mm |
| Product Net Height | 47 mm |
| Product Net Weight | 0.014 kg |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 1P |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.30 A / 66 W, (250 V) 0.3 / 75 W |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A, for 1 s 100 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V |
| Maximum Electrical Switching Frequency | 1200 cycles per hour |
| Mechanical Durability | 10 million, 3 million |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Minimum Switching Capacity | A9 ... A75 17 / 5 VLT4K, A95 ... A110 24 / 50 VLT4K |
| Power Loss | at Rated Operating Conditions per Pole 0.1 W |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type | Screw Terminals |
| Suitable For | AF45, AF50, AF63, AF75, AF95B, GAF75, A9, A12, A16, A26, A30, A40, A45, A50, A63, A75, A95, A110, AL9, AL9Z, AL12, AL12Z, AL16, AL16Z, AL26, AL30, AL40, AE45, AE50, AE63, AE75, TAL9, TAL12, TAL16, TAL26, TAL30, TAL40, TAE45, TAE50, TAE75, GA75, GAE75, UA16, UA26, UA30, UA50, UA63, UA75, UA95, UA110, UA16RA, UA26RA, UA30RA, UA50RA, UA63RA, UA75RA, UA95RA, UA110RA, UAF75RA, UAF95RA, UAF110RA, N22E, N31E, N40E, NL22E, NLZ22E, NL31E, NLZ31E, NL40E, NLZ40E, TNL22E, TNL31E, TNL40E |
| Product Name | Auxiliary Contact Block |
| Remarks | 100 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 65 mm |
| Package Level 1 Depth / Length | 129.5 mm |
| Package Level 1 Height | 9.5 mm |
| Package Level 1 Gross Weight | 0.14 kg |
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| E-Number (Finland) | 3709187 |
| extended_product_type | CA5-01 |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Contactors > Block Contactors, Parts & Services > Medium Voltage Products and Systems > Service > Spares and Consumables > Parts > All Spare Parts (Relays-SWG-CB) |
