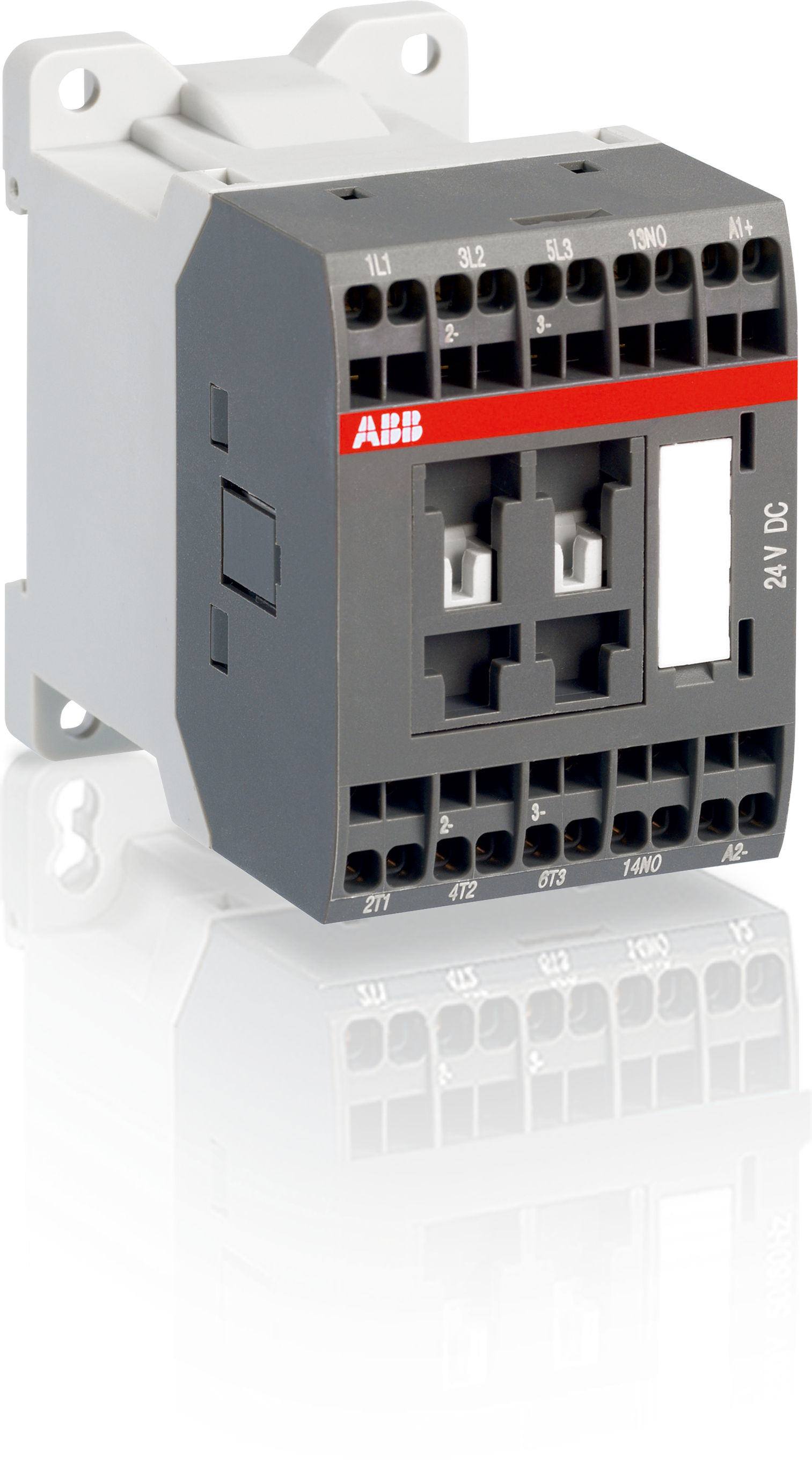

ASL16-30-01S-81 1SBL123004R8101
Под заказ
RUНаличие в РФ
нет в наличии
CNСклад в Китае
4 469.58 ₽
срок ≈2 мес. (73 дн.)
EUСклад в Европе
5 776.20 ₽
срок ≈4 мес. (122 дн.)
Описание товара
ASL16 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. The ASL..S contactors are the spring terminal version of the ASL... range. The ASL... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. ASL... contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs.
1Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 4 469.58 ₽ | ≈2 мес. (73 дн.) | под заказ | от 40 шт. | Заказать |
| Склад в Европе | 5 776.20 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 376.33 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 521.54 ₽ | ≈1 мес. (45 дн.) | под заказ | от 40 шт. | Заказать |
| Склад в Европе | 6 669.18 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 7 516.09 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 598.29 ₽ | ≈2 мес. (73 дн.) | под заказ | от 40 шт. | Заказать |
| Склад в Европе | 8 033.66 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 8 296.98 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 8 868.33 ₽ | ≈1 мес. (59 дн.) | под заказ | от 40 шт. | Заказать |
| Склад в Европе | 10 043.17 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 299.27 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 11 086.62 ₽ | ≈1 мес. (45 дн.) | под заказ | от 40 шт. | Заказать |
2Характеристики
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 72.5 mm |
| Product Net Height | 68 mm |
| Product Net Weight | 0.28 kg |
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 3P |
| Standards | IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14 |
| Rated Operational Voltage | Auxiliary Circuit 690 V, Main Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 22 A, acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 22 A, (690 V) 60 °C 17 A, (690 V) 70 °C 14 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 15.5 A, (440 V) 60 °C 13.6 A, (500 V) 60 °C 12.5 A, (690 V) 60 °C 9 A, (380 / 400 V) 60 °C 15.5 A, (220 / 230 / 240 V) 60 °C 15.7 A |
| Rated Operational Current AC-15 (Ie) | (500 V) NC 2, (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (400 / 440 V) 3 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.27 A / 60 W, (250 V) 0.27 A / 68 W |
| Rated Operational Power AC-3 (Pe) | (400 V) 7.5 kW, (415 V) 7.5 kW, (440 V) 7.5 kW, (500 V) 7.5 kW, (690 V) 7.5 kW, (220 / 230 / 240 V) 4 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 124 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 22 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 55 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 75 A, for 0.1 s 140 A, for 1 s 100 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 155 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V, acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V, acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour, (AC-15) 1200 cycles per hour, (AC-2 / AC-4) 300 cycles per hour, (AC-3) 1200 cycles per hour, (DC-13) 900 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc) | DC Operation 24 V |
| Coil Consumption | Average Holding Value DC 3 W, Average Holding Value, from Warm State 3 W |
| Power Loss | at Rated Operating Conditions AC-1 per Pole 1.1 W, at Rated Operating Conditions AC-3 per Pole 0.55 W |
| Operate Time | Between Coil De-energization and NC Contact Closing 15 ... 20 ms, Between Coil De-energization and NO Contact Opening 13 ... 17 ms, Between Coil Energization and NC Contact Opening 31 ... 53 ms, Between Coil Energization and NO Contact Closing 36 ... 59 ms |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm², Rigid 1/2x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm², Rigid 1/2x 0.75 ... 2.5 mm² |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm², Rigid 1/2x 0.75 ... 2.5 mm² |
| Wire Stripping Length | Auxiliary Circuit 10 mm, Control Circuit 10 mm, Main Circuit 10 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Recommended Screw Driver | Pozidriv PZ |
| Terminal Type | Spring Terminals |
| Product Name | Block Contactor |
| General Use Rating UL/CSA | (600 V AC) 15.2 A |
| Horsepower Rating UL/CSA | (120 V AC) Single Phase 3/4 hp, (200 ... 208 V AC) Three Phase 3 hp, (220 ... 240 V AC) Three Phase 5, (240 V AC) Single Phase 2 hp, (440 ... 480 V AC) Three Phase 10 hp, (550 ... 600 V AC) Three Phase 10 hp |
| Connecting Capacity Auxiliary Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG, Rigid Stranded 1/2x 18-14 AWG |
| Full Load Amps Motor Use | (120 V AC) Single Phase 13.8 A, (200 ... 208 V AC) Three Phase 11 A, (220 ... 240 V AC) Three Phase 15.2 A, (240 V AC) Single Phase 12 A, (440 ... 480 V AC) Three Phase 14 A, (550 ... 600 V AC) Three Phase 11 A |
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C, Close to Contactor without Thermal O/L Relay -40 ... 70 °C, Close to Contactor for Storage -60 ... +80 °C |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | Closed, Shock Direction: B1 10 g, Closed, Shock Direction: C1 20 g, Closed, Shock Direction: C2 20 g, Open, Shock Direction: B1 5 g, Open, Shock Direction: C1 9 g, Open, Shock Direction: C2 14 g, Shock Direction: A 20 g, Shock Direction: B2 15 g |
| Resistance to Vibrations | 3g Closed Position & 2g Open Position 5 ... 300 Hz |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 78 mm |
| Package Level 1 Depth / Length | 80 mm |
| Package Level 1 Height | 48 mm |
| Package Level 1 Gross Weight | 0.28 kg |
| Package Level 3 Units | 960 piece |
| Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
