Артикул: 1SAZ801901R1001
· Производитель: ABB
· EAN: 4013614501722
1SAZ801901R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
2 327.40 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
2 108.35 ₽
срок ≈4 мес. (122 дн.)

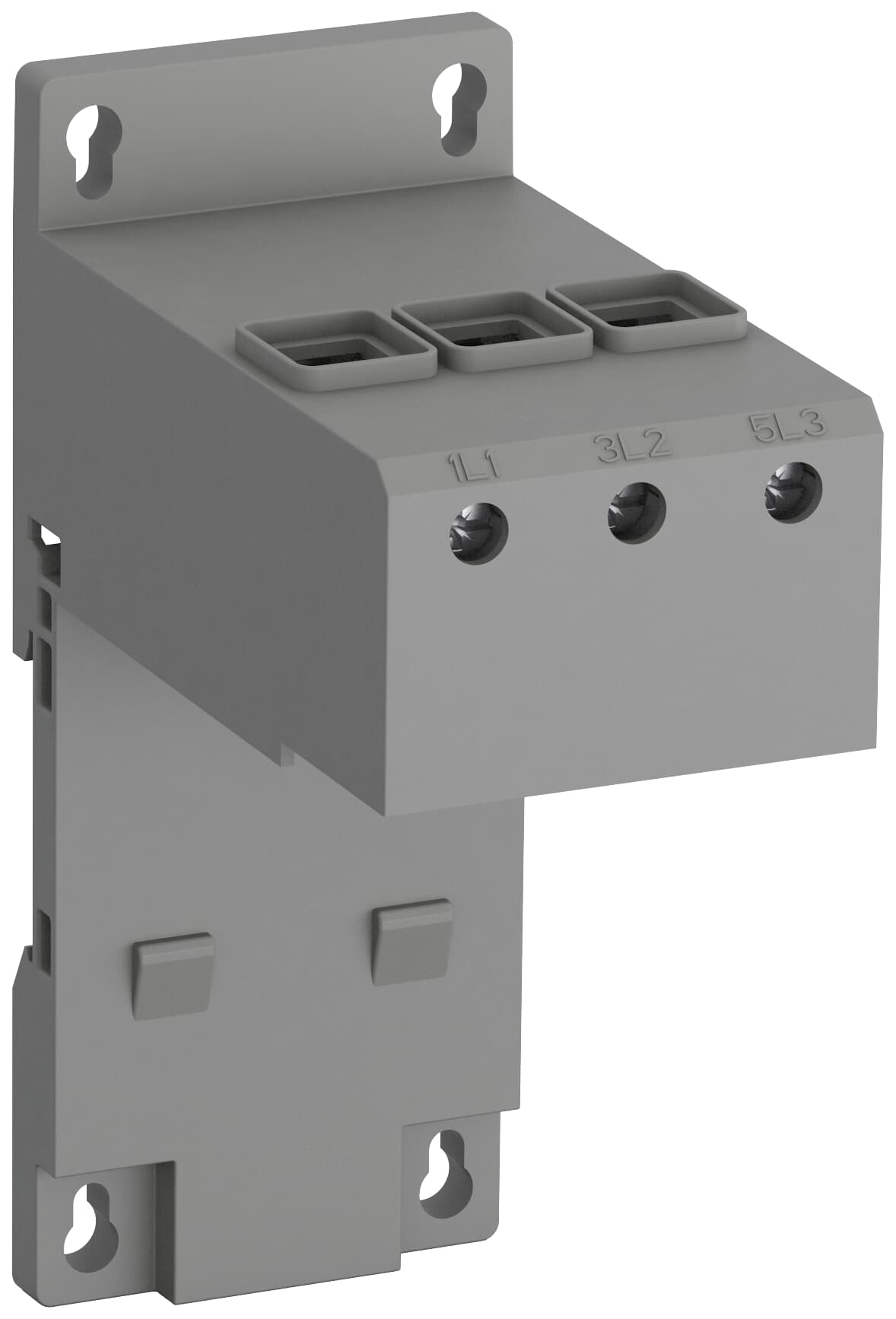

The DB65 single mounting kit allows the installation of TF65 thermal overload relays without a contactor on a DIN rail or mounting plate.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 2 108.35 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 109.11 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 128.38 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 2 327.40 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 2 328.24 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 2 349.51 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 957.41 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 6 393.10 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 9 845.37 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 10 868.27 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Product Net Width | 55 mm |
| Product Net Height | 95 mm |
| Product Net Depth / Length | 138 mm |
| Product Net Weight | 0.132 kg |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 67 A |
| Rated Operational Current AC-3 (Ie) | 67 A |
| Rated Frequency (f) | Main Circuit 60 Hz, Main Circuit 50 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Insulation Voltage (Ui) | 390 V |
| Number of Poles | 3P |
| Degree of Protection | IP20 |
| Pollution Degree | 3 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 35 mm², Flexible with Ferrule 2x 2.5 ... 10 mm², Flexible with Insulated Ferrule 1x 2.5 ... 35 mm², Flexible with Insulated Ferrule 1x 2.5 ... 10 mm², Flexible 1x 2.5 ... 35 mm², Flexible 2x 2.5 ... 16 mm², Rigid 1x 2.5 ... 35 mm², Rigid 2x 2.5 ... 16 mm² |
| Tightening Torque | Main Circuit 4.0 ... 4.5 N·m |
| Wire Stripping Length | Main Circuit 17 mm |
| Recommended Screw Driver | M6, Pozidriv 2 |
| Mounting Position | 1 ... 6 |
| Suitable For | TF65 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 12-2 AWG, Flexible 2x 12-6 AWG, Stranded 1x 12-2 AWG, Stranded 2x 12-6 AWG |
| Tightening Torque UL/CSA | Main Circuit 35 ... 40 in·lb |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 60 mm |
| Package Level 1 Height | 106 mm |
| Package Level 1 Depth / Length | 142 mm |
| Package Level 1 Gross Weight | 0.174 kg |
| Object Classification Code | Q |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 31162313 |
| IDEA Granular Category Code (IGCC) | 2988 >> Mounting kits |
| E-Number (Norway) | 4116779 |
| E-Number (Sweden) | 3210250 |
| extended_product_type | DB65 |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Contactors > Thermal Overload Relays |
