Артикул: 1SAX101910R1001
· Производитель: ABB
· EAN: 4013614483950
1SAX101910R1001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
2 310.59 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
2 093.12 ₽
срок ≈4 мес. (122 дн.)

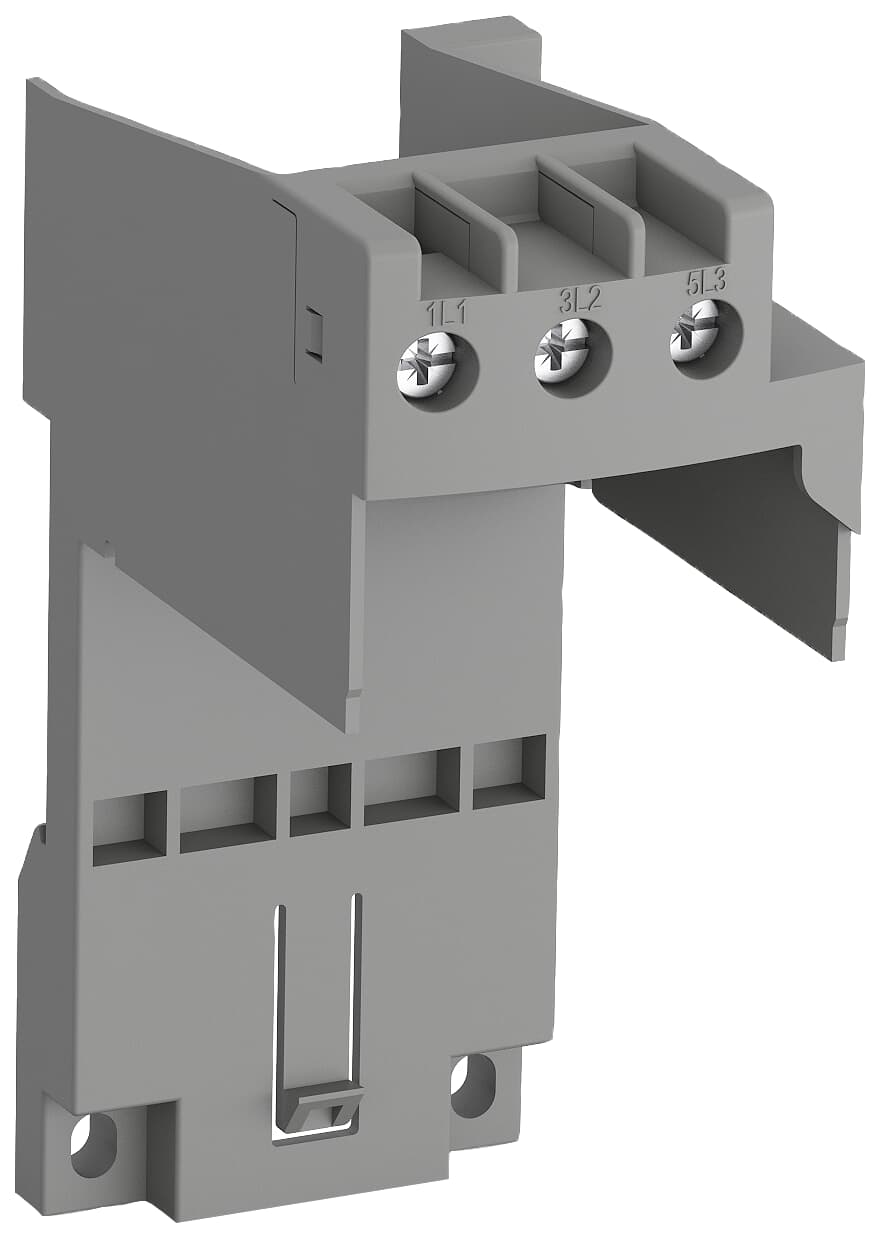

The DB19EF single mounting kit allows the installation of EF19 electronic overload relays without a contactor on a DIN rail or mounting plate.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 2 093.12 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 093.92 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 110.97 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 2 310.59 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 2 311.47 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 2 330.29 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 935.42 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 4 084.77 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 290.55 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 944.11 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Product Net Width | 45 mm |
| Product Net Height | 103.5 mm |
| Product Net Depth / Length | 67.3 mm |
| Product Net Weight | 0.046 kg |
| Rated Operational Voltage | Auxiliary Circuit 600 V AC/DC, Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 18.9 A |
| Rated Operational Current AC-3 (Ie) | 18.9 A |
| Rated Frequency (f) | Main Circuit 50 Hz, Main Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Number of Poles | 3P |
| Number of Protected Poles | 3 |
| Pollution Degree | 3 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible 1x 0.75 ... 2.5 mm², Rigid 1x 1 ... 4 mm² |
| Tightening Torque | Main Circuit 0.8 ... 1.5 N·m |
| Wire Stripping Length | Main Circuit 12 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Suitable For | EF19 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 18-10 AWG, Stranded 1/2x 18-10 AWG |
| Tightening Torque UL/CSA | Main Circuit 7 ... 13 in·lb |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 109 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Depth / Length | 74 mm |
| Package Level 1 Gross Weight | 0.072 kg |
| Object Classification Code | F |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 31162313 |
| IDEA Granular Category Code (IGCC) | 2988 >> Mounting kits |
| E-Number (Finland) | 3800373 |
| E-Number (Norway) | 4117837 |
| E-Number (Sweden) | 3210277 |
| extended_product_type | DB19EF |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Contactors > Electronic Overload Relays, Parts & Services > Drives > Services > Spares and Consumables > Parts |
