Артикул: 1SAM201902R1001
· Производитель: ABB
· EAN: 4013614320361
1SAM201902R1001
Под заказ
Наличие в РФ
750.17 ₽
в наличии на складе · 611 шт.
Склад в Китае
579.09 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
557.58 ₽
срок ≈1 мес. (38 дн.)

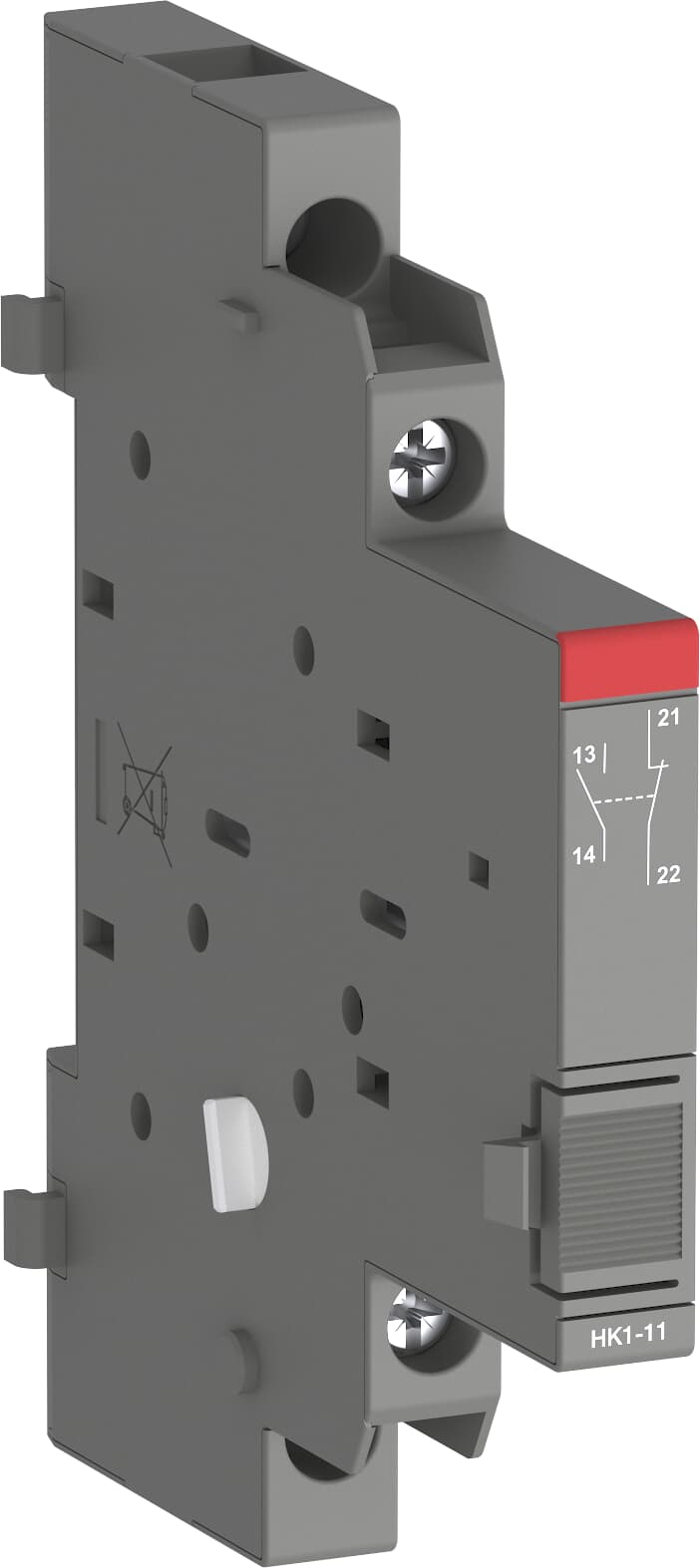

Auxiliary contacts HK1 change position with the main contacts of the manual motor starter. They are mounted laterally on the right side of manual motor starters MS116, MS132 or MS165. Auxiliary contacts HK1 are available as normally open or normally closed contacts.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 557.58 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 579.09 ₽ | ≈1 мес. (45 дн.) | под заказ | от 2 шт. | Заказать |
| Склад в Европе | 600.36 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 615.50 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 640.71 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 662.74 ₽ | ≈1 мес. (59 дн.) | под заказ | от 2 шт. | Заказать |
| Склад в Европе | 679.37 ₽ | ≈2 нед. (17 дн.) | под заказ | — | Заказать |
| Склад в Китае | 707.28 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в России | 750.17 ₽ | 5 дн. | 611 шт. | — | Заказать |
| Наш склад | 774.00 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Европе | 891.79 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 978.75 ₽ | уточняется | под заказ | от 2 шт. | Заказать |
| Склад в Китае | 984.44 ₽ | ≈1 мес. (45 дн.) | под заказ | от 2 шт. | Заказать |
Характеристики
| Minimum Order Quantity | 2 piece |
| Customs Tariff Number | 85365080 |
| Product Net Width | 9 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 78.5 mm |
| Product Net Weight | 0.035 kg |
| Rated Operational Voltage | 690 V AC, 600 V DC, Main Circuit 690 V |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Degree of Protection | IP20 |
| Electrical Durability | 100000 cycle |
| Mechanical Durability | Nr. Operations 100000 cycle |
| Terminal Type | Screw Terminals |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 1.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm², Flexible 1/2x 0.75 ... 1.5 mm², Rigid 1/2x 1 ... 1.5 mm² |
| Tightening Torque | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length | Auxiliary Circuit 8 mm |
| Recommended Screw Driver | M3, Pozidriv 2 |
| Mounting Position | 1 ... 6 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 16-14 AWG, Stranded 1/2x 16-14 AWG |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Contact Rating UL/CSA | B600, Q600 |
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -50 ... +80 °C |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 5g 3 ... 150 Hz |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 2 piece |
| Package Level 1 Width | 25 mm |
| Package Level 1 Depth / Length | 80 mm |
| Package Level 1 Height | 93 mm |
| Package Level 1 Gross Weight | 0.08 kg |
| Package Level 2 Units | carton 160 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 6.775 kg |
| Object Classification Code | Q |
| ETIM 9 | EC000041 - Auxiliary contact block |
| ETIM 10 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| E-Number (Finland) | 3706016 |
| E-Number (Norway) | 4364279 |
| E-Number (Sweden) | 3112005 |
| extended_product_type | HK1-11 |
| category_paths | Products > Low Voltage Products and Systems > Circuit Breakers > Manual Motor Starters, Products > Low Voltage Products and Systems > Control Products > Manual Motor Starters > Manual Motor Starters, Parts & Services > Drives > Services > Spares and Consumables > Parts |
