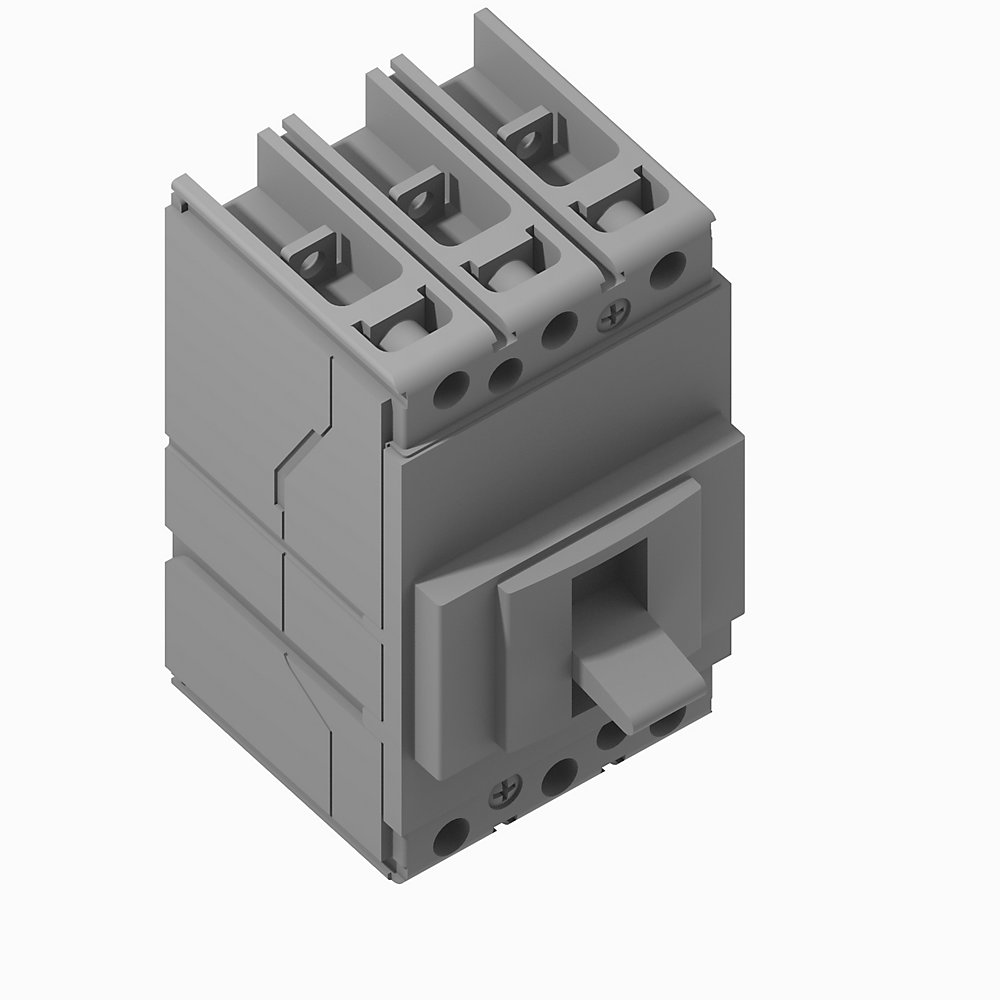

125A G Frame Molded Case Ckt-Bkr 140G-G6C3-C15-AJ-MT
Под заказ
RUНаличие в РФ
нет в наличии
CNСклад в Китае
111 810.93 ₽
срок ≈2 мес. (66 дн.)
113 783.96 ₽
срок ≈1 мес. (52 дн.)
EUСклад в Европе
101 287.55 ₽
срок ≈2 мес. (70 дн.)
103 074.88 ₽
срок ≈1 мес. (56 дн.)
ROРумыния
682.78 €
срок ≈2 мес. (70 дн.)
694.83 €
срок ≈1 мес. (56 дн.)
CNКитай
682.78 €
срок ≈2 мес. (66 дн.)
694.83 €
срок ≈1 мес. (52 дн.)
HKГонКонг Китай
694.83 €
срок ≈1 мес. (52 дн.)
Цены в валюте поставщика с нашей наценкой, без учёта логистики. Самовывоз со склада поставщика за рубежом.
Описание товара
125A G Frame Molded Case Ckt-Bkr
1Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 101 287.55 ₽ | ≈2 мес. (70 дн.) | под заказ | — | Заказать |
| Склад в Европе | 103 074.88 ₽ | ≈1 мес. (56 дн.) | под заказ | — | Заказать |
| Склад в Китае | 111 810.93 ₽ | ≈2 мес. (66 дн.) | под заказ | — | Заказать |
| Склад в Китае | 113 783.96 ₽ | ≈1 мес. (52 дн.) | под заказ | — | Заказать |
| Склад в Китае | 117 130.55 ₽ | ≈1 мес. (52 дн.) | под заказ | — | Заказать |
2Характеристики
| Lifecycle Status | Active |
| Build America, Buy America | No |
| Repair Options Available | No |
| Ambient temperature without derating | 104 °F |
| Complete device with protection unit | True |
| Construction type | T/M-fixed thermal/fixed magnetic TMF |
| Degree of protection (IP) | IP40 |
| Depth | 70 mm |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | True |
| Electrical life cycle | 8000 @ 415V AC |
| Factory option | Standard busbar mount, top ftd |
| Frame size | 125 A |
| Height | 130 mm |
| Insulation voltage (Ui) | Rated 800V per IEC |
| Integrated earth fault protection | False |
| Interrupting rating | 65kA @ 480V, 50/60 Hz per NEMA, UL, CSA |
| Magnetic trip current (Im) | 500 A |
| Mechanical life operations | 25000 /h |
| Motor drive integrated | False |
| Motor drive optional | True |
| Number of auxiliary contacts as change-over contact | 1 |
| Number of poles | 3 |
| Operational voltage (Ue) | 90% of voltage rating @ 3000 m (9840 ft) altitude |
| Position of connection for main current circuit | Front side |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Rated permanent current Iu | 15 A |
| Rated service short-circuit breaking capacity (Ics) | IEC 60947-2: 75% lcu @ 500V DC, 3-poles in series, thermal-magnetic trip unit only |
| Rated ultimate short-circuit breaking capacity (Icu) | IEC 60947-2: 70kA @ 500V DC, 3-poles in series, thermal-magnetic trip unit only |
| Rated uninterrupted current (Iu) | 98% of current rating @ 3000 m (9840 ft) altitude |
| Shock | Peak acceleration: 150 m/s² peak, pulse duration 11 ms |
| Storage temperature | -40 °F |
| Suitable for DIN rail (top hat rail) mounting | False |
| Thermal trip current (Ir = In (fixed)) | 15 A |
| Thermal trip rating, max | 15 A @ ambient temperature 40 °C |
| Type of control element | Toggle |
| Type of electrical connection of main circuit | Screw connection |
| Vibration | 2...13.2 Hz ±1 mm, 13.2...100 Hz ±0.7 G |
| Votlage for reverse-fed circuit breaker, max | 690V AC per IEC |
| Watt loss | Thermal magnetic type: 4 W |
| Weight | 2.42 lb |
| Width | 76.2 mm |
| Wire temperature rating | Cu 75 °C |
| With integrated under voltage release | False |
| With switched-off indicator | False |
| Unique Product Identifier | 140G-G6C3-C15-AJ-MT |
| UPC | 887172727214 |
| Estimated Lead Time | 184 days |
| Standard Warranty Duration | 1 year See details |
| Country of Origin | Italy |
| 3-Dimensional STEP model (STP) | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| General | Publication |
| Specifications and Technical Data | 140G-TD101 |
| Product Cutsheet | -- |
| Breaker Wars: MCCB vs MPCB vs MCP vs MCB Podcast | -- |
| Technical Data | Publication |
| 140g-td102_-en-p | 140G-TD102 |
| EU Importer Address | Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium |
| EU Authorized Representative Address | Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium |
