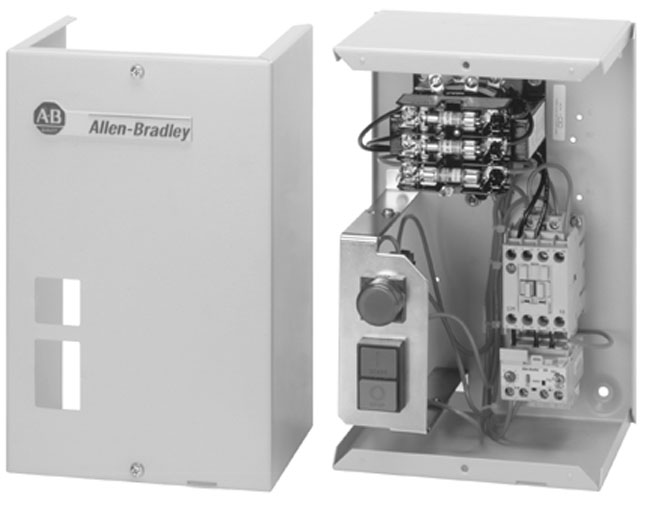

IEC Enclosed Starter 109-C09FBJE1D-3-4G-6P
Под заказ
RUНаличие в РФ
нет в наличии
CNСклад в Китае
65 947.37 ₽
срок ≈1 мес. (52 дн.)
EUСклад в Европе
101 558.96 ₽
срок ≈1 мес. (52 дн.)
Описание товара
IEC Enclosed Starter
1Варианты поставки
2Характеристики
| Lifecycle Status | Active |
| Build America, Buy America | No |
| Repair Options Available | No |
| Control Type | Transformer Control |
| Enclosure Type | IP66/NEMA 3/4/12 Mtl |
| Sub Brand | IEC Enclosed |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 12 |
| Depth | 6.31 mm |
| Enclosure type | Type 3/4/12 - IP66 (Metal) |
| External reset possible | False |
| Factory installed models | HAND-OFF-AUTO selector switch |
| Height | 11.81 mm |
| Hp rating | 5Hp @ 460V (AC3, AC4), 3-phase, 60 Hz |
| KW rating | 4 kW @ 500V (AC3, AC4), 3-phase, 50 Hz |
| Number of indicator lights | 1 |
| Overload relay | E1 plus electronic 3-phase overload relay, manual/auto reset, Class 10, 15, 20, 30, full load current adjustment range 3.2...16 A |
| Overload release current setting | 3.2 A |
| Rated control supply voltage at AC 60 Hz | 24 V |
| Rated operation current Ie | 9 A |
| Release class | Adjustable |
| Suitable for emergency stop | True |
| Temperature compensated overload protection | True |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| Width | 7.87 mm |
| With fuse | False |
| With short-circuit release | False |
| With transformer | True |
| Unique Product Identifier | 109-C09FBJE1D-3-4G-6P |
| UPC | 885630587974 |
| Estimated Lead Time | 8 days |
| Standard Warranty Duration | 1 year See details |
| Country of Origin | United States of America |
| General | Publication |
| Product Cutsheet | -- |
| Technical Data | Publication |
| 100-td013_-en-p | 100-TD013 |
