Артикул: 103H-EFBD2-DC16X-6P-14RM-A20 Производитель: Allen Bradley

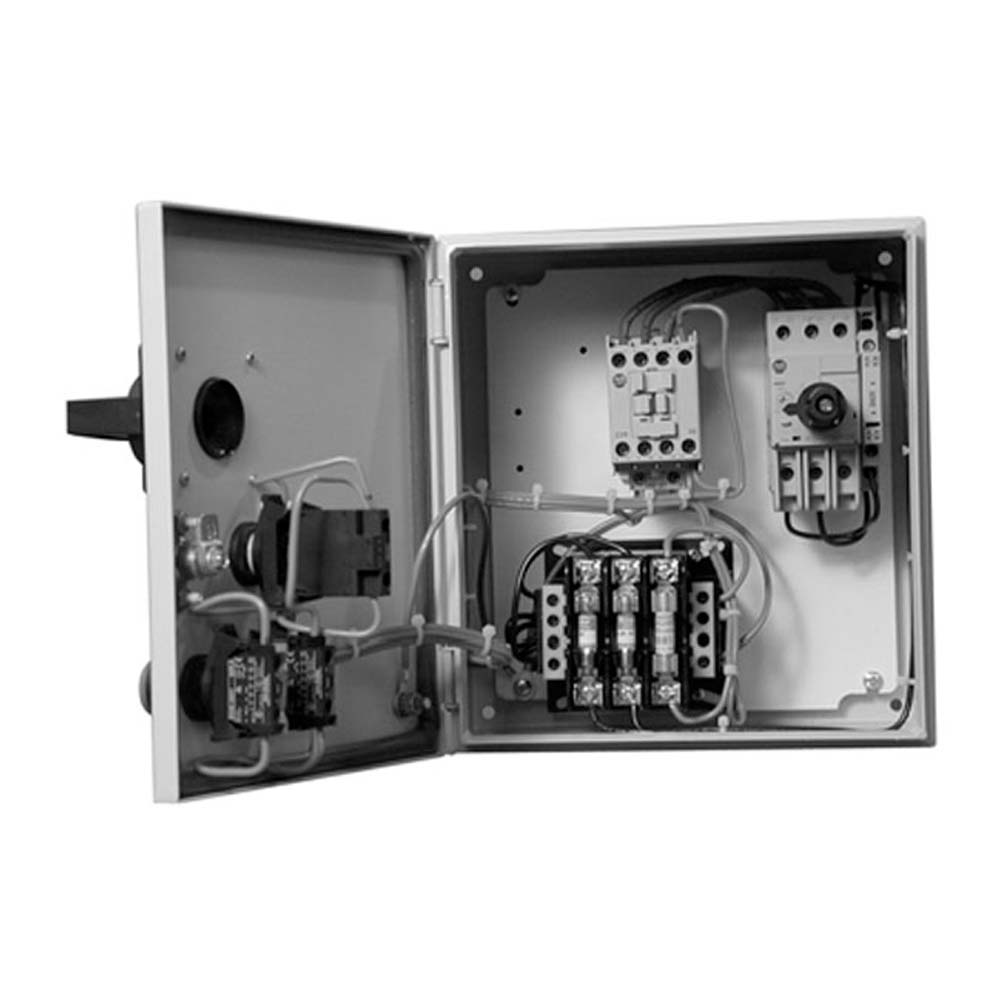

IEC Enclosed H Comb Motor Ctlr 103H-EFBD2-DC16X-6P-14RM-A20

Name: IEC Enclosed H Comb Motor Ctlr
Brand: Allen Bradley
SKU: 103H-EFBD2-DC16X-6P-14RM-A20
Availability: PreOrder

Под заказ

RUНаличие в РФ

нет в наличии

CNСклад в Китае

128 594.10 ₽

срок ≈1 мес. (52 дн.)

EUСклад в Европе

198 034.91 ₽

срок ≈1 мес. (52 дн.)

Запросить цену / заказать Все варианты поставки

Описание товара

IEC Enclosed H Comb Motor Ctlr

1Варианты поставки

Склад	Цена	Срок	Наличие	Мин. партия
Склад в Китае	128 594.10 ₽	≈1 мес. (52 дн.)	под заказ	—	Заказать
Склад в Европе	198 034.91 ₽	≈1 мес. (52 дн.)	под заказ	—	Заказать
Склад в Китае	218 609.97 ₽	≈1 мес. (52 дн.)	под заказ	—	Заказать

2Характеристики

Lifecycle Status	Active
Build America, Buy America	No
Repair Options Available	No
Circuit breaker auxiliary and trip contacts	Without auxiliary and trip contacts
Circuit breaker frame size	140M-D8E high break plus (Type E - standard version, magnetic + thermal)
Contactor size	100-C30
Degrees of protection (IP), enclosure	IP66 (metal)
Degrees of protection (NEMA), enclosure	Type 3/4/12
Depth, approx	Enclosure style C: 185 mm
Enclosure size	Enclosure type C
Factory installed models	Multifunction push button - START-STOP-pilot light, red
Height, approx	Enclosure style C: 250 mm
Hp ratings as a UL508 self-protected Type E combination motor controller	7.5...10Hp @ 460V, 60 Hz, 45 A frame size
Hp ratings as a UL508 Type F combination motor controller	7.5...10Hp @ 460V, 45 A frame size
Line voltage	480V-60 Hz
Number of auxiliary contacts as normally open contact	1
Number of indicator lights	1
Overload release current setting	10 A
Rated control supply voltage at AC 50 Hz	110 V
Rated control supply voltage at AC 60 Hz	120 V
Release class	CLASS 10
Temperature compensated overload protection	True
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Type of electrical connection of main circuit	Screw connection
Type of motor starter	Direct online starter (DOL)
Voltage type for actuating	AC
Width, approx	Enclosure style C: 262 mm
With short-circuit release	True
With transformer	True
Unique Product Identifier	103H-EFBD2-DC16X-6P-14RM-A20
UPC	884951929432
Estimated Lead Time	8 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America
General	Publication
Product Cutsheet	--
Technical Data	Publication
100-td013_-en-p	100-TD013
Short-circuit current as a UL508 self-protected Type E combination motor controller, max	65 kA @ 480Y/277V @ 60Hz, 45 A frame size
