Артикул: 103H-AFHKJ2-CB40X-3-6P-A20 Производитель: Allen Bradley

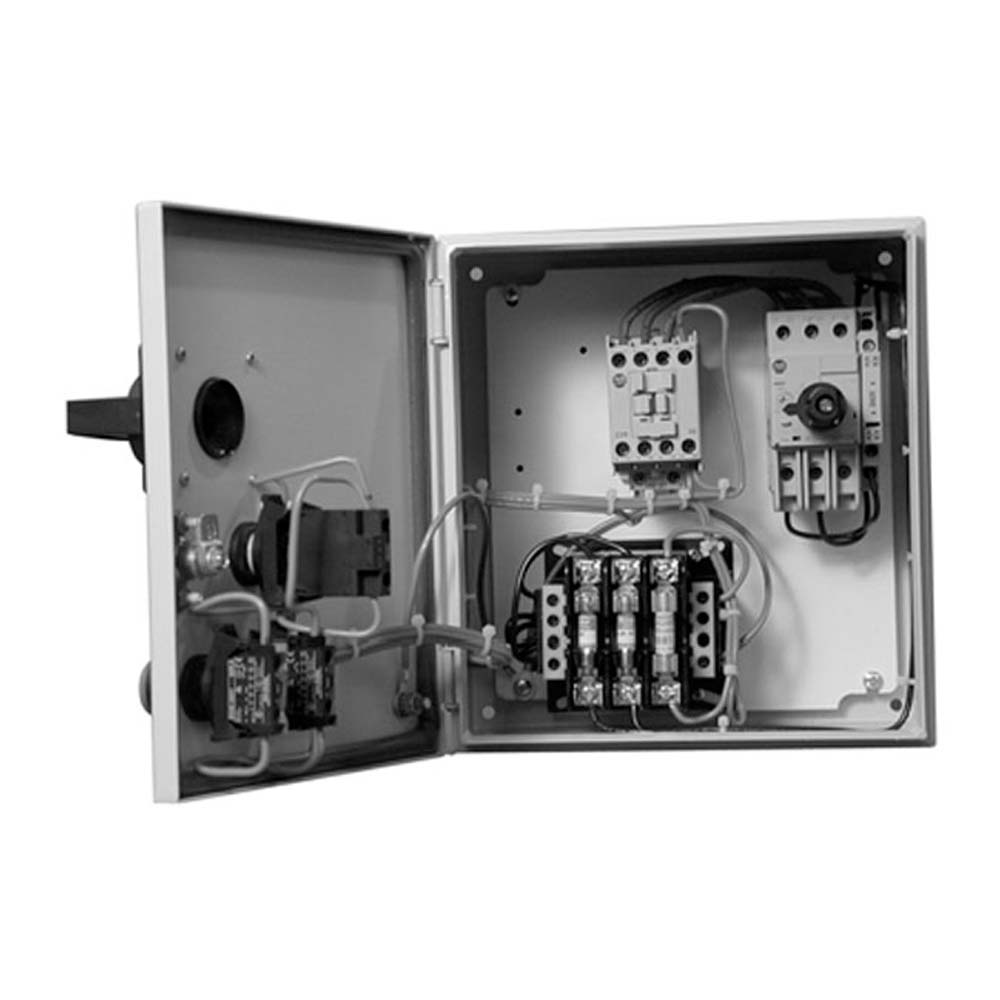

IEC Enclosed H Comb Motor Ctlr 103H-AFHKJ2-CB40X-3-6P-A20

Name: IEC Enclosed H Comb Motor Ctlr
Brand: Allen Bradley
SKU: 103H-AFHKJ2-CB40X-3-6P-A20
Availability: PreOrder

Под заказ

RUНаличие в РФ

нет в наличии

CNСклад в Китае

103 643.18 ₽

срок ≈1 мес. (52 дн.)

EUСклад в Европе

159 610.50 ₽

срок ≈1 мес. (52 дн.)

Запросить цену / заказать Все варианты поставки

Описание товара

IEC Enclosed H Comb Motor Ctlr

1Варианты поставки

Склад	Цена	Срок	Наличие	Мин. партия
Склад в Китае	103 643.18 ₽	≈1 мес. (52 дн.)	под заказ	—	Заказать
Склад в Европе	159 610.50 ₽	≈1 мес. (52 дн.)	под заказ	—	Заказать
Склад в Китае	176 193.41 ₽	≈1 мес. (52 дн.)	под заказ	—	Заказать

2Характеристики

Lifecycle Status	Active
Build America, Buy America	No
Repair Options Available	No
Sub Brand	IEC Enclosed
Circuit breaker auxiliary and trip contacts	Without auxiliary and trip contacts
Circuit breaker frame size	140M-C2E high break (Type E - standard version, magnetic + thermal)
Coil voltage	24V 50/60 Hz
Contactor size	100-C09
Degrees of protection (IP), enclosure	IP66 (metal)
Degrees of protection (NEMA), enclosure	Type 3/4/12
Depth, approx	Enclosure style A: 160 mm
Enclosure size	Enclosure type A
Factory installed models	HAND-OFF-AUTO selector switch
Height, approx	Enclosure style A: 200 mm
Hp ratings as a UL508 self-protected Type E combination motor controller	3/4...1Hp @ 230V, 60 Hz, 25 A frame size
Hp ratings as a UL508 Type F combination motor controller	3/4...1Hp @ 230V, 25 A frame size
Line voltage	208V-60 Hz
Number of auxiliary contacts as normally open contact	1
Overload release current setting	2.5 A
Release class	CLASS 10
Temperature compensated overload protection	True
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Type of electrical connection of main circuit	Screw connection
Type of motor starter	Direct online starter (DOL)
Voltage type for actuating	AC
Width, approx	Enclosure style A: 180 mm
With short-circuit release	True
With transformer	True
Unique Product Identifier	103H-AFHKJ2-CB40X-3-6P-A20
UPC	887172517853
Estimated Lead Time	8 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America
General	Publication
Product Cutsheet	--
Technical Data	Publication
100-td013_-en-p	100-TD013
Short-circuit current as a UL508 self-protected Type E combination motor controller, max	65 kA @ 480Y/277V @ 60Hz, 25 A frame size
