GJL1311201R8000
GJL1311201R8000 GJL1311201R8000 GJL1311201R8000 GJL1311201R8000 GJL1311201R8000
Артикул: GJL1311201R8000 · Производитель: ABB · EAN: 4013614152399

GJL1311201R8000

В наличии на нашем складе
Наличие в РФ
2 344.00 ₽
в наличии на складе · 5 шт.
Склад в Китае
2 433.11 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
2 708.56 ₽
срок ≈1 мес. (38 дн.)
Запросить цену / заказать

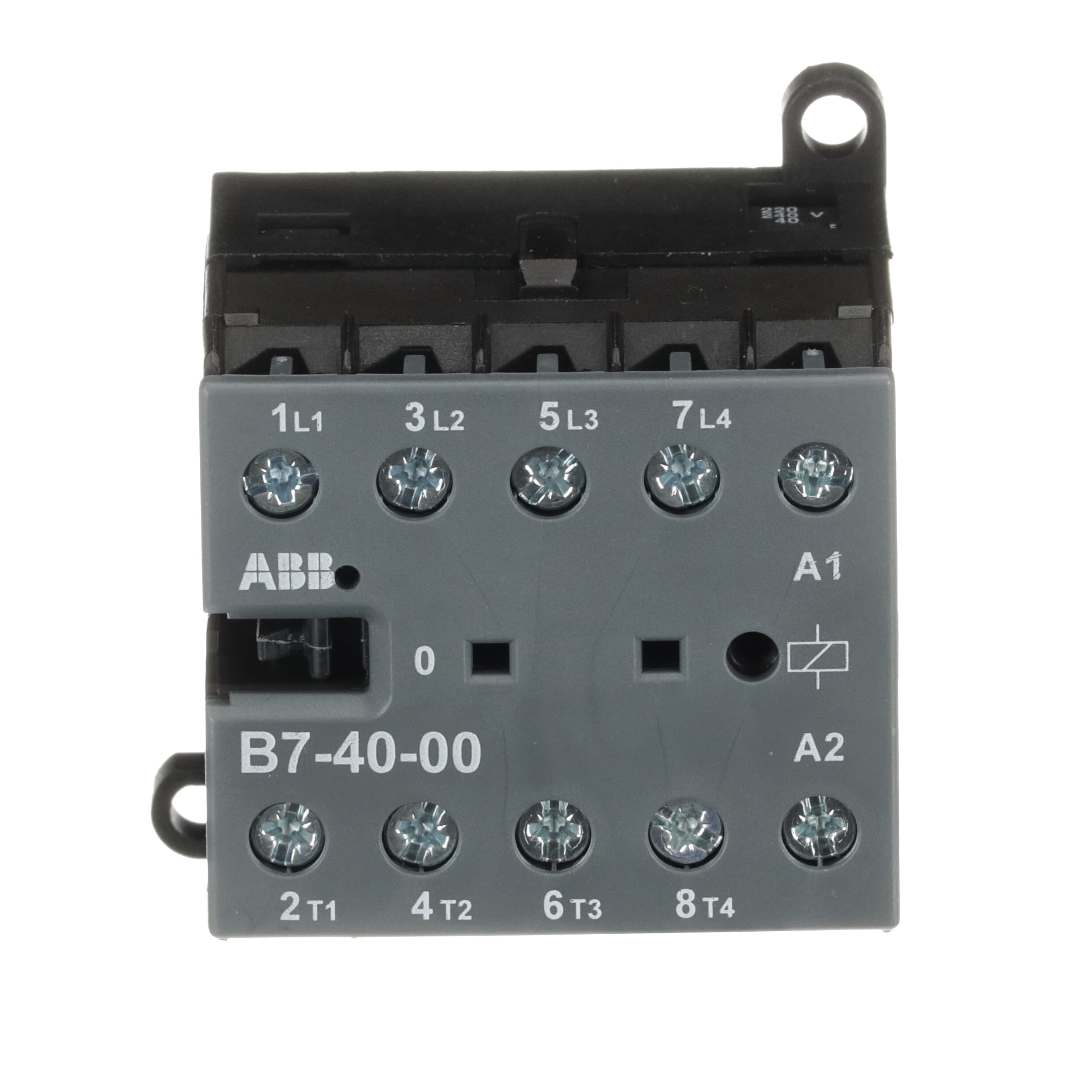

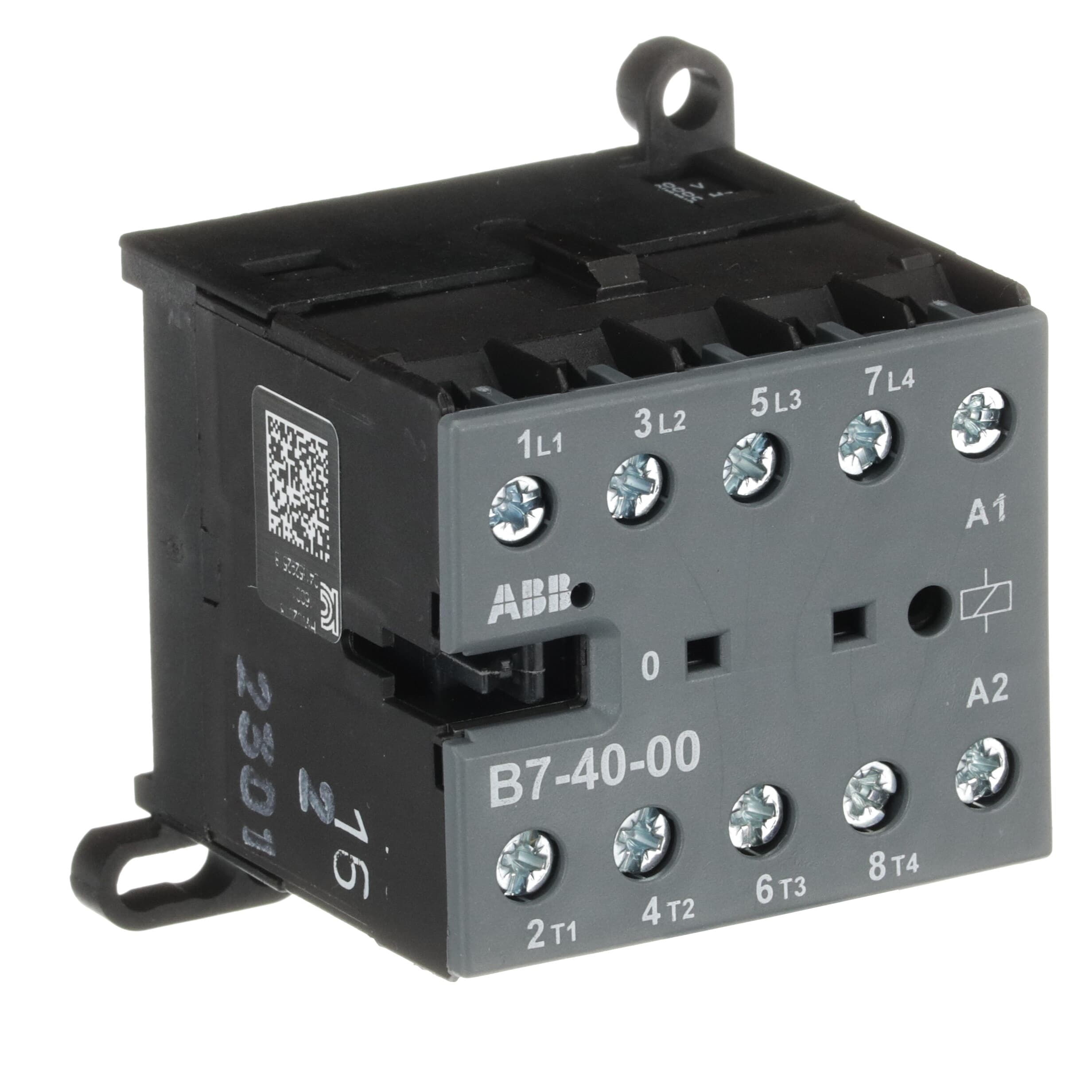

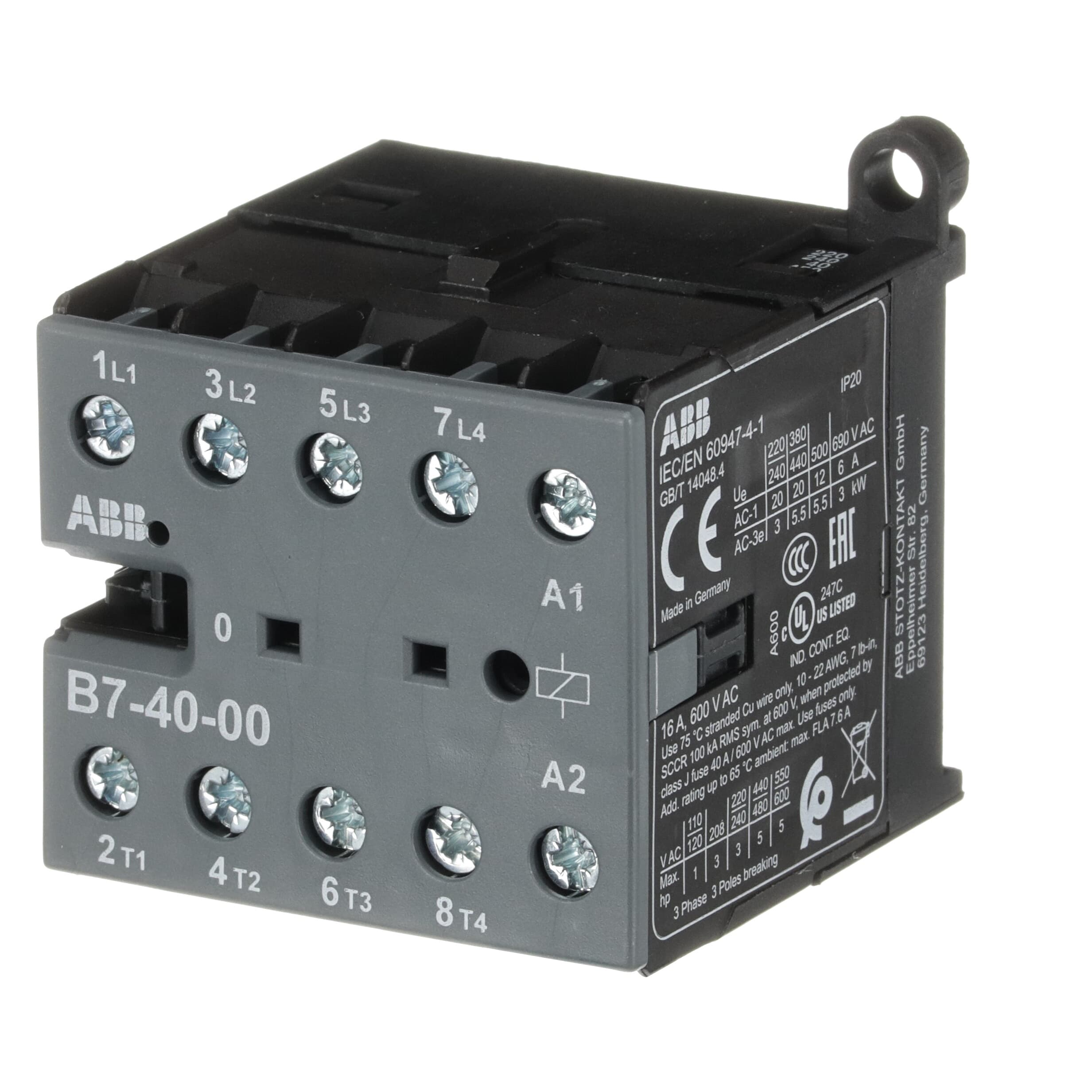

The B7-40-00 mini contactor is a compact 4 pole contactor with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.

Варианты поставки

СкладЦенаСрокНаличиеМин. партия
Наш склад 2 344.00 ₽ В наличии 5 шт. — Заказать
Склад в Китае 2 433.11 ₽ ≈1 мес. (45 дн.) под заказ — Заказать
Склад в Европе 2 708.56 ₽ ≈1 мес. (38 дн.) под заказ — Заказать
Склад в России 2 731.29 ₽ 5 дн. 103 шт. — Заказать
Склад в Европе 2 760.87 ₽ ≈4 мес. (122 дн.) под заказ — Заказать
Склад в Китае 2 989.97 ₽ ≈1 мес. (38 дн.) под заказ — Заказать
Склад в Европе 3 037.78 ₽ ≈1 мес. (59 дн.) под заказ — Заказать
Склад в Китае 3 047.71 ₽ ≈4 мес. (122 дн.) под заказ — Заказать
Склад в Китае 3 353.40 ₽ ≈1 мес. (59 дн.) под заказ — Заказать
Склад в Европе 3 746.99 ₽ ≈1 мес. (45 дн.) под заказ — Заказать
Склад в Китае 4 136.28 ₽ ≈1 мес. (45 дн.) под заказ — Заказать
Склад в Европе 4 361.22 ₽ уточняется под заказ — Заказать

Характеристики

Minimum Order Quantity1 piece
Customs Tariff Number85365080
Product Net Width52.5 mm
Product Net Depth / Length46.7 mm
Product Net Height57.5 mm
Product Net Weight0.175 kg
Number of Main Contacts NO4
Number of Main Contacts NC0
Number of Auxiliary Contacts NO0
Number of Auxiliary Contacts NC0
Number of Poles4P
StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Rated Operational VoltageMain Circuit 690 V AC, Main Circuit 220 V DC
Rated Frequency (f)Control Circuit 400 Hz, Control Circuit 50 Hz, Control Circuit 60 Hz, Main Circuit 60 Hz, Main Circuit 50 Hz, Main Circuit DC
Conventional Free-air Thermal Current (Ith)Main Circuit 20 A
Rated Operational Current AC-1 (Ie)(220 / 240 V) 40 °C 20 A, (220 / 240 V) 55 °C 16 A, (380 / 440 V) 40 °C 20 A, (380 / 440 V) 55 °C 16 A, (690 V) 40 °C 6 A, (690 V) 55 °C 6 A
Rated Operational Current AC-3 (Ie)(230 V) 55°C 12 A, (400 V) 55 °C 12 A, (500 V) 55 °C 9 A, (690 V) NO 55°C 3.5 A
Rated Operational Power AC-3 (Pe)(230 V) Three Phase 3 kW, (400 V) Three Phase 5.5 kW, (500 V) Three Phase 5.5 kW, (690 V) Three Phase, NO 3 kW
Rated Breaking Capacity AC-38 x Ie / AC-3
Rated Making Capacity AC-310 x Ie / AC-3
Rated Short-time Withstand Current Low Voltage (Icw)at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 96 A
Rated Insulation Voltage (Ui)690 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)Main Circuit 6 kV
Maximum Electrical Switching Frequency(AC-1) 300 cycles per hour, (AC-3) 600 cycles per hour, (DC-1) 600 cycles per hour, (DC-3) 600 cycles per hour
Mechanical DurabilityNr. Operations 10000000 cycle
Coil Operating Limits(acc. to IEC 60947-4-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Rated Control Circuit Voltage (Uc)220 ... 240 V AC
Coil ConsumptionAverage Holding Value 50 Hz 3.5 V·A, Average Pull-in Value 50 Hz 3.5 V·A
Power Lossat Rated Operating Conditions AC-1 per Pole 1.4 W
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Connecting Capacity Main CircuitFlexible with Ferrule 1/2x 1 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm², Flexible 1/2x 1 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm²
Connecting Capacity Control CircuitFlexible with Ferrule 1/2x 1 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm², Flexible 1/2x 1 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm²
Wire Stripping LengthMain Circuit 9 mm
Degree of ProtectionControl Circuit Terminals IP20, Main Circuit Terminals IP20
Recommended Screw DriverM3, Pozidriv 1
Tightening TorqueControl Circuit 0.8 ... 1.1 N·m, Main Circuit 0.8 ... 1.1 N·m
Terminal TypeScrew Terminals
Mini Contactor TypeMini Contactor
Product NameMini Contactor
Maximum Operating Voltage UL/CSAMain Circuit 600 V AC
General Use Rating UL/CSA(600 V AC) 16 A
Horsepower Rating UL/CSA(115 V AC) Single Phase 0.75 Hp, (200 V AC) Three Phase 2 Hp, (220 ... 240 V AC) Three Phase 3 Hp, (230 V AC) Single Phase 1.5 Hp, (440 ... 480 V AC) Three Phase 5 Hp, (550 ... 600 V AC) Three Phase 5 Hp
Connecting Capacity Main Circuit UL/CSAStranded 1/2x 22-10 AWG
Tightening Torque UL/CSAControl Circuit 7 in·lb, Main Circuit 7 in·lb
Full Load Amps Motor Use(115 V AC) Single Phase 13.8 A, (200 V AC) Three Phase 7.8 A, (220 ... 240 V AC) Three Phase 9.6 A, (230 V AC) Single Phase 10 A, (440 ... 480 V AC) Three Phase 7.6 A, (550 ... 600 V AC) Three Phase 6.1 A
Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +80 °C
Maximum Operating Altitude Permissible2000 m
Resistance to Shock acc. to IEC 60068-2-2711 ms Pulse 15g
Resistance to Vibrations5g 5 ... 150 Hz
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutionsYes
Package Level 1 Unitsbox 10 piece
Package Level 1 Width115 mm
Package Level 1 Depth / Length280 mm
Package Level 1 Height54 mm
Package Level 1 Gross Weight1.82 kg
Object Classification CodeQ
ETIM 7EC000066 - Power contactor, AC switching
