Артикул: 7TAG009590R0012
· Производитель: ABB
· EAN: 5414363178408
7TAG009590R0012
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
15.30 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
22.92 ₽
срок ≈1 мес. (59 дн.)

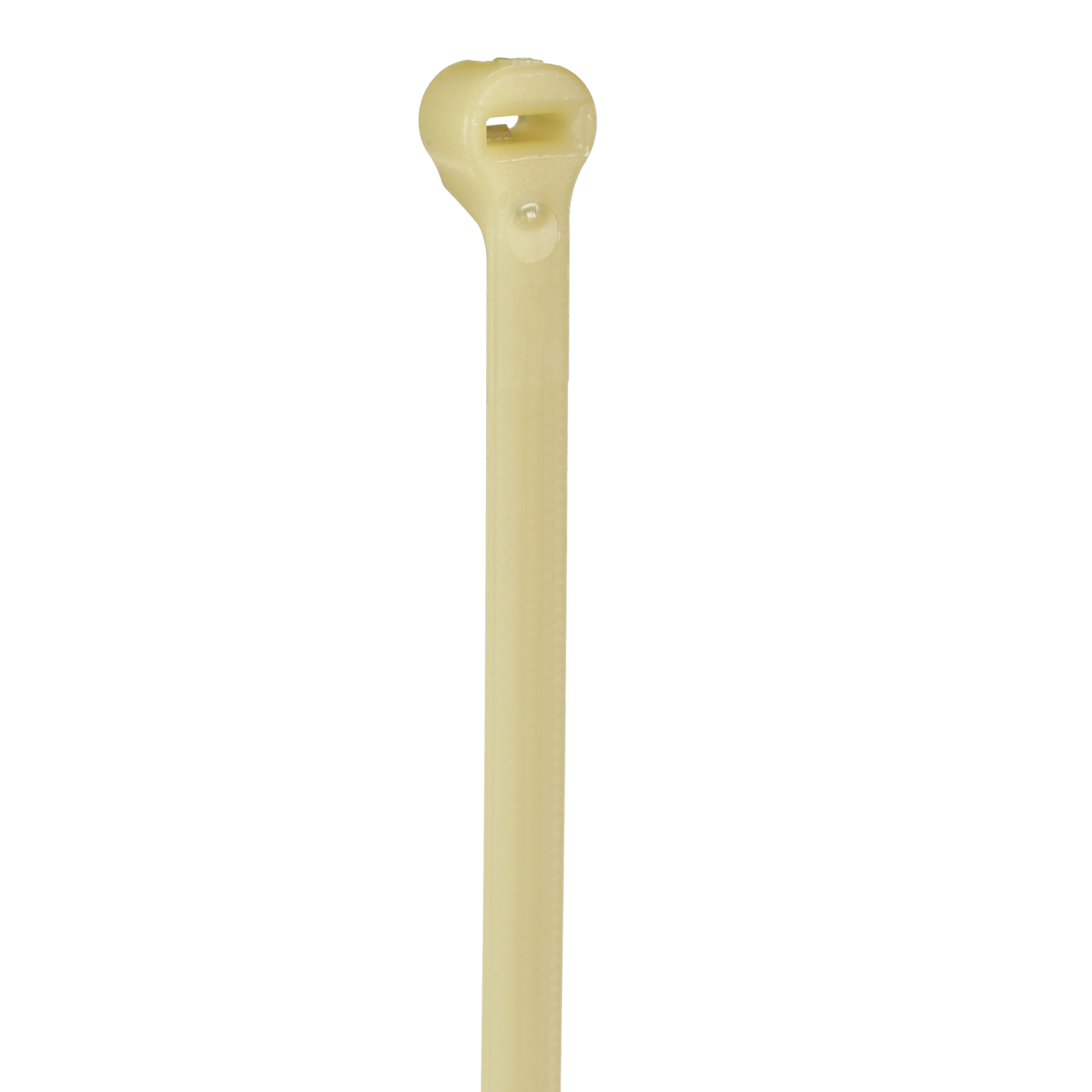

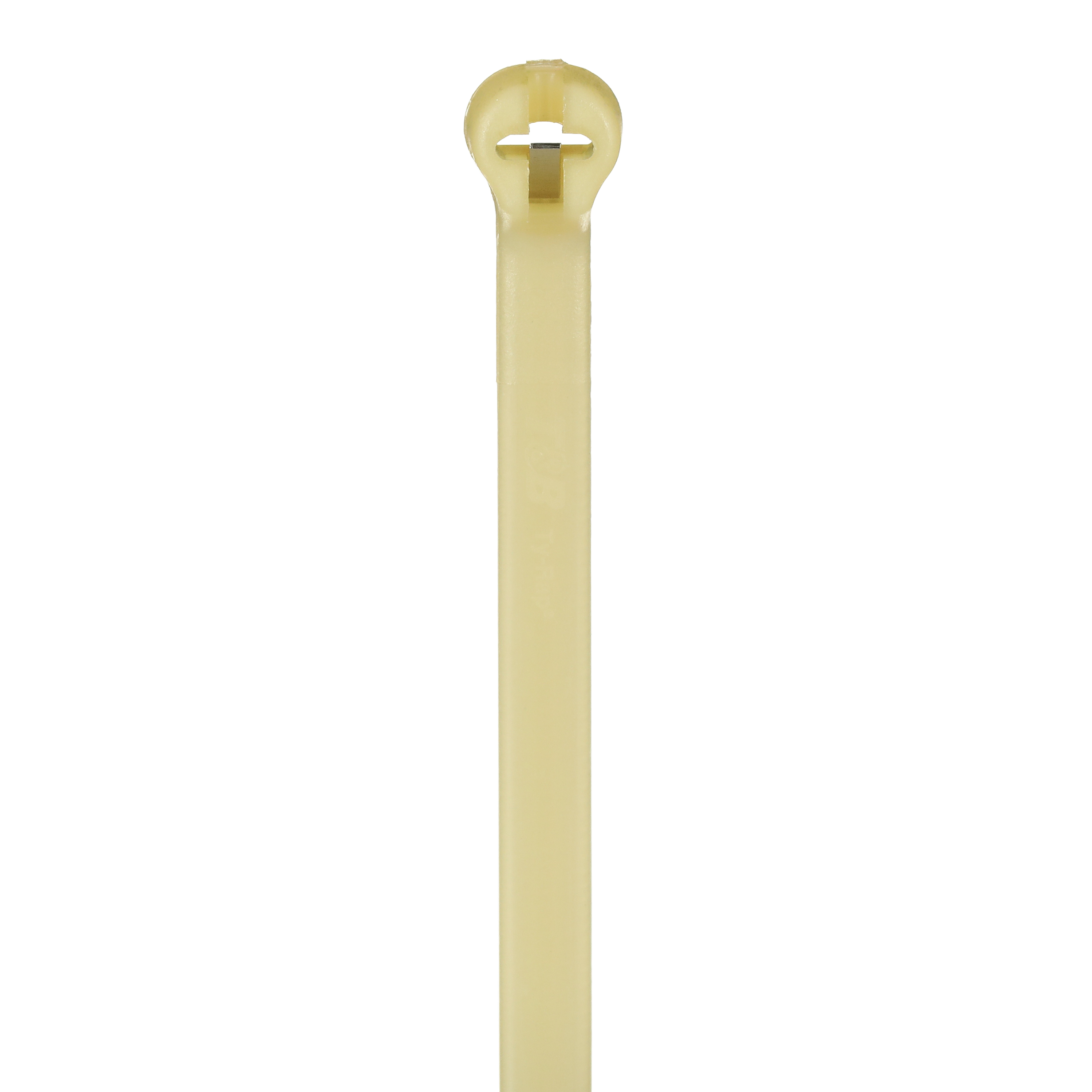

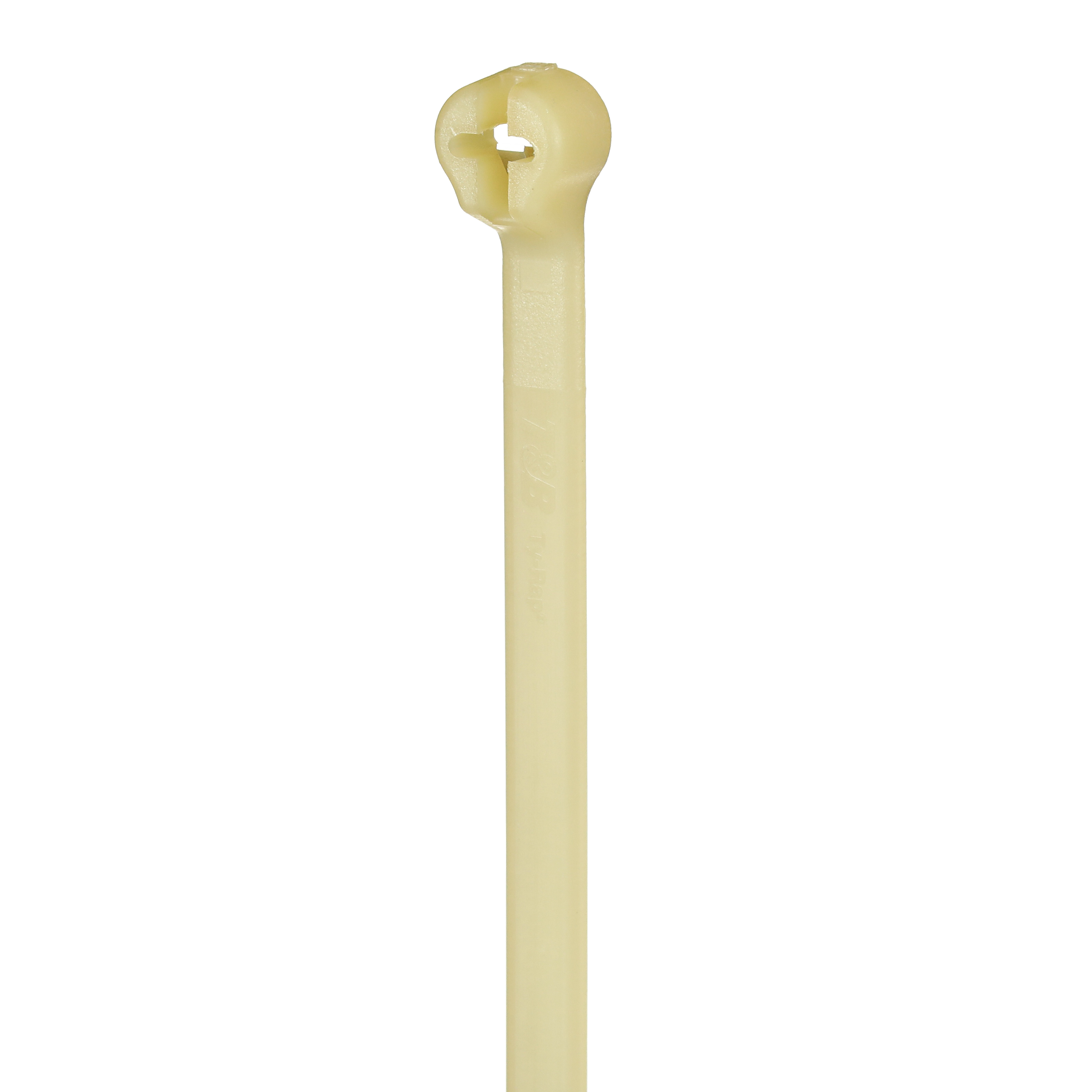

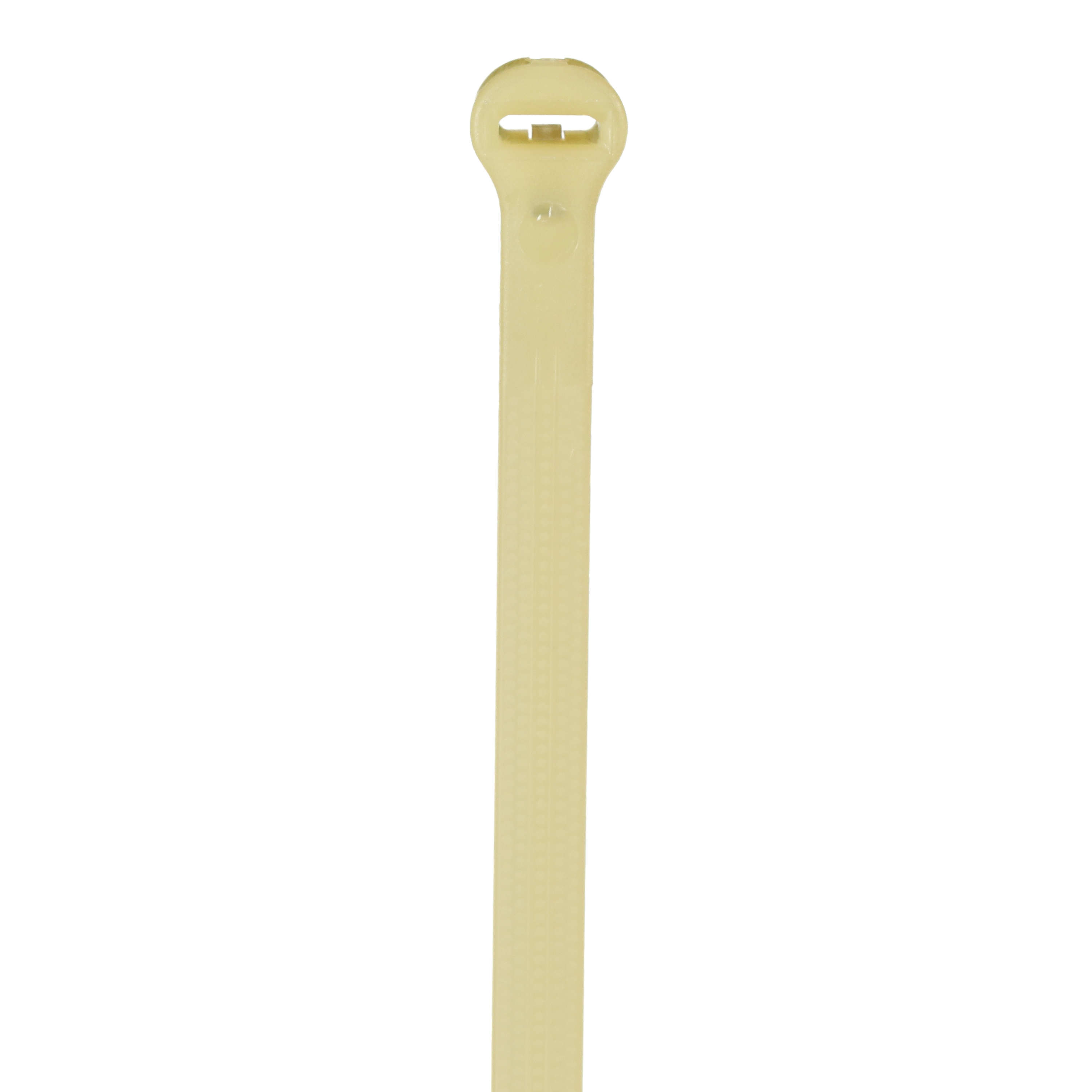

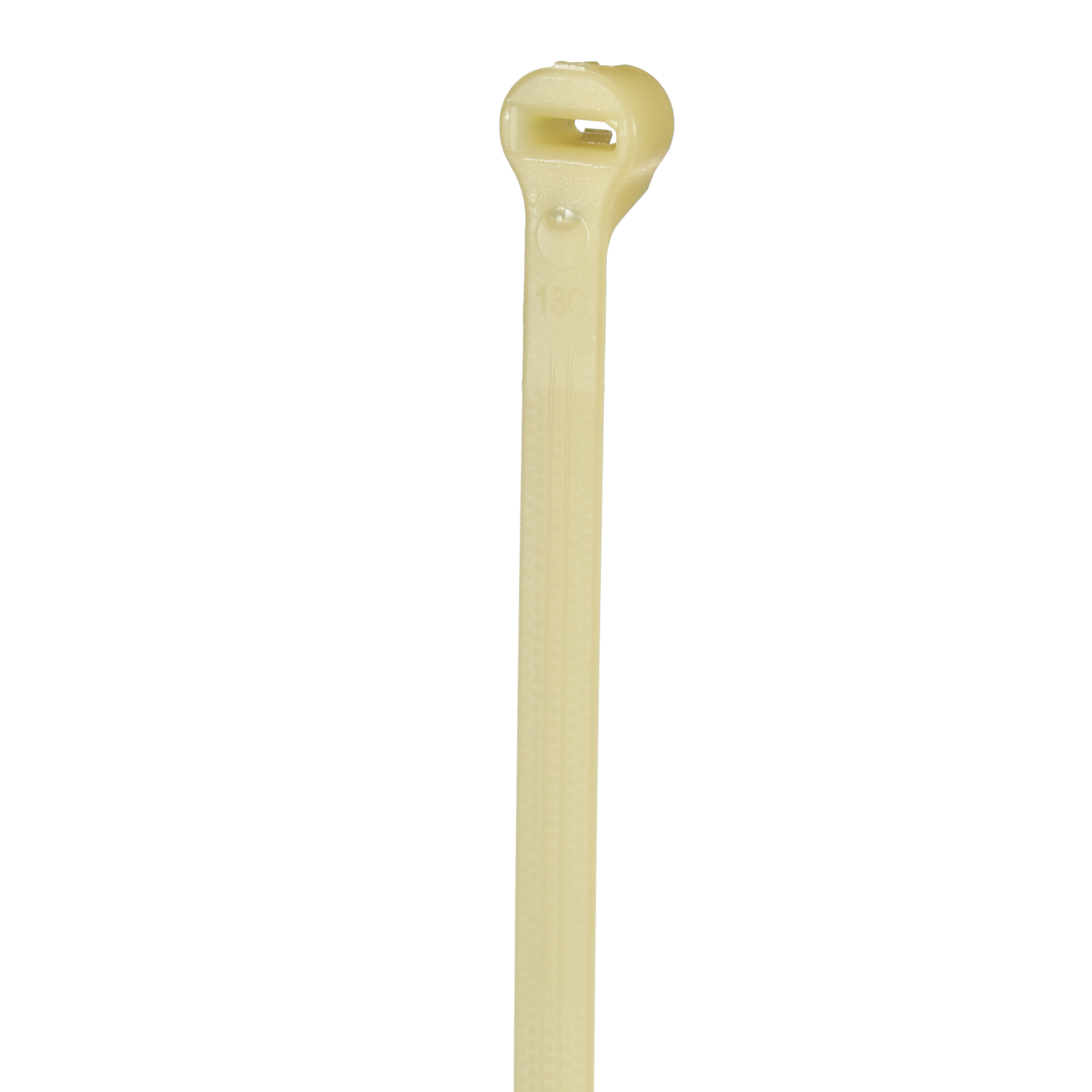

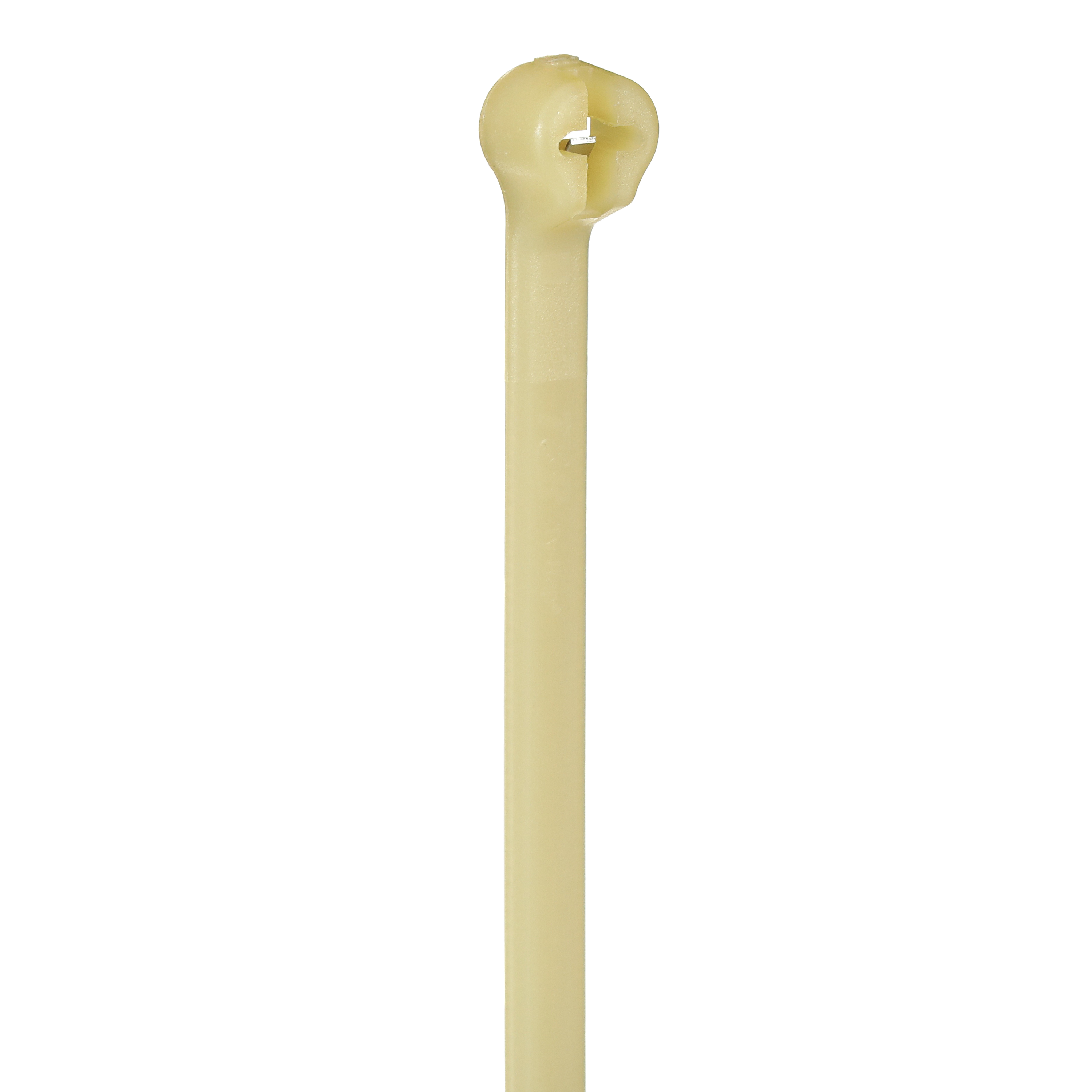

Extra High Temperature Cable Tie, Olive Polyamide (Nylon 4.6) for Temperatures up to 150 Degrees Celsius (302 F) for High Temperature Environments, Length of 92mm (3.6 Inches), Width of 2.3mm (0.09 Inches), Thickness of 1mm(0.04 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds)
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 15.30 ₽ | ≈1 мес. (45 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Европе | 22.92 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 23.47 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 23.57 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 25.31 ₽ | ≈1 мес. (59 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Китае | 25.91 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 26.01 ₽ | ≈1 мес. (45 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Европе | 27.66 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 30.54 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 31.26 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | United States |
| countryOfAssembly | United States |
| countryOfLastProcessing | United States |
| UPC | 786210952673 |
| Country of Origin | United States |
| Selling Unit of Measure | each |
| Product Net Width | 0.09 in, 2.3 mm |
| Product Net Depth / Length | 3.6 in, 92 mm |
| Package Level 1 Units | 1000 EA |
| Package Level 1 Width | 20.32 mm, 0.8 in |
| Package Level 1 Height | 254 mm, 10 in |
| Package Level 1 Depth / Length | 254 mm, 10 in |
| Package Level 2 Units | 10000 EA |
| Package Level 2 Width | 260.35 mm, 10.25 in |
| Package Level 2 Height | 228.6 mm, 9 in |
| Package Level 2 Depth / Length | 260.35 mm, 10.25 in |
| Package Level 3 Units | 800000 EA |
| Package Level 3 Width | 0.025 mm, 0.001 in |
| Package Level 3 Height | 0.025 mm, 0.001 in |
| Package Level 3 Depth / Length | 0.025 mm, 0.001 in |
| Flammability According to UL94 | V-2 |
| Brand / Label | Ty-Rap |
| Bundle Diameter | 0.062 to 0.787 in, 1.57 to 20 mm |
| Color | Olive |
| Effective Date | 20050406 |
| Lock Type | Stainless Steel Barb |
| Material | Nylon/Polyamide 4.6 |
| Product Name | Other |
| Product Type | Extra High Temperature |
| Special Functions | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | UL E49405 |
| Tensile Strength | 18 lb, 80 N |
| Thickness | 0.04 in, 1 mm |
| ETIM 7 | EC000046 - Cable tie |
| ETIM 8 | EC000046 - Cable tie |
| ETIM 9 | EC000046 - Cable tie |
| ETIM 10 | EC000046 - Cable tie |
| UNSPSC | 39121703 |
| IDEA Granular Category Code (IGCC) | 5034 >> Cable ties |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
| extended_product_type | TYHT23M |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
