Артикул: 7TAG009590R0009
· Производитель: ABB
· EAN: 5414363067450
7TAG009590R0009
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
66.35 ₽
срок ≈1 мес. (59 дн.)
Склад в Европе
60.10 ₽
срок ≈1 мес. (59 дн.)

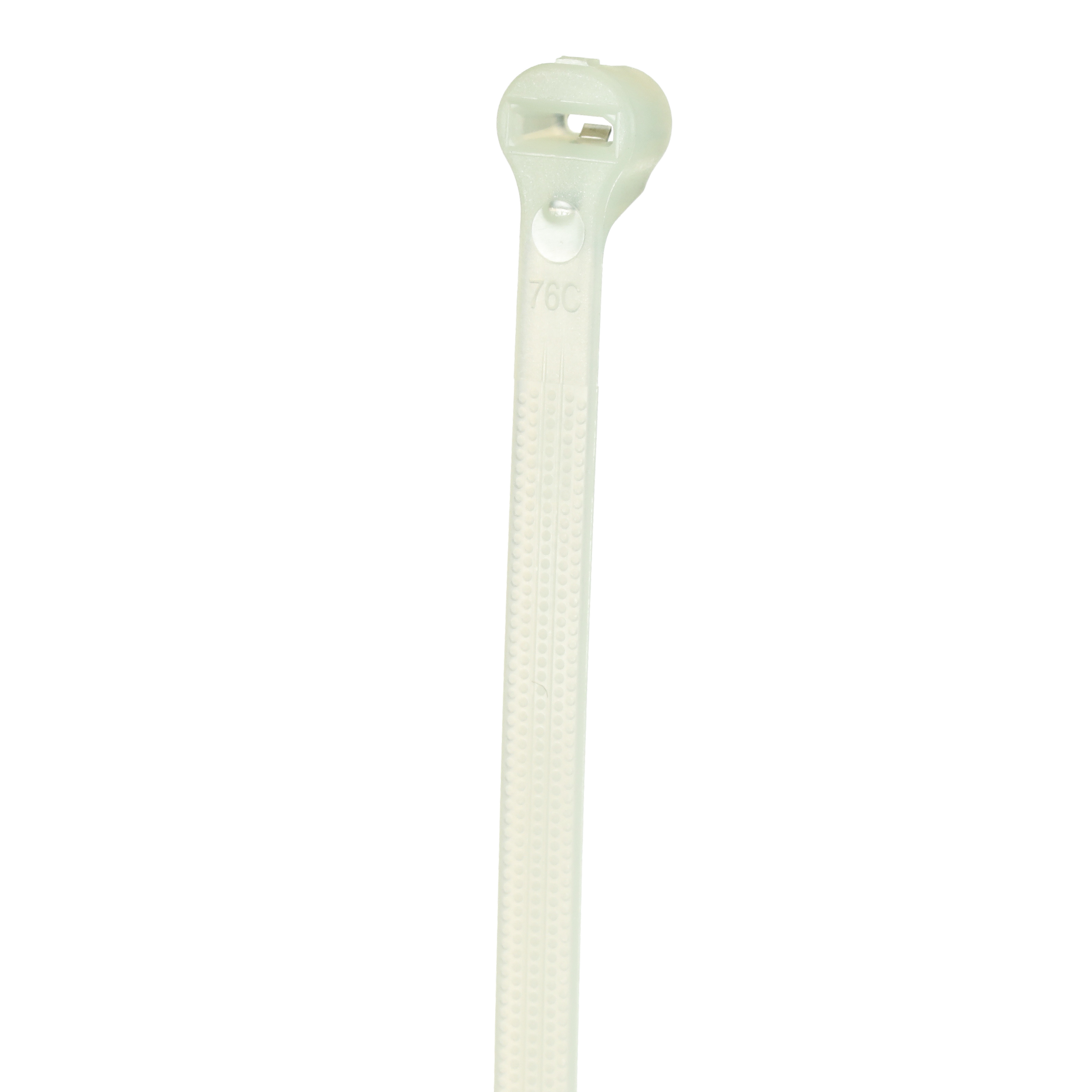

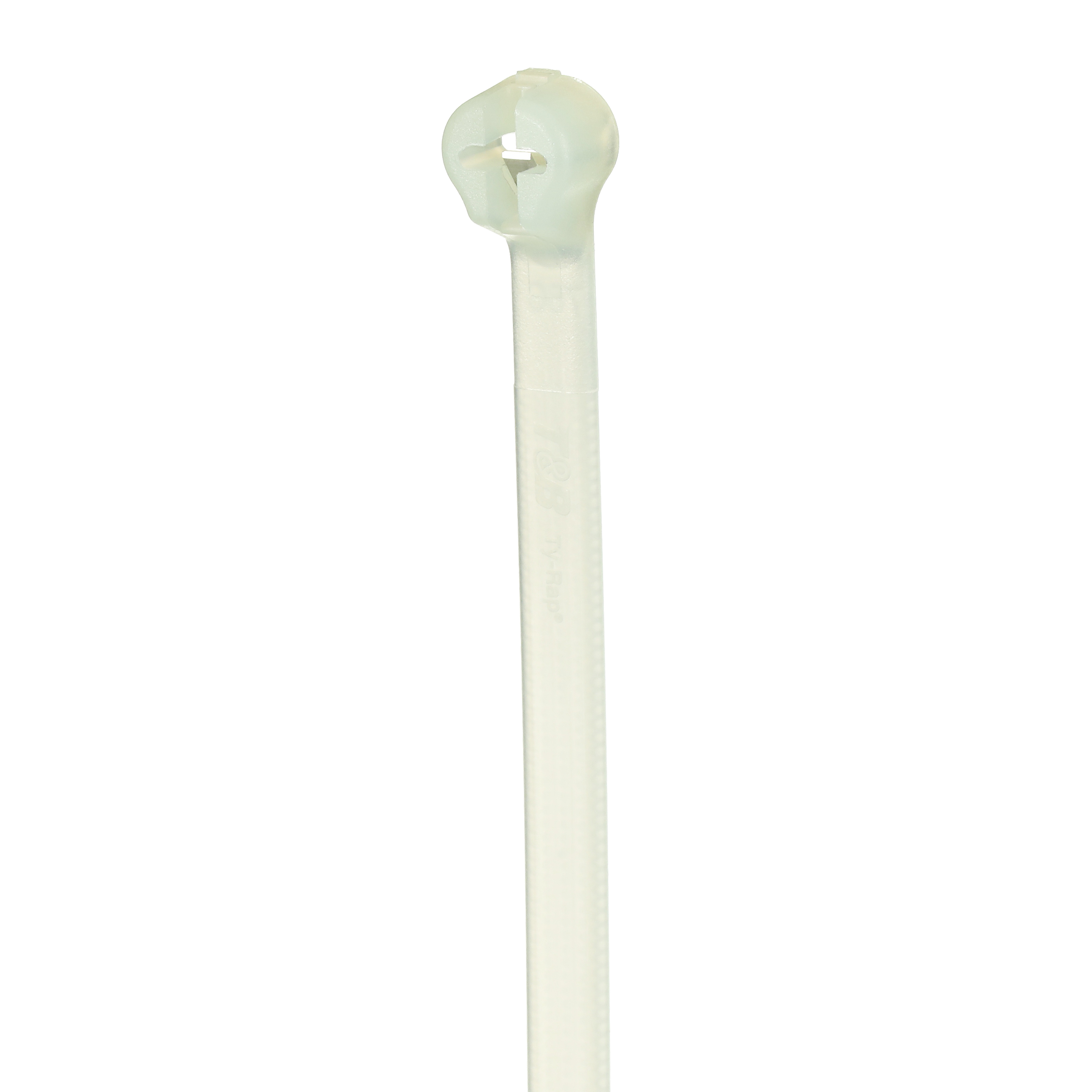

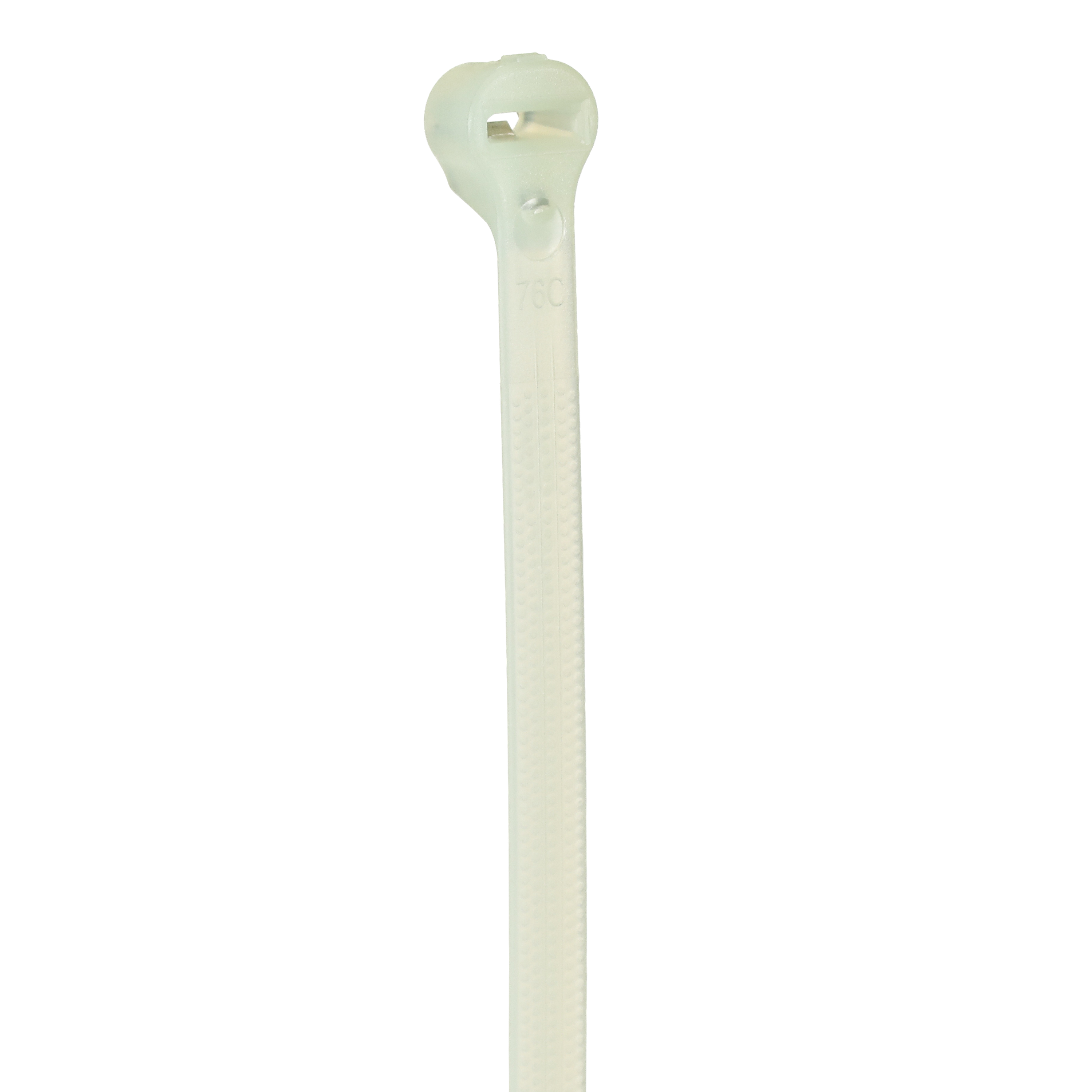

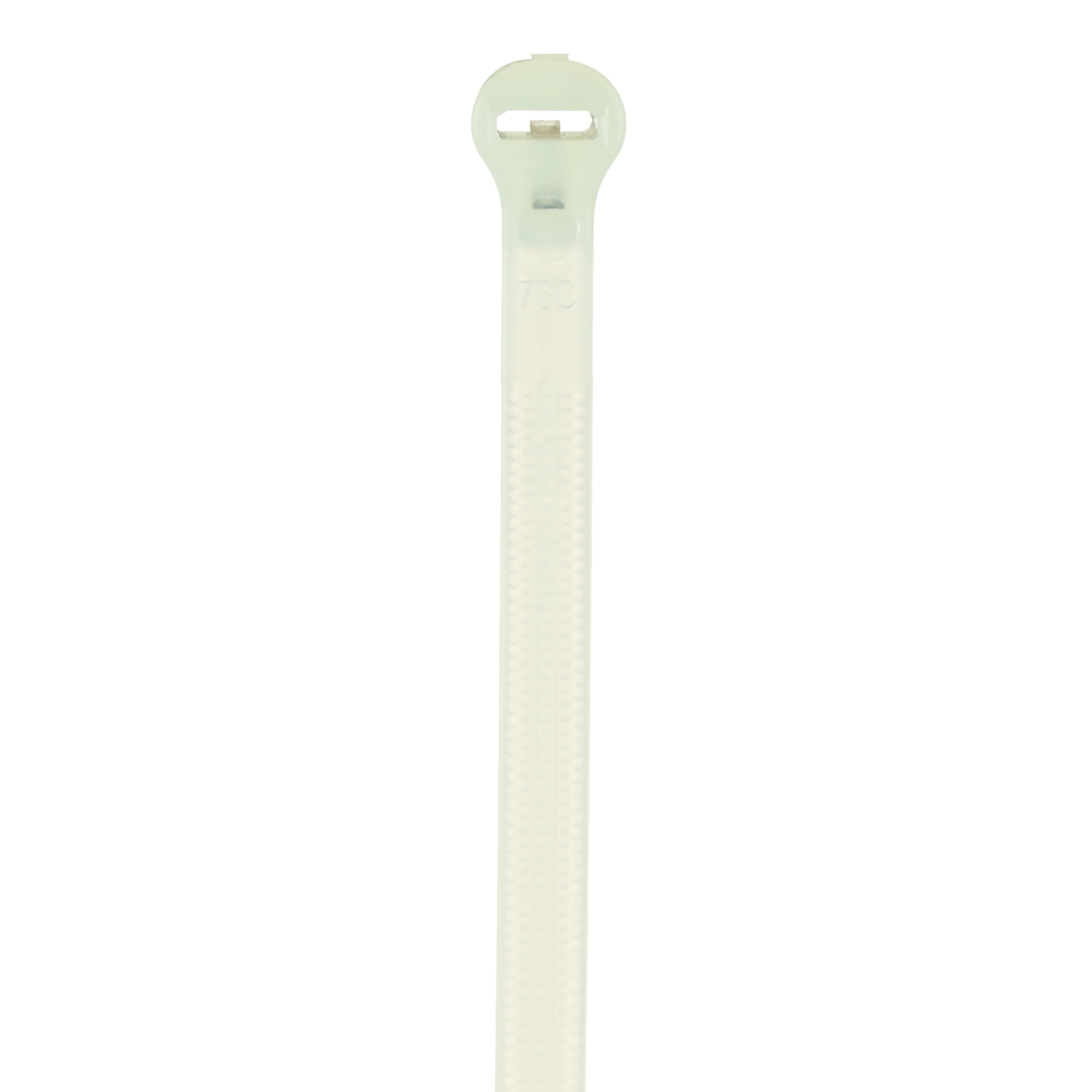

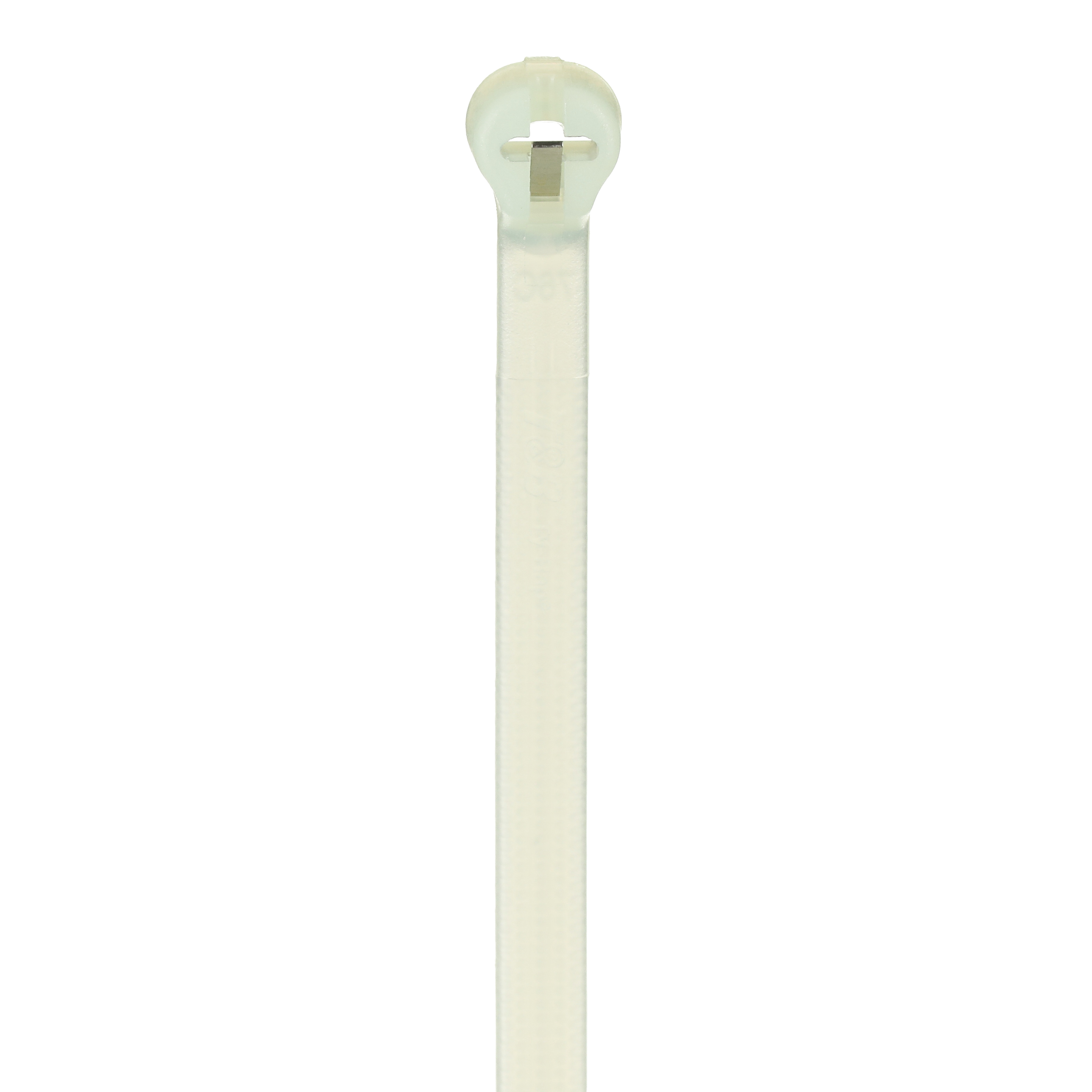

Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 60.10 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 60.75 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 66.35 ₽ | ≈1 мес. (59 дн.) | под заказ | от 500 шт. | Заказать |
| Склад в Китае | 67.06 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 73.83 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 81.50 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 82.10 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | United States |
| countryOfAssembly | United States |
| countryOfLastProcessing | United States |
| UPC | 786210810997 |
| Country of Origin | United States |
| Selling Unit of Measure | each |
| Product Net Width | 0.27 in, 6.9 mm |
| Product Net Depth / Length | 13.5 in, 343 mm |
| Package Level 1 Units | 500 EA |
| Package Level 1 Width | 355.6 mm, 14 in |
| Package Level 1 Height | 0 mm, 0 in |
| Package Level 1 Depth / Length | 508 mm, 20 in |
| Package Level 2 Units | 1000 EA |
| Package Level 2 Width | 246.38 mm, 9.7 in |
| Package Level 2 Height | 144.78 mm, 5.7 in |
| Package Level 2 Depth / Length | 393.7 mm, 15.5 in |
| Package Level 3 Units | 104000 EA |
| Package Level 3 Width | 0.025 mm, 0.001 in |
| Package Level 3 Height | 0.025 mm, 0.001 in |
| Package Level 3 Depth / Length | 0.025 mm, 0.001 in |
| Flammability According to UL94 | V-2 |
| Brand / Label | Ty-Rap |
| Bundle Diameter | Max 4.02 in, Max 102 mm |
| Color | Green Tint |
| Effective Date | 19800610 |
| Lock Type | Stainless Steel Barb |
| Material | Heat Stabilized Nylon |
| Product Name | Other |
| Product Type | Heat-Stabilized |
| Standards | UL E49405 |
| Tensile Strength | 120 lb, 534 N |
| Thickness | 0.06 in, 1.5 mm |
| ETIM 7 | EC000046 - Cable tie |
| ETIM 8 | EC000046 - Cable tie |
| ETIM 9 | EC000046 - Cable tie |
| ETIM 10 | EC000046 - Cable tie |
| UNSPSC | 39121703 |
| IDEA Granular Category Code (IGCC) | 5034 >> Cable ties |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
| extended_product_type | TYH27M |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
