Артикул: 7TAG009590R0006
· Производитель: ABB
· EAN: 5414363067412
7TAG009590R0006
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
15.93 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
14.43 ₽
срок ≈1 мес. (38 дн.)

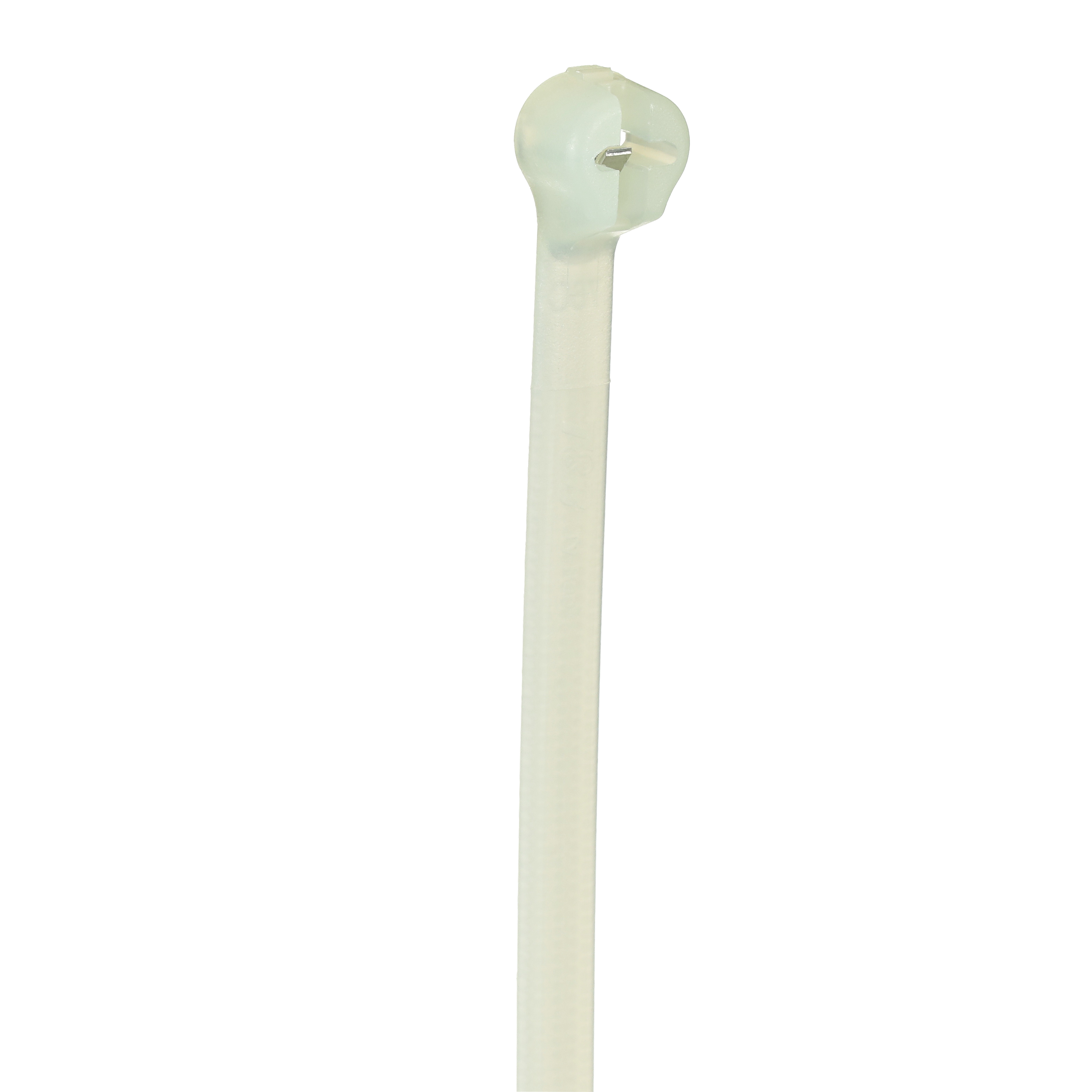

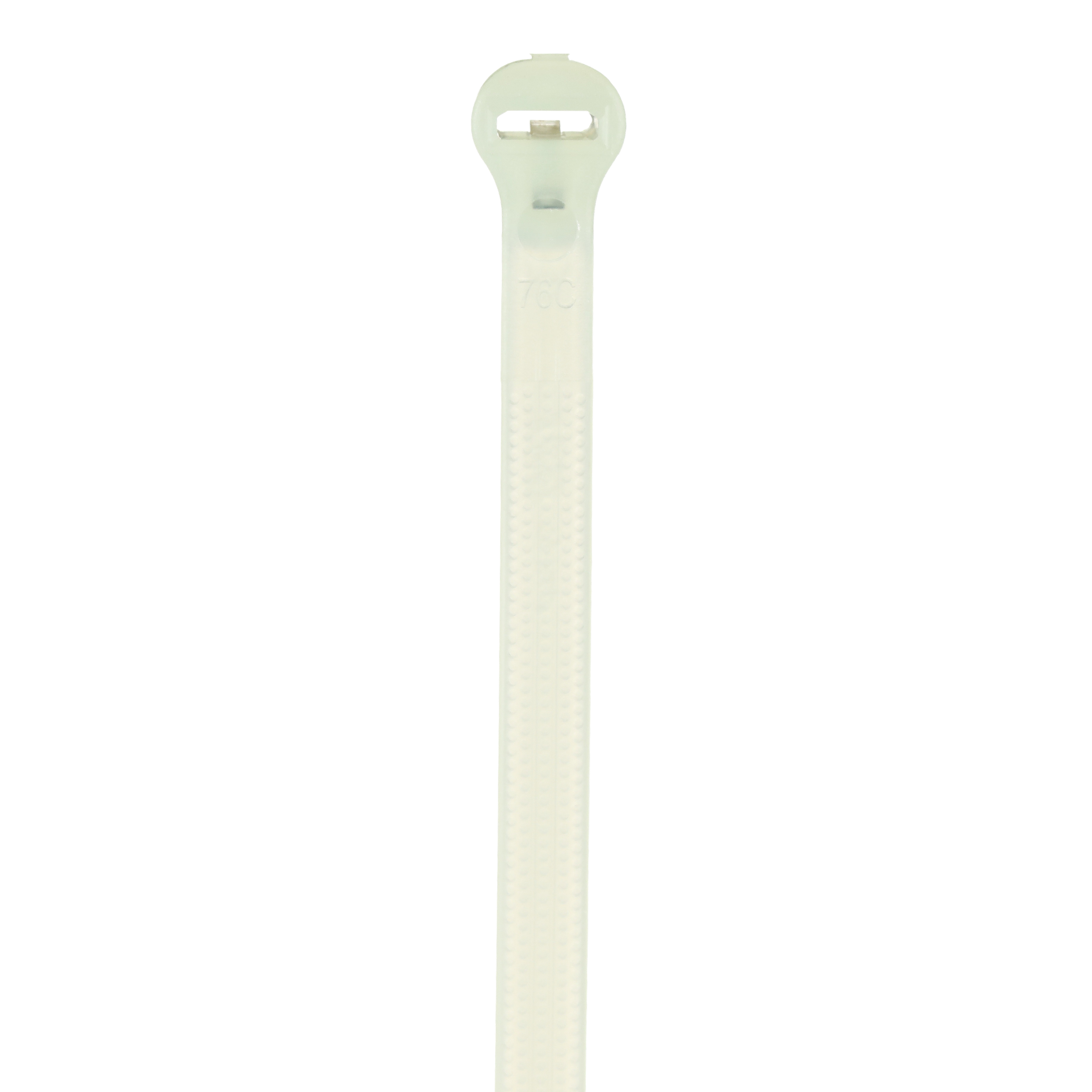

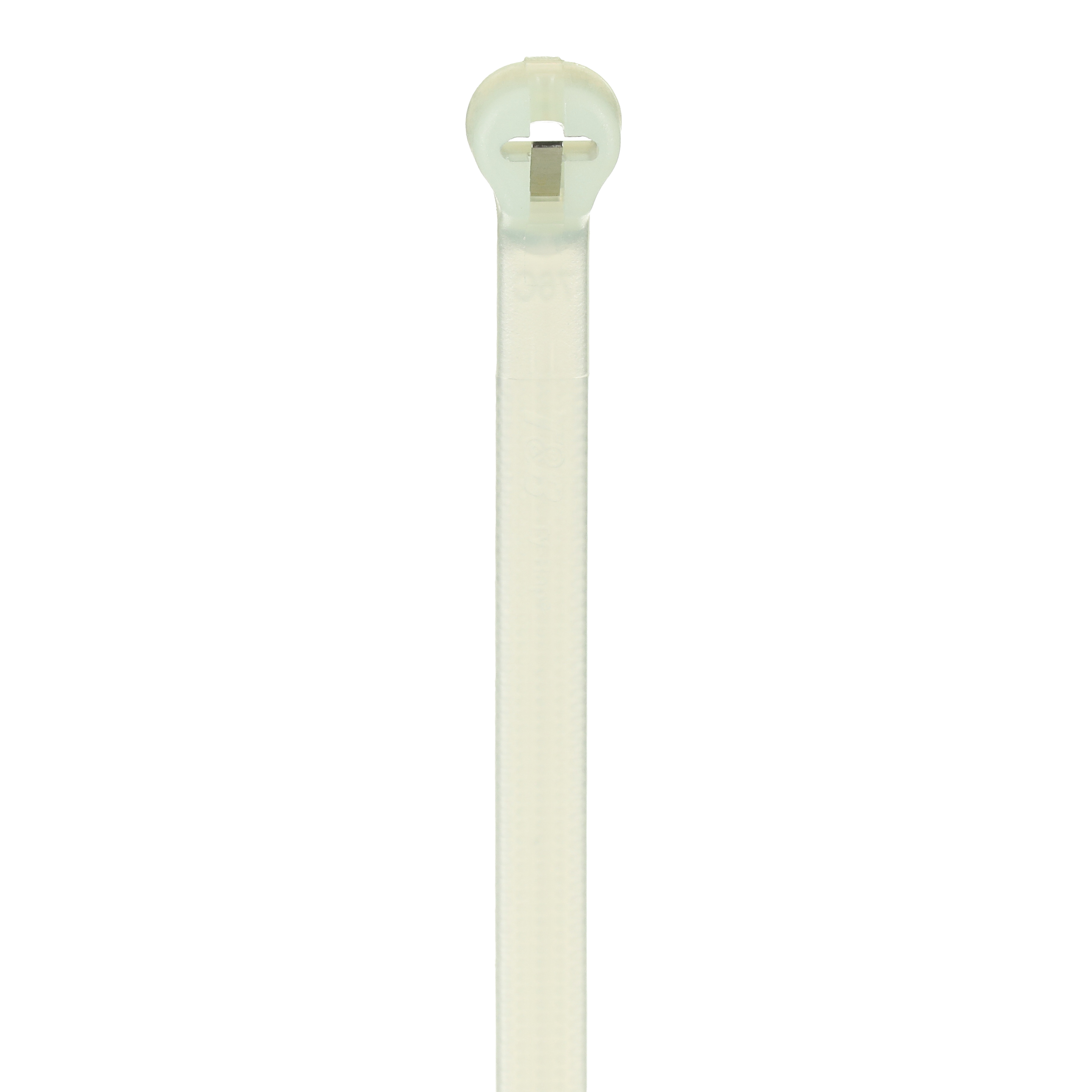

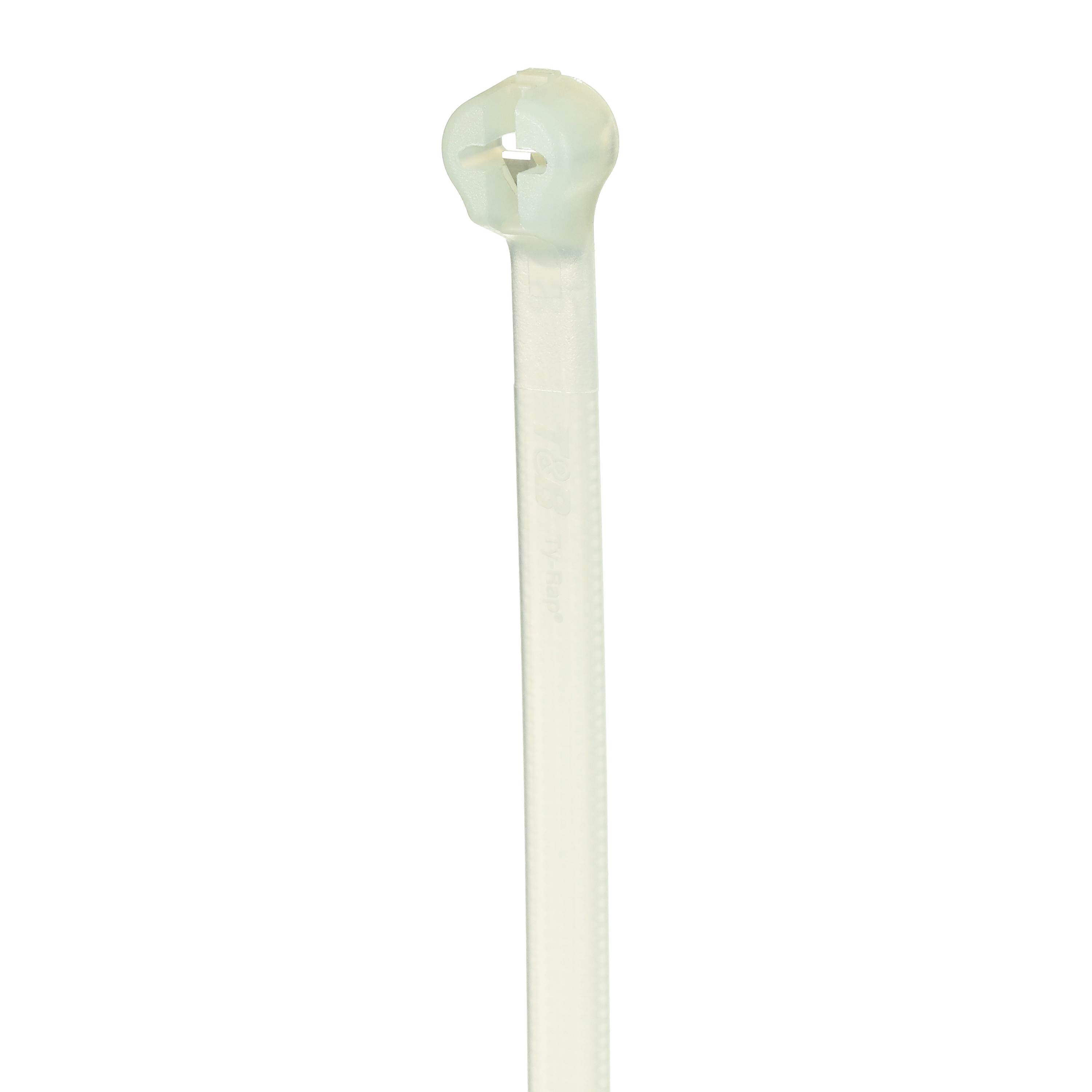

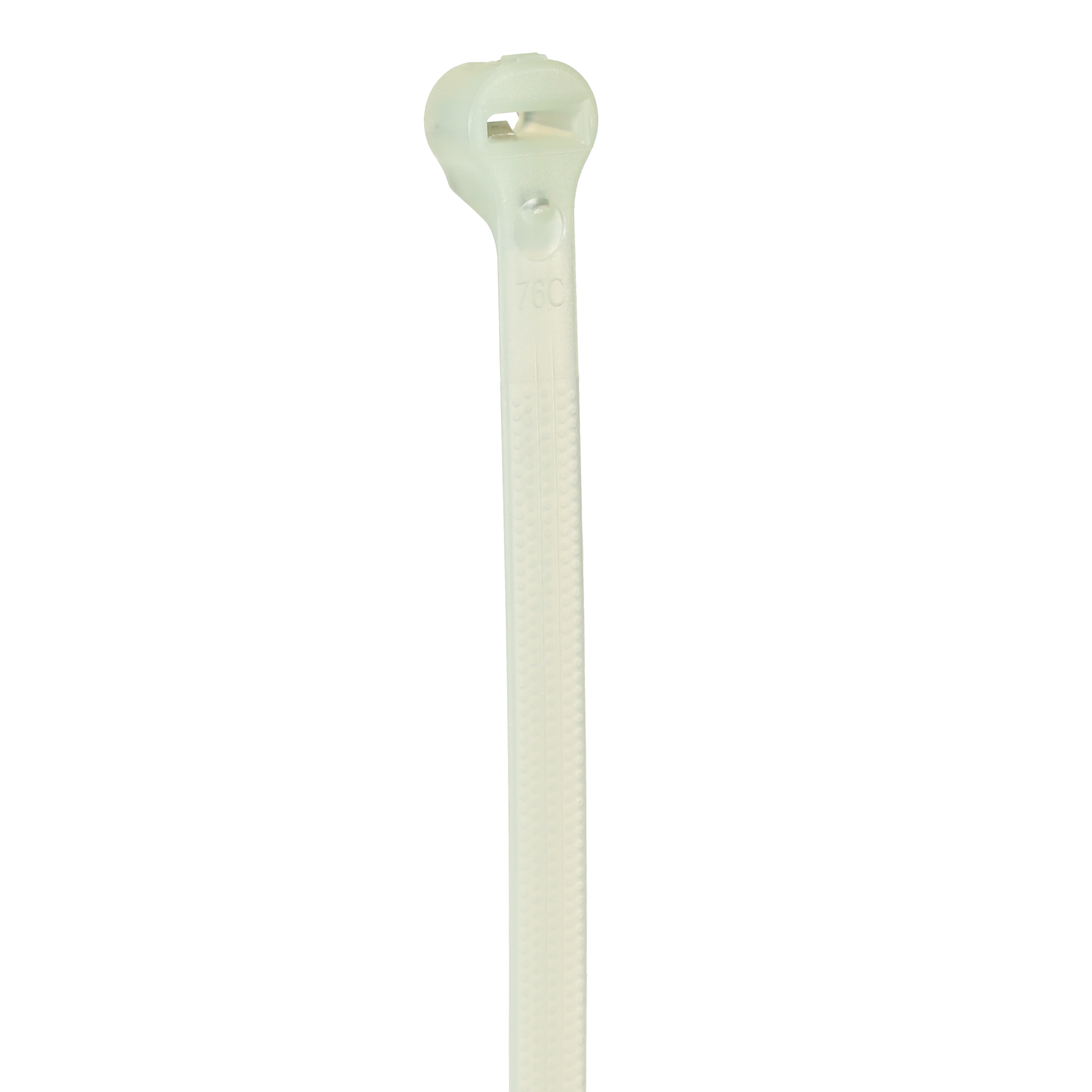

Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 185mm (7.3 Inches), Width of 4.7mm (0.18 Inch), Thickness of 1.3mm (0.05 Inch), Maximum Bundle Diameter 48mm (1.89 Inches), Tensile Strength Rating of 220 Newtons (49 Pounds)
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 14.43 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 15.93 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 16.41 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 17.28 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 18.11 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 19.07 ₽ | ≈1 мес. (59 дн.) | под заказ | от 1000 шт. | Заказать |
| Склад в Европе | 25.94 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | United States |
| countryOfAssembly | United States |
| countryOfLastProcessing | United States |
| UPC | 786210810973 |
| Country of Origin | United States |
| Selling Unit of Measure | each |
| Product Net Width | 0.18 in, 4.7 mm |
| Product Net Depth / Length | 7.3 in, 185 mm |
| Package Level 1 Units | 1000 EA |
| Package Level 1 Width | 0 mm, 0 in |
| Package Level 1 Height | 0 mm, 0 in |
| Package Level 1 Depth / Length | 0 mm, 0 in |
| Package Level 2 Units | 10000 EA |
| Package Level 2 Width | 370.84 mm, 14.6 in |
| Package Level 2 Height | 347.98 mm, 13.7 in |
| Package Level 2 Depth / Length | 490.22 mm, 19.3 in |
| Package Level 3 Units | 60000 EA |
| Package Level 3 Width | 0 mm, 0 in |
| Package Level 3 Height | 0 mm, 0 in |
| Package Level 3 Depth / Length | 0 mm, 0 in |
| Flammability According to UL94 | V-2 |
| Brand / Label | Ty-Rap |
| Bundle Diameter | Max 1.89 in, Max 48 mm |
| Color | Green |
| Effective Date | 19800610 |
| Lock Type | Stainless Steel Barb |
| Material | Nylon/Polyamide 6.6 |
| Product Name | Other |
| Product Type | Heat-Stabilized |
| Standards | UL E49405 |
| Tensile Strength | 49 lb, 220 N |
| Thickness | 0.05 in, 1.3 mm |
| ETIM 7 | EC000046 - Cable tie |
| ETIM 8 | EC000046 - Cable tie |
| ETIM 9 | EC000046 - Cable tie |
| ETIM 10 | EC000046 - Cable tie |
| UNSPSC | 39121703 |
| IDEA Granular Category Code (IGCC) | 5034 >> Cable ties |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
| extended_product_type | TYH25M |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
