Артикул: 7TAG009280R0003
· Производитель: ABB
· EAN: 5414363065944
7TAG009280R0003
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
98.68 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
137.62 ₽
срок ≈4 мес. (122 дн.)

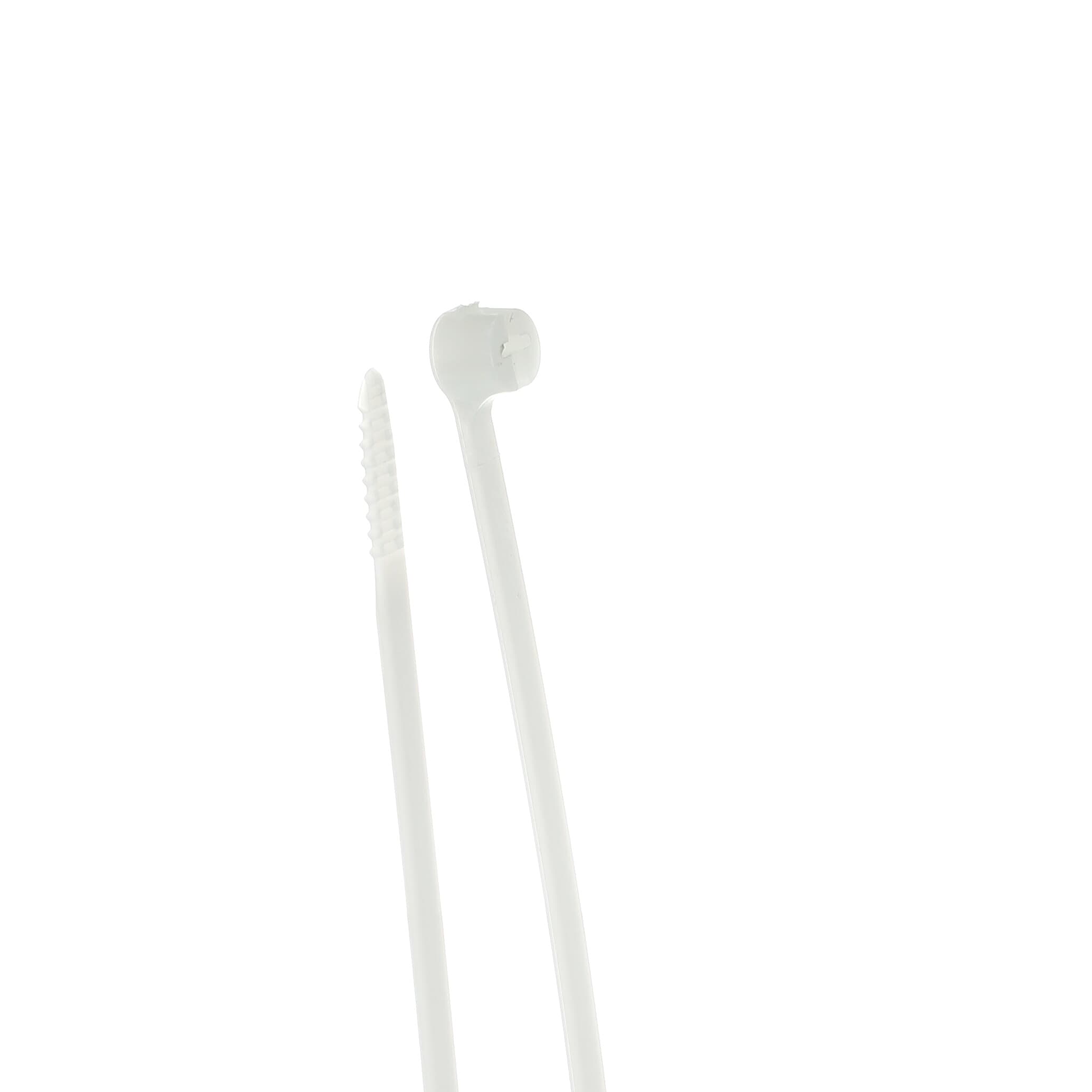

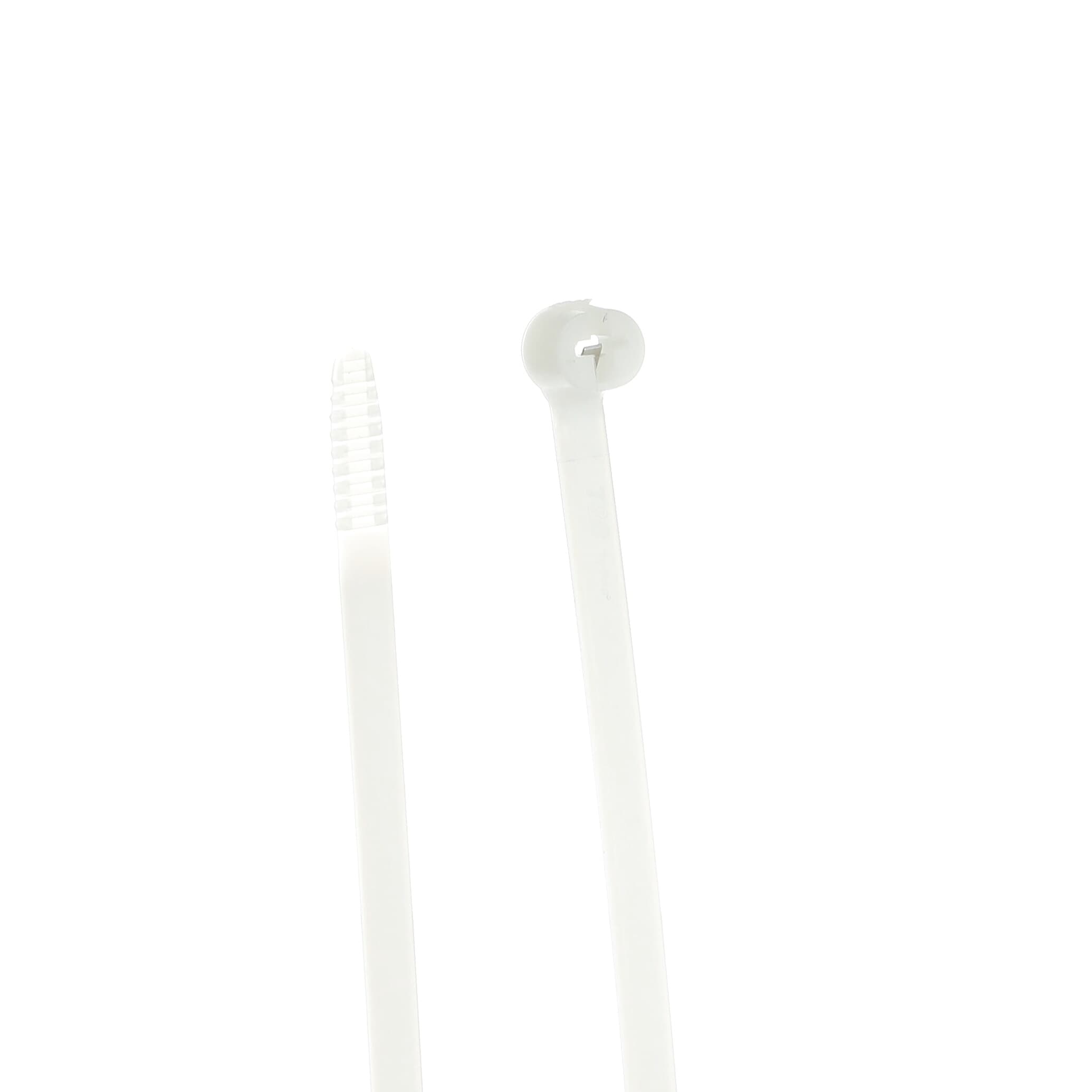

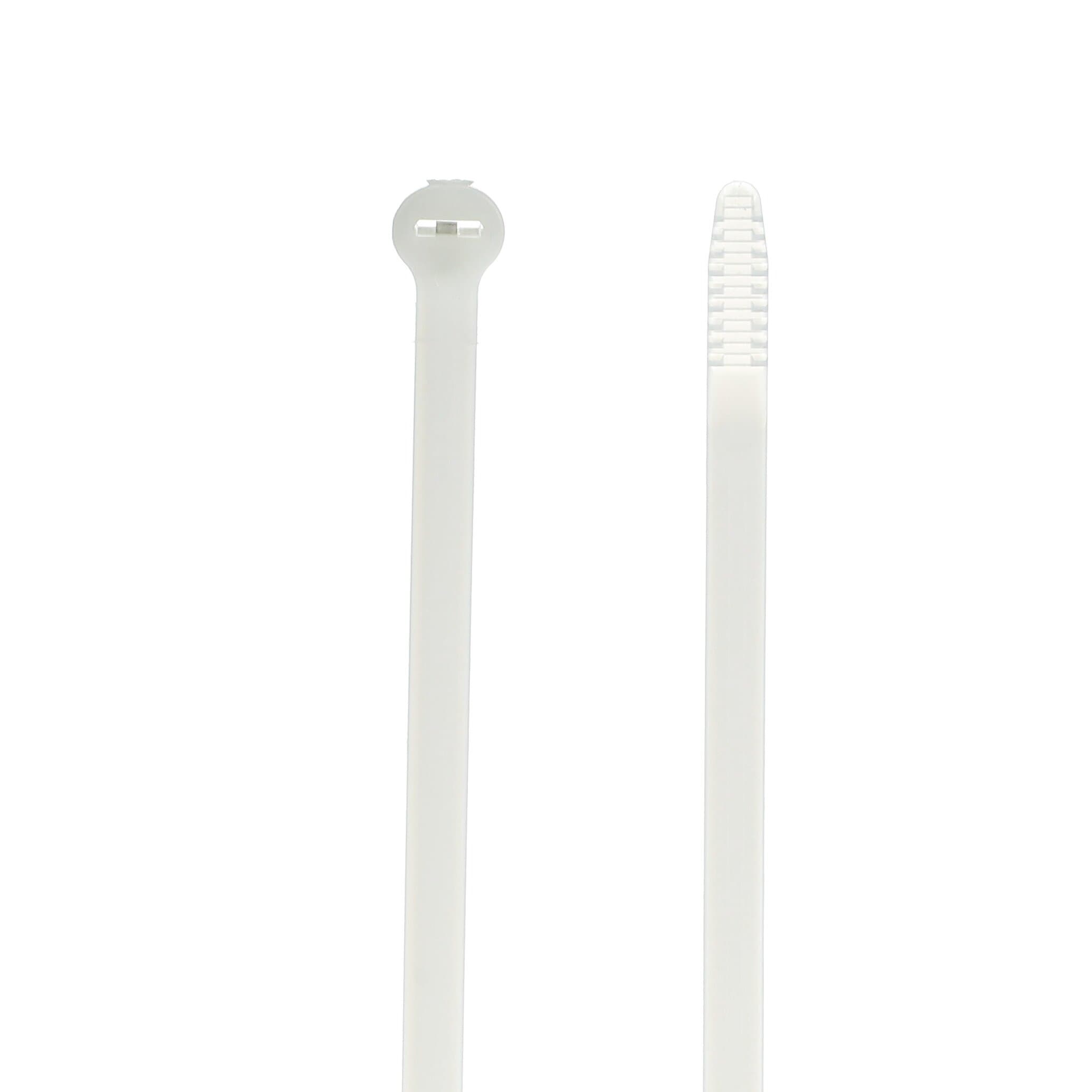

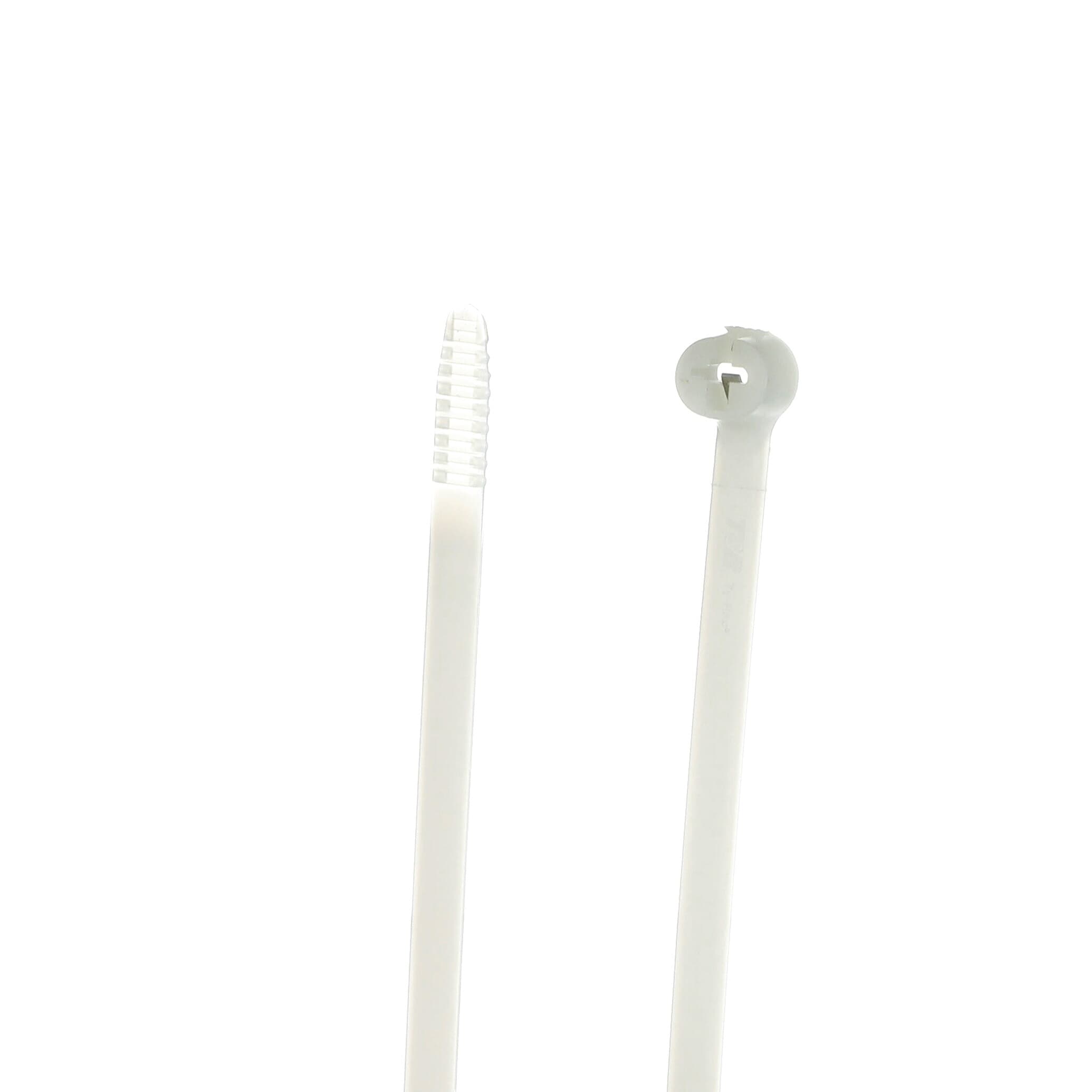

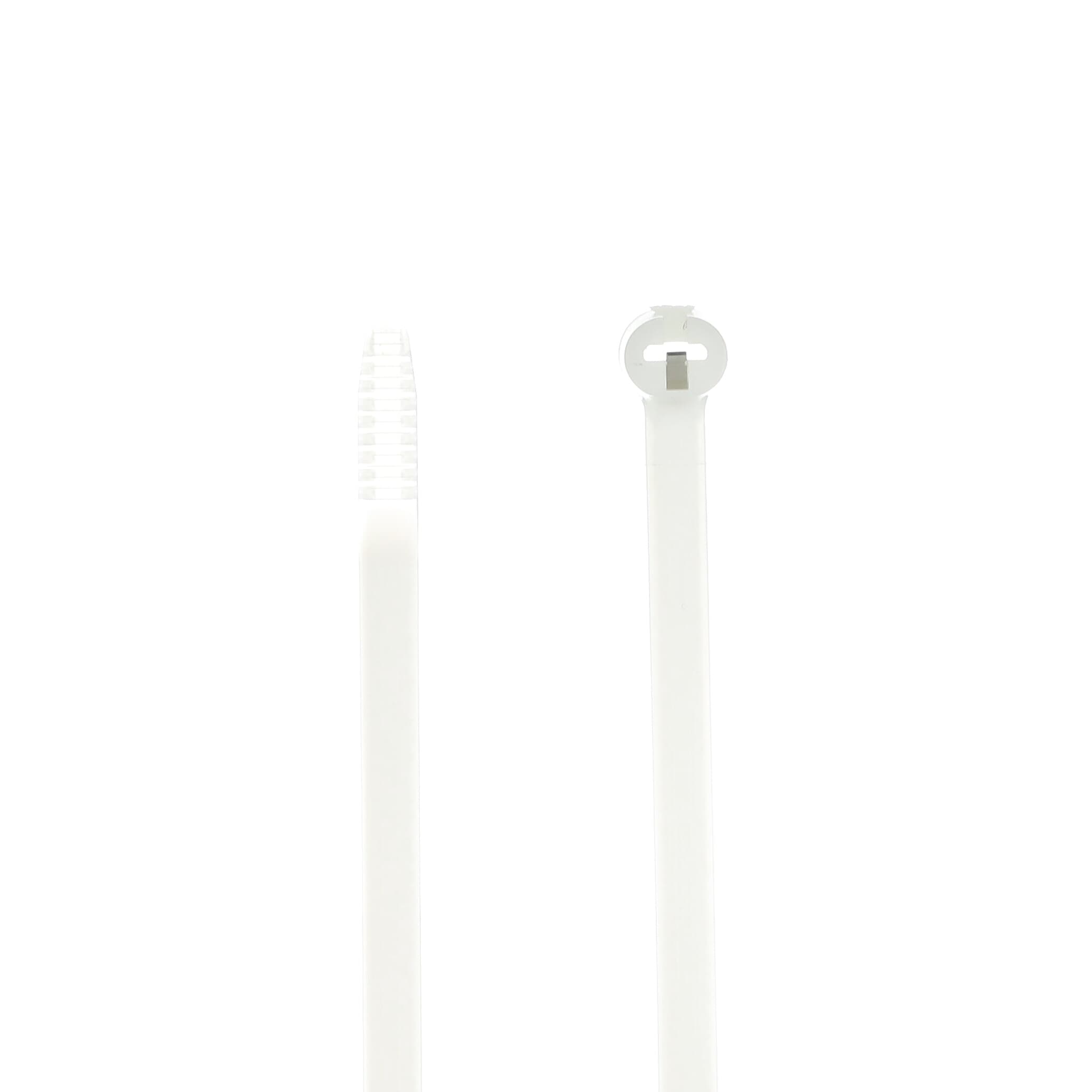

Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 770.61mm (30.34 Inches), Width of 6.93mm (0.273 Inches), Thickness of 1.52mm (0.06 Inches), Tensile Strength Rating of 534 Newtons (120 pounds)
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 98.68 ₽ | ≈2 мес. (73 дн.) | под заказ | от 500 шт. | Заказать |
| Склад в Европе | 137.62 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 151.92 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 151.97 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 167.21 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 167.76 ₽ | ≈2 мес. (73 дн.) | под заказ | от 500 шт. | Заказать |
| Склад в Китае | 184.58 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 188.31 ₽ | ≈1 мес. (45 дн.) | под заказ | от 500 шт. | Заказать |
| Склад в Европе | 212.34 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 225.93 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 234.40 ₽ | ≈1 мес. (59 дн.) | под заказ | от 500 шт. | Заказать |
| Склад в Европе | 290.00 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 320.13 ₽ | ≈1 мес. (45 дн.) | под заказ | от 500 шт. | Заказать |
Характеристики
| countryOfOrigin | United States |
| countryOfAssembly | United States |
| countryOfLastProcessing | United States |
| ABB EcoSolutions | Yes |
| E-Number (Finland) | 1381534 |
| UPC | 786210830735 |
| Country of Origin | United States |
| Selling Unit of Measure | each |
| Product Net Width | 0.273 in, 6.93 mm |
| Product Net Depth / Length | 30.34 in, 770.61 mm |
| Package Level 1 Units | 50 EA |
| Package Level 1 Width | 152.4 mm, 6 in |
| Package Level 1 Height | 0 mm, 0 in |
| Package Level 1 Depth / Length | 914.4 mm, 36 in |
| Package Level 2 Units | 500 EA |
| Package Level 2 Width | 158.75 mm, 6.25 in |
| Package Level 2 Height | 120.65 mm, 4.75 in |
| Package Level 2 Depth / Length | 869.95 mm, 34.25 in |
| Package Level 3 Units | 24500 EA |
| Package Level 3 Width | 0 mm, 0 in |
| Package Level 3 Height | 0 mm, 0 in |
| Package Level 3 Depth / Length | 0 mm, 0 in |
| Flammability According to UL94 | V-2 |
| Brand / Label | Ty-Rap |
| Bundle Diameter | 0.236 to 9.01 in, 6 to 229 mm |
| Color | Natural |
| Effective Date | 19680502 |
| Lock Type | Stainless Steel Barb |
| Material | Nylon/Polyamide 6.6 |
| Product Name | Other |
| Product Type | High Performance |
| Special Functions | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | UL E49405 |
| Tensile Strength | 120 lb, 530 N |
| Thickness | 0.06 in, 1.52 mm |
| ETIM 7 | EC000046 - Cable tie |
| ETIM 8 | EC000046 - Cable tie |
| ETIM 9 | EC000046 - Cable tie |
| ETIM 10 | EC000046 - Cable tie |
| UNSPSC | 39121703 |
| IDEA Granular Category Code (IGCC) | 5034 >> Cable ties |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
| extended_product_type | TY529M |
| category_paths | Products > Low Voltage Products and Systems > Installation Products > Wire Management and Connectivity > Cable Ties > Performance Cable Ties and Accessories |
