Артикул: 50116386
· Производитель: Leuze
50116386
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
149 436.31 ₽
срок ≈2 мес. (66 дн.)
Склад в Европе
230 131.92 ₽
срок ≈2 мес. (66 дн.)

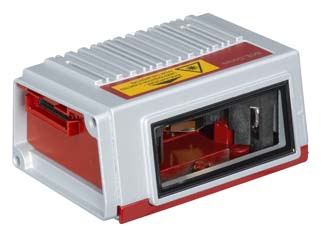

Stationary bar code reader
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 149 436.31 ₽ | ≈2 мес. (66 дн.) | под заказ | — | Заказать |
| Склад в Европе | 230 131.92 ₽ | ≈2 мес. (66 дн.) | под заказ | — | Заказать |
| Склад в Китае | 254 041.73 ₽ | ≈2 мес. (66 дн.) | под заказ | — | Заказать |
Характеристики
| Series | BCL 300i |
| Functions | Alignment modeAutoConfigAutoControlAutoReflActCode fragment technologyLED indicatorReference code comparison |
| Code types, readable | 2/5 InterleavedCodabarCode 39Code 93Code 128EAN 8/13GS1 Databar ExpandedGS1 Databar LimitedGS1 Databar OmnidirectionalUPC |
| Scanning rate, typical | 1,000 scans/s |
| Bar codes per reading gate, max. number | 64 Piece(s) |
| Reading distance | 60 ... 320 mm |
| Light source | Laser, Red |
| Wavelength | 655 nm |
| Laser class | 1, IEC/EN 60825-1:2014 |
| Modulus size | 0.2 ... 0.5 mm |
| Reading method | Raster scanner |
| Beam deflection | Via rotating polygon wheel |
| Light beam exit | Front |
| Supply voltage UB | 18 ... 30 V, DC |
| Power consumption, max. | 4.5 W |
| Number of inputs/outputs selectable | 2 Piece(s) |
| Input current, max. | 8 mA |
| Type | Ethernet |
| Architecture | ClientServer |
| Address assignment | DHCPManual address assignment |
| Function | BUS INBUS OUTConnection to deviceData interfacePWR / SW IN / OUTService interface |
| Switch functionality | Integrated |
| Transmission protocol | TCP/IP , UDP |
| Number of connections | 1 Piece(s) |
| Type of connection | Plug connector, It is essential to use a connection unit when commissioning the device. |
| No. of pins | 32 -pin |
| Design | Cubic |
| Dimension (W x H x L) | 95 mm x 44 mm x 68 mm |
| Housing material | Metal |
| Metal housing | Diecast aluminum |
| Lens cover material | Glass |
| Net weight | 270 g |
| Housing color | RedSilver |
| Type of fastening | Dovetail groovesFastening on backVia optional mounting device |
| Type of display | LEDMonochromatic graphic display, 128 x 32 pixels |
| Number of LEDs | 2 Piece(s) |
| Type of configuration | Via web browser |
| Ambient temperature, operation | 0 ... 40 °C |
| Ambient temperature, storage | -20 ... 70 °C |
| Relative humidity (non-condensing) | 0 ... 90 % |
| Degree of protection | IP 65 |
| Protection class | III |
| Approvals | c UL US |
| Test procedure for EMC in accordance with standard | EN 55022EN 61000-4-2, -3, -4, -6 |
| Test procedure for shock in accordance with standard | IEC 60068-2-27, test Ea |
| Test procedure for continuous shock in accordance with standard | IEC 60068-2-29, test Eb |
| Test procedure for vibration in accordance with standard | IEC 60068-2-6, test Fc |
| Customs tariff number | 84719000 |
| ECLASS 5.1.4 | 27280102 |
| ECLASS 8.0 | 27280102 |
| ECLASS 9.0 | 27280102 |
| ECLASS 10.0 | 27280102 |
| ECLASS 11.0 | 27280102 |
| ECLASS 12.0 | 27280102 |
| ECLASS 13.0 | 27280102 |
| ECLASS 14.0 | 27280102 |
| ECLASS 15.0 | 27280102 |
| ECLASS 16.0 | 27280102 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
