Артикул: 1SZE550800B0160
· Производитель: ABB
· EAN: 3800161600869
1SZE550800B0160
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
103 892.28 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
94 114.18 ₽
срок ≈1 мес. (38 дн.)

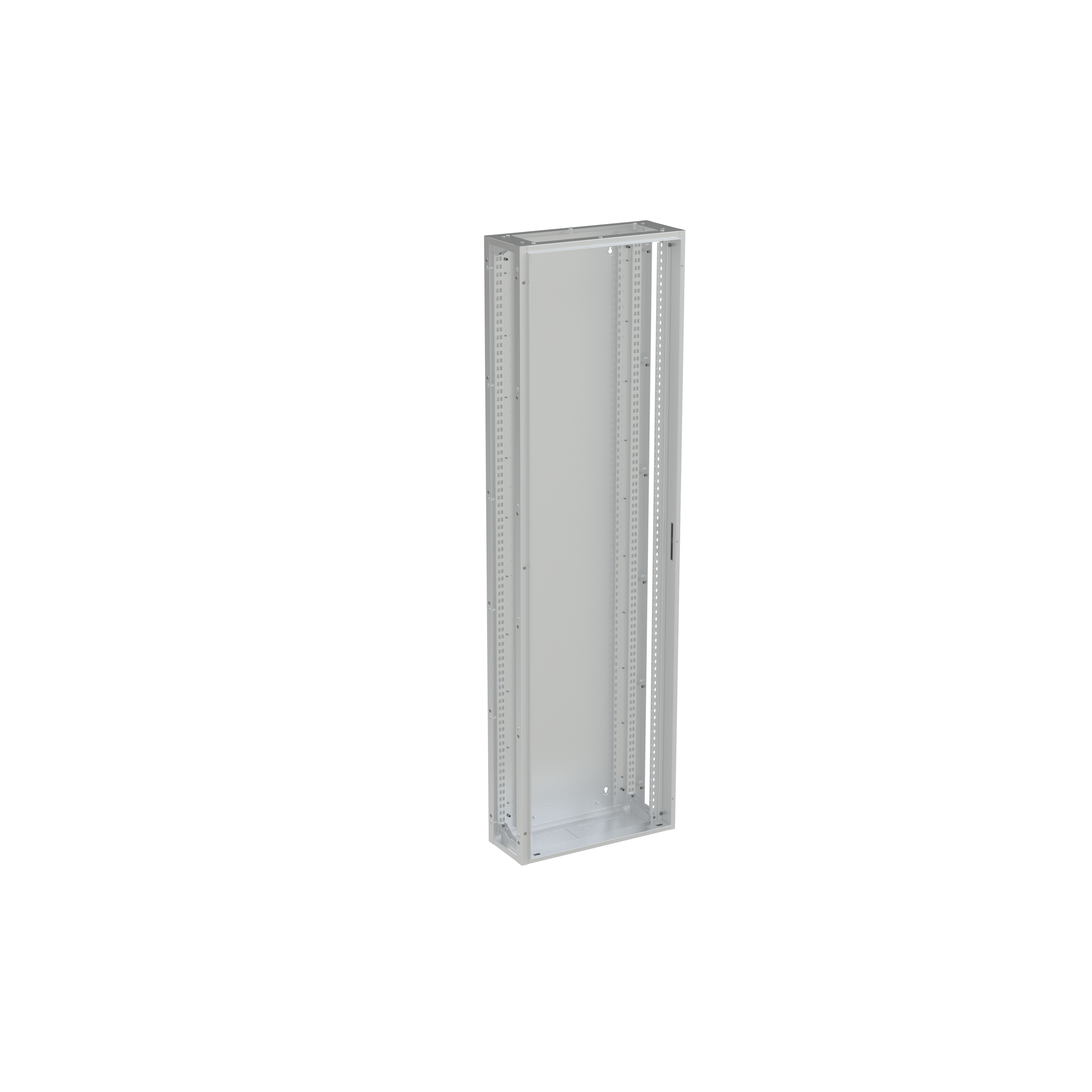

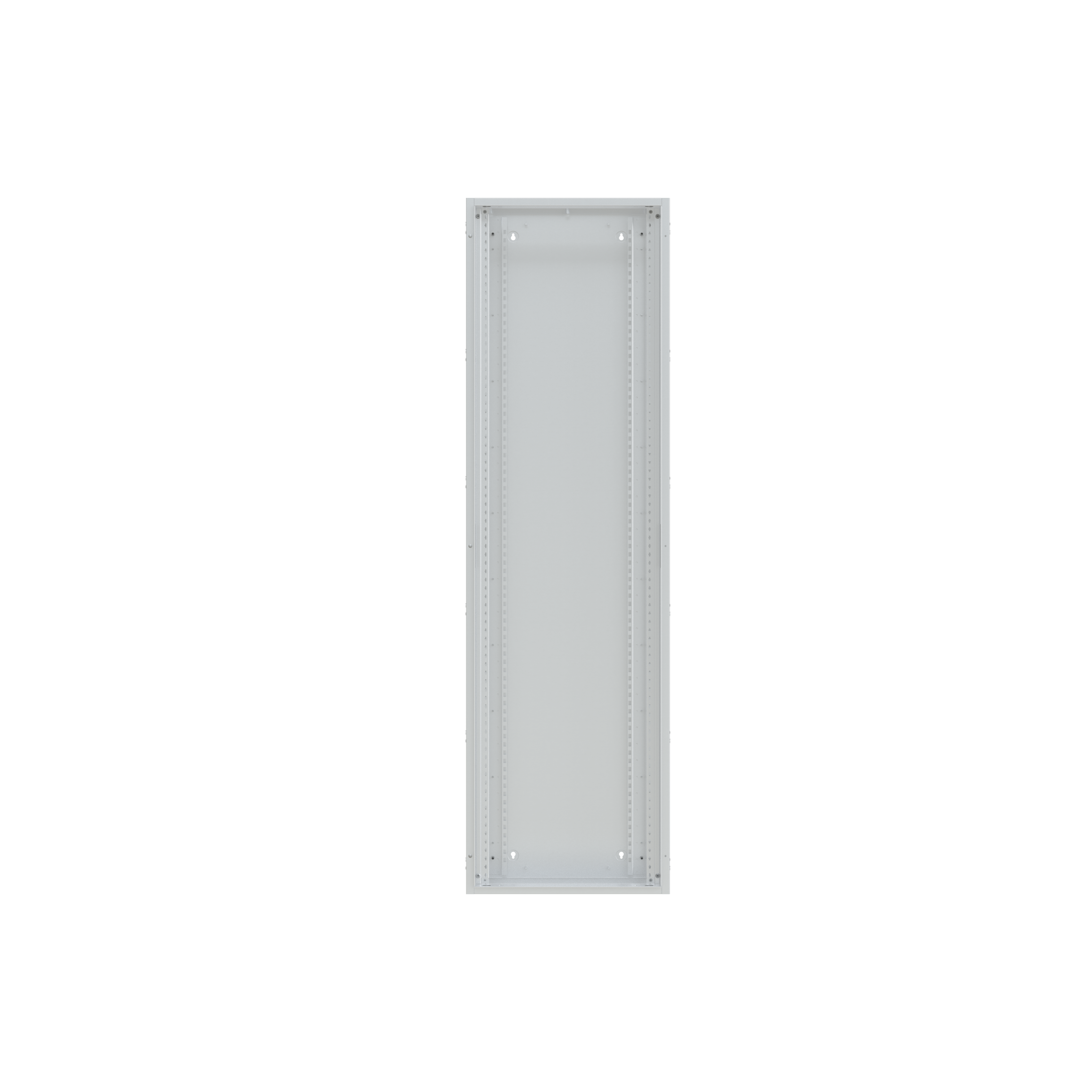

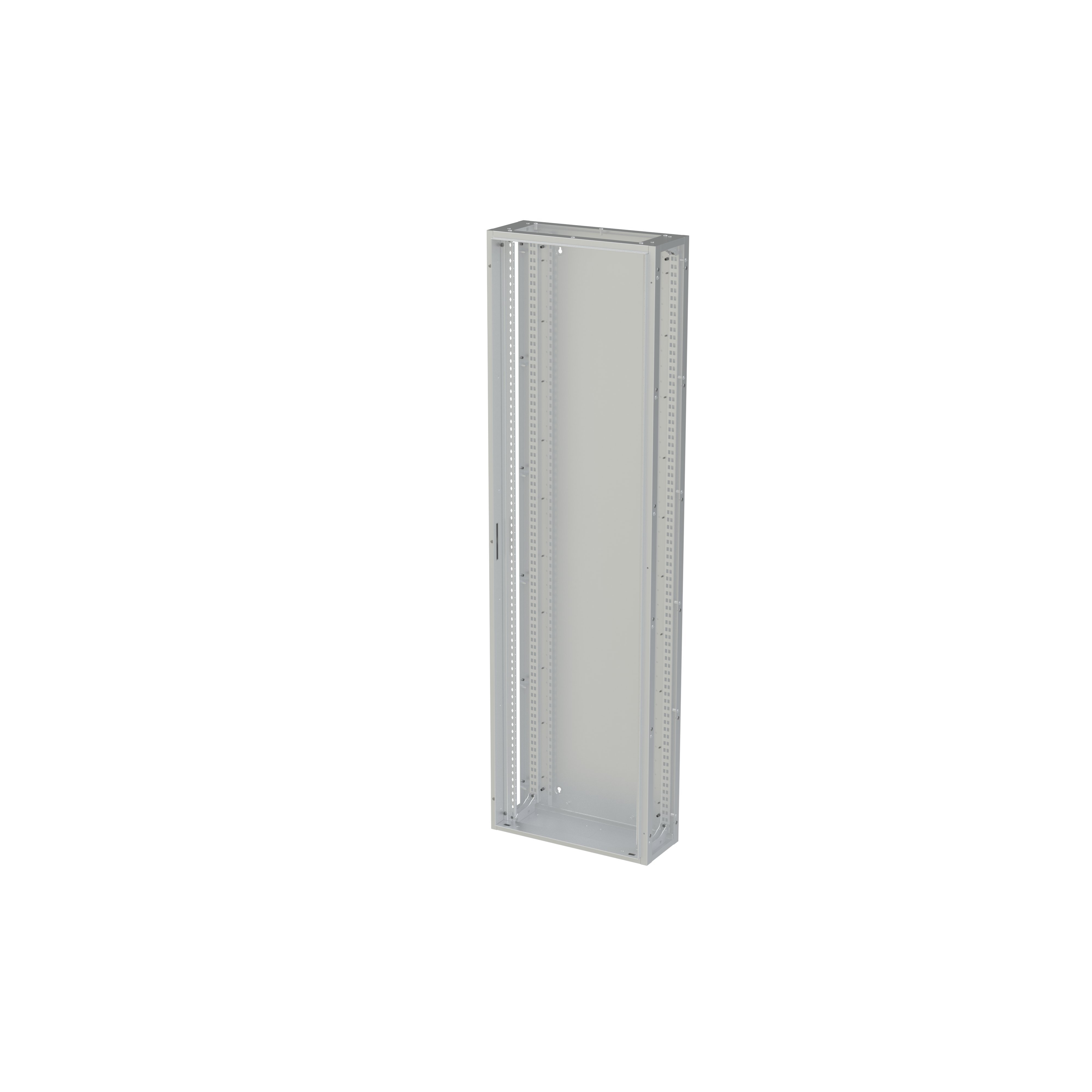

Floor standing cabinet, Type System pro E energy M, Basic structure, Mountingtype: Wallhanging, for indoor installation, Flatpack, Protection form I (Earthed), Protectklass IP55 (with door) IP30, without door, Acc.Norm: IEC 61439-1, IEC 61439-2, IEC 61439-3; IEC62208, IK08 for housing, IK07 for glass-door and knock-out, powdercoated RAL 7035, Sheet steel material, Door needs to be added seperataly, Door can be mounted Left or Right, Door opening 135°, Backplate sheet steel, Top and Bottom need to be added sepretely, Cable entry by flange of big Cable entry, dimensions in mm (H x W x D) 2000 x 600 x 250, No.Mod.DIN 312 (H=150 mm), prepared for extention side-by-side, prepared for interrior fitting System pro E energy Combi (up to 800A)
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 94 114.18 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 103 892.28 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 107 231.74 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 111 054.02 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 112 601.83 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 114 924.98 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 122 592.10 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 173 406.81 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 177 877.64 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 191 423.10 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | Grey |
| Number of Flange Openings | 4 |
| Number of Rows | 13 |
| Cover Plate Type | Optional |
| Door Type | Single |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Impact Resistance Rating | IK08 |
| Rated Current (In) | 800 A |
| Power Loss | Δt = 25K - Enclosures 94 W, Δt = 30K - Enclosures 134 W, Δt = 35K - Enclosures 176 W, Δt = 40K - Enclosures 221 W |
| Surface Finishing | Powder coating |
| Housing Material | Steel |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Modules | 312 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231210 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20221108 |
| WEEE Category | Product Not in WEEE Scope |
| Degree of Protection | IP55 |
| Protection Class | Grounded (Class I) |
| Width in Number of Modular Spacings | 24 |
| Product Net Width | 612 mm |
| Product Net Height | 2049 mm |
| Product Net Depth / Length | 250 mm |
| Product Net Weight | 34.65 kg |
| Built-In Depth (t2) | 230 mm |
| Thickness | Cabinet Plate 1.5 mm, Door Plate 1.5 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 38.5 kg |
| Mounting Type | Surface mounting |
| ETIM 9 | EC000058 - Empty cabinet |
| ETIM 10 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
| Object Classification Code | U |
| extended_product_type | Q855B620 |
| category_paths | Products > Low Voltage Products and Systems > Enclosures > Sub Distribution Boards > Sub Distribution Boards > System pro E energy M |
