Артикул: 1SZE430801B0070
· Производитель: ABB
· EAN: 5411815219399
1SZE430801B0070
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
48 860.08 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
44 261.48 ₽
срок ≈1 мес. (38 дн.)

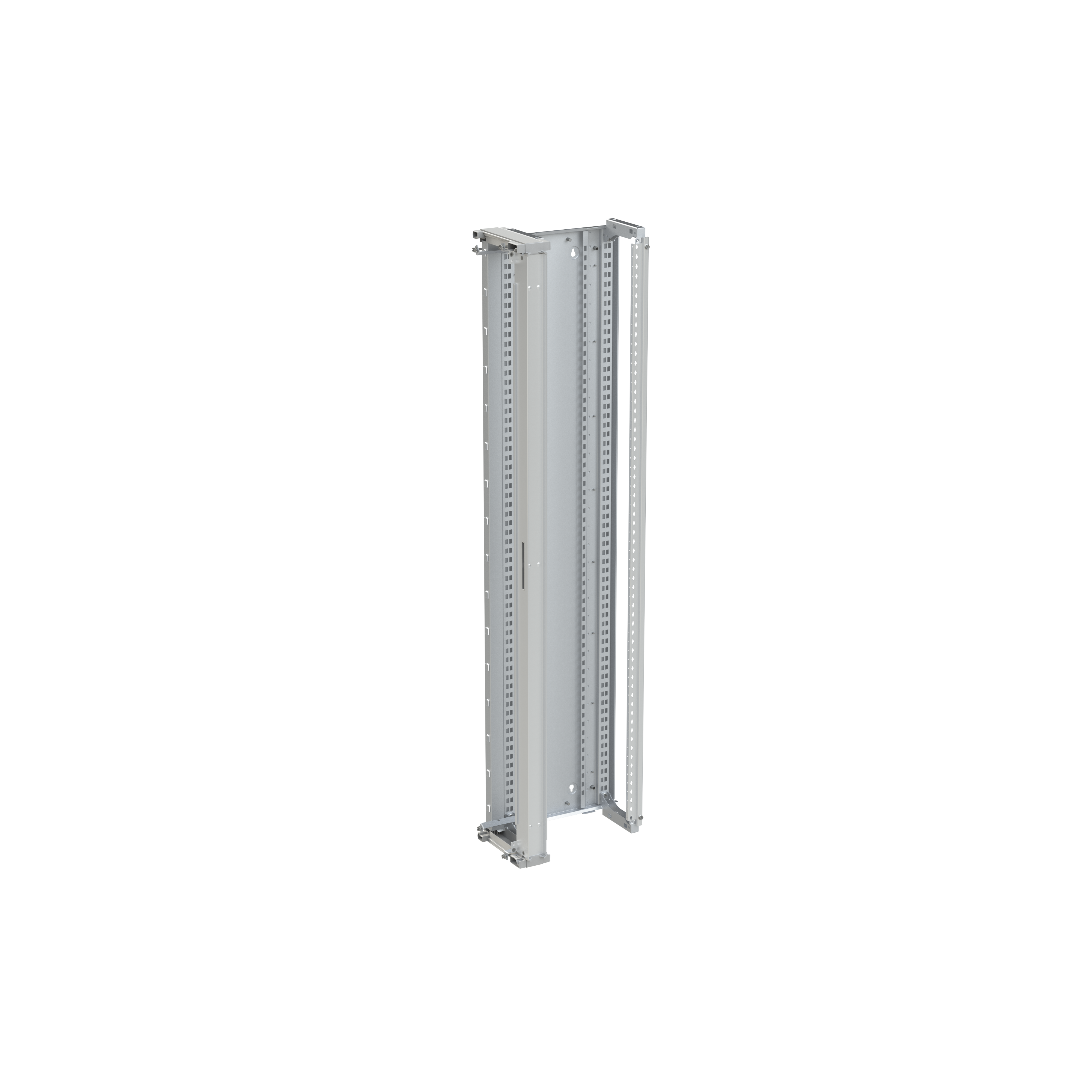

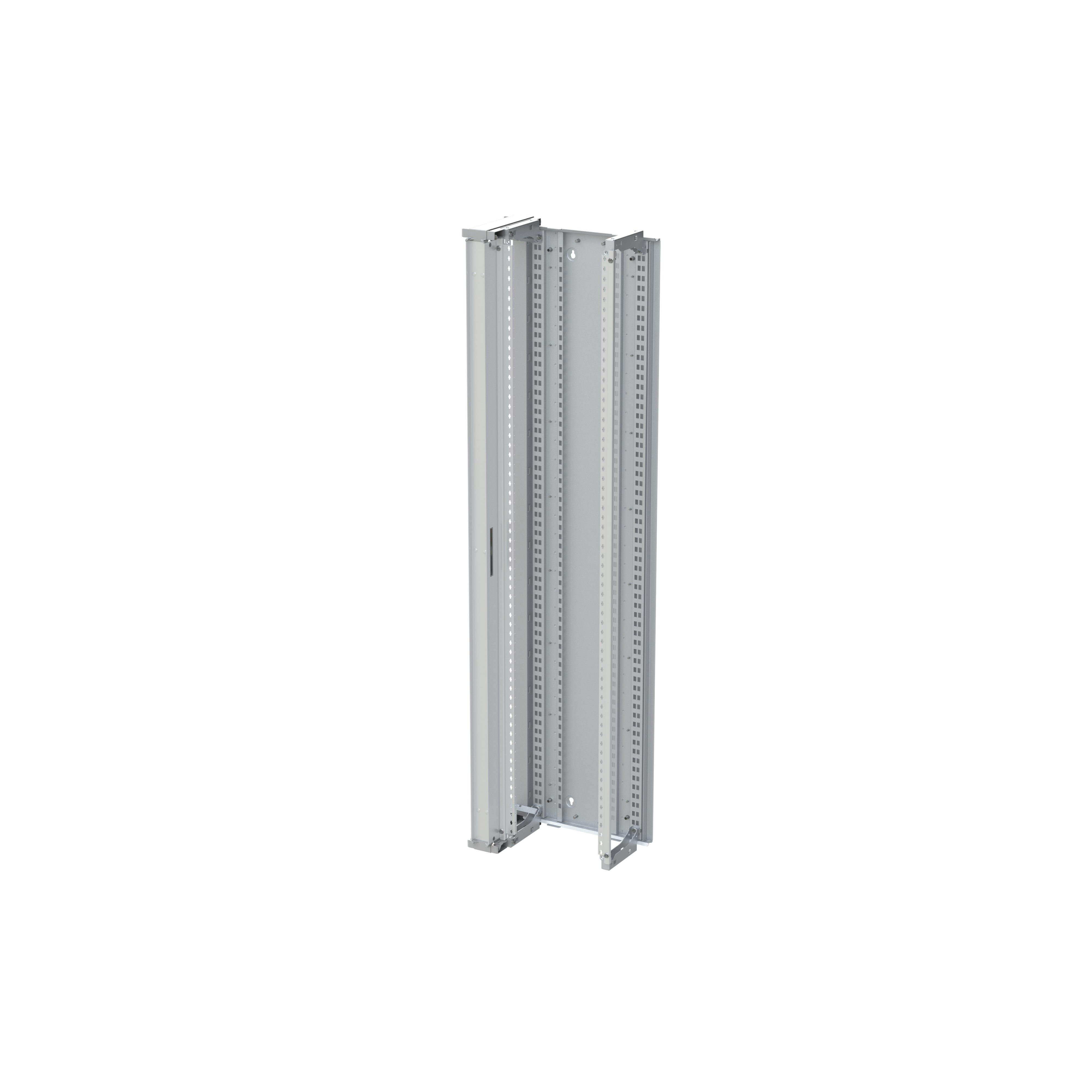

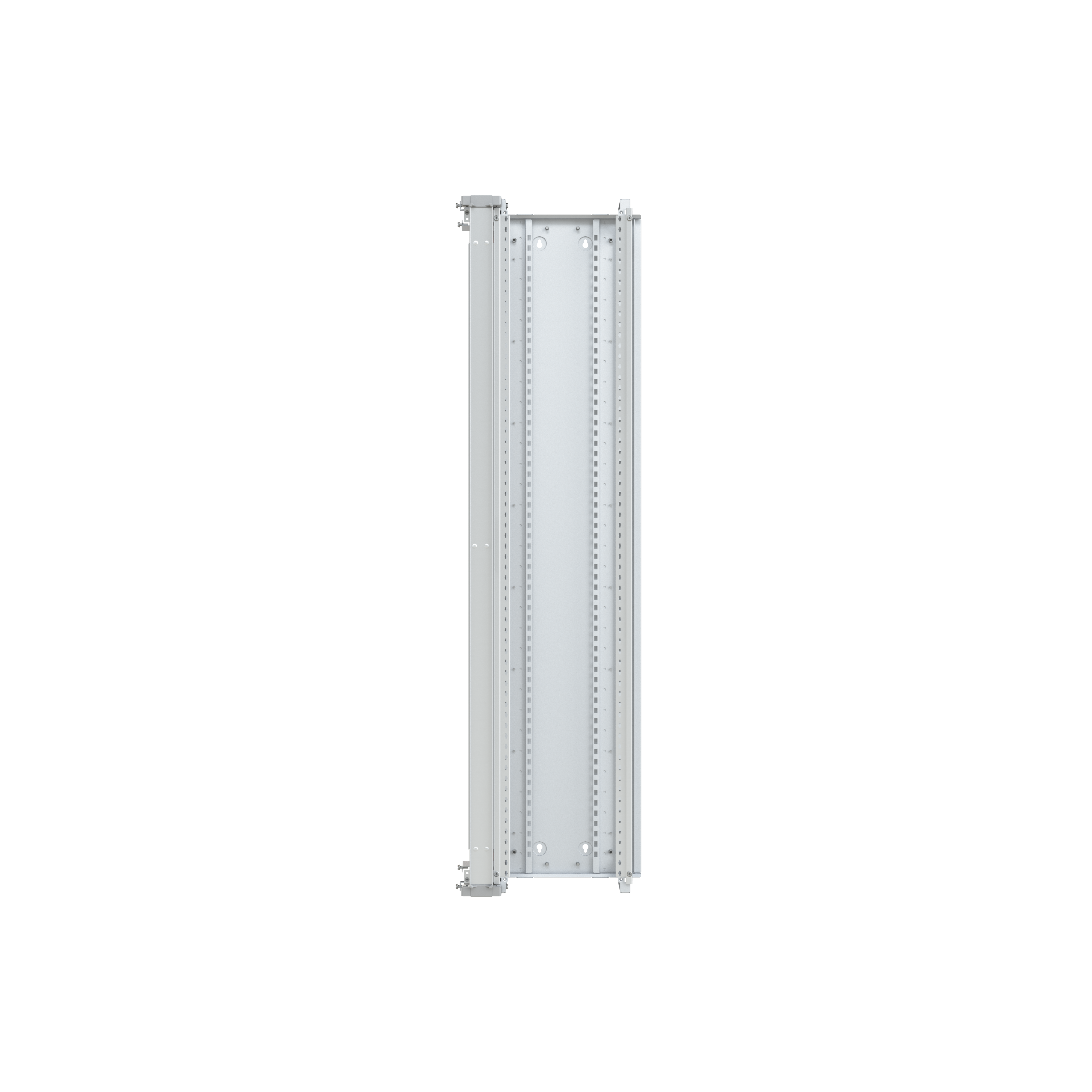

Floor standing cabinet Extention, Type System pro E energy L, Basic structure, Mountingtype: Wallhanging, for indoor installation, Flatpack, Protection form I (Earthed), Protectklass IP43 (with door) IP30, without door, Acc.Norm: IEC 61439-1, IEC 61439-2, IEC 61439-3; IEC62208, IK08 for housing, IK07 for glass-door and knock-out, powdercoated RAL 7035, Sheet steel material, Door needs to be added seperataly, Door can be mounted Left or Right, Door opening 135°, Backplate sheet steel, Top and Bottom need to be added sepretely, Cable entry by flange of big Cable entry, dimensions in mm (H x W x D) 1800 x 400 (384) x 250, No.Mod.DIN 144 (H=150 mm), prepared for extention side-by-side, prepared for interrior fitting System pro E energy Combi (up to 800A)
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 44 261.48 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 48 860.08 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 50 429.76 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 52 228.17 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 52 954.84 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 54 047.71 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 57 654.47 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 81 550.46 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 83 652.92 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 90 023.23 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| color | Grey |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Surface Finishing | Powder coating |
| Material | Steel |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231210 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20221108 |
| WEEE Category | Product Not in WEEE Scope |
| Width in Number of Modular Spacings | 384 |
| Product Net Width | 384 mm |
| Product Net Height | 1849 mm |
| Product Net Depth / Length | 250 mm |
| Product Net Weight | 23.819 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 25.89 kg |
| ETIM 9 | EC002524 - Side-/back panel (enclosure/cabinet) |
| ETIM 10 | EC002524 - Side-/back panel (enclosure/cabinet) |
| eClass | V11.0 : 27182101 |
| Object Classification Code | U |
| extended_product_type | Q843E418 |
| category_paths | Products > Low Voltage Products and Systems > Enclosures > Sub Distribution Boards > Sub Distribution Boards > System pro E energy L |
