Артикул: 1SFA619201R3026
· Производитель: ABB
· EAN: 7320500554999
1SFA619201R3026
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
714.73 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
917.71 ₽
срок ≈1 мес. (38 дн.)

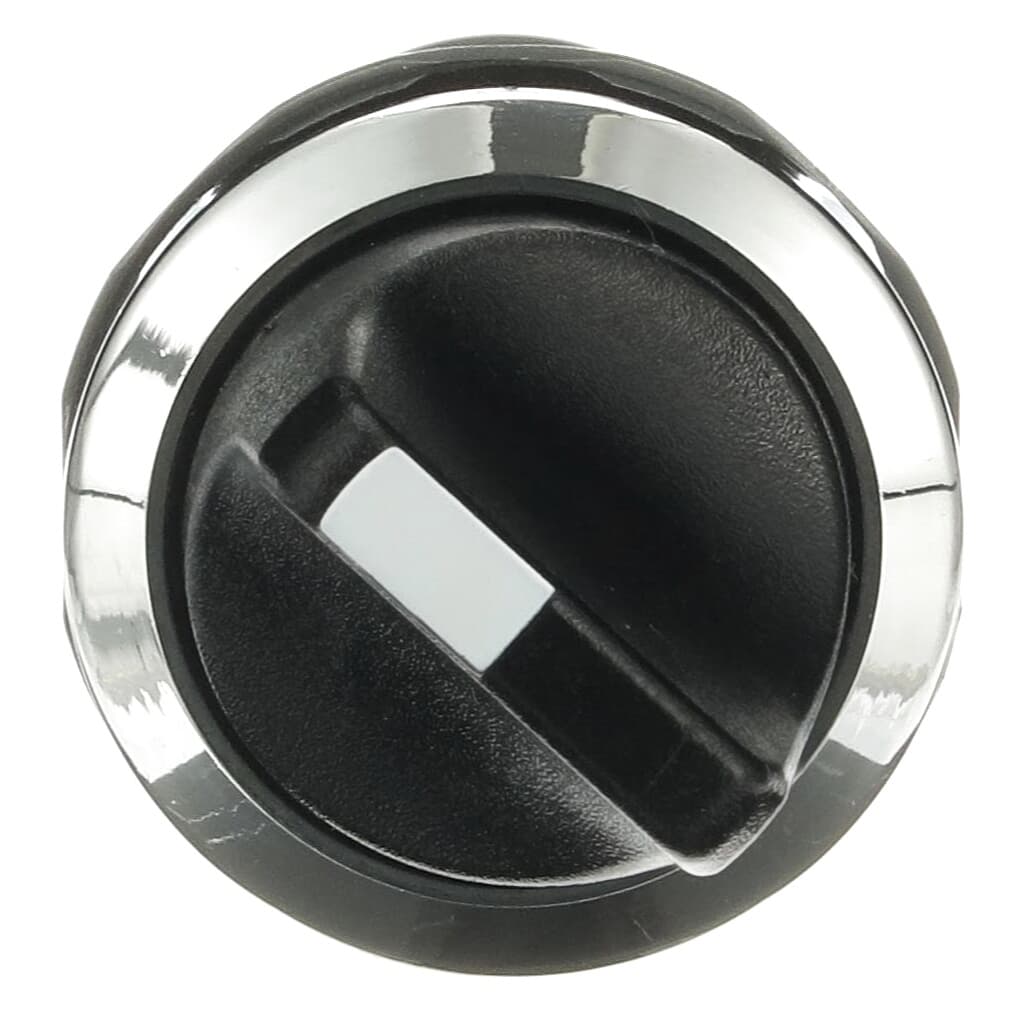

The C2SS2-30B-20 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Black - Non-illuminated - Chrome Metal - 2NO - 2 NO - 0 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Наш склад | 594.00 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 714.73 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 917.71 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 013.05 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 081.93 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 100.68 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 194.34 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 215.04 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 552.26 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536501999 |
| Product Net Width | 0.03 m |
| Product Net Height | 0.03 m |
| Product Net Depth / Length | 0.072 m |
| Product Net Weight | 0.032 kg |
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
| Color | Black |
| Actuator Type | Short handle |
| Bezel Material | Metal |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | 2-position |
| Maintained Positions | A, C |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 24 ... 300 V, Maximum 300 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A, (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A, (220 / 240 V) 2 A |
| Power Loss | Maximum 5 W |
| Mechanical Durability | 0.5 million |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm² |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
| Connecting Capacity UL/CSA | 1x 22...14 AWG, 2x 22...14 AWG |
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 0.235 m |
| Package Level 1 Depth / Length | 0.125 m |
| Package Level 1 Height | 0.035 m |
| Package Level 1 Gross Weight | 0.32 kg |
| Object Classification Code | S |
| ETIM 6 | EC001029 - Selector switch, complete |
| ETIM 7 | EC001029 - Selector switch, complete |
| ETIM 8 | EC001029 - Selector switch, complete |
| eClass | V11.0 : 27371243 |
| UNSPSC | 39122217 |
| IDEA Granular Category Code (IGCC) | 5215 >> Selector Switch Complete Assemblies |
| extended_product_type | C2SS2-30B-20 |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Pilot Devices > Compact Range > CSS Compact Selector Switches |
