Артикул: 1SFA611605R1110 · Производитель: ABB · EAN: 7320500307502

1SFA611605R1110

Name: MCBH-01
Brand: ABB
SKU: 1SFA611605R1110
Availability: InStock

В наличии на нашем складе

Наличие в РФ

271.00 ₽

в наличии на складе · 13 шт.

Склад в Китае

536.54 ₽

срок ≈1 мес. (38 дн.)

Склад в Европе

486.05 ₽

срок ≈1 мес. (38 дн.)

Запросить цену / заказать

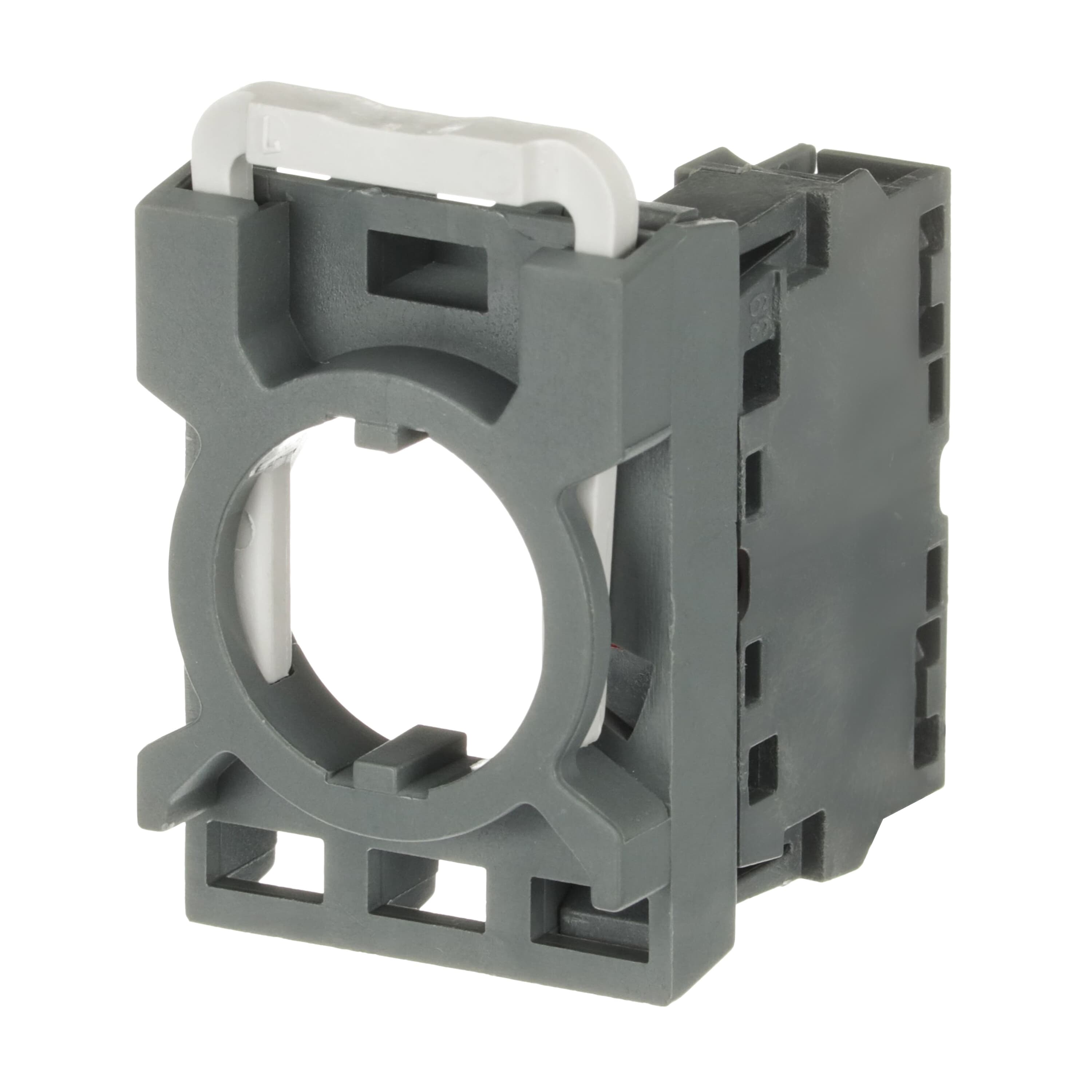

The MCBH-01 Contact Block is: Maintained - Non-illuminated - Single contact block - Front mounting - silver (Ag) - 0 NO - 1NC - 690 V This Contact Block is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.

Варианты поставки

Склад	Цена	Срок	Наличие	Мин. партия
Наш склад	271.00 ₽	В наличии	13 шт.	—	Заказать
Склад в Европе	486.05 ₽	≈1 мес. (38 дн.)	под заказ	—	Заказать
Склад в Китае	536.54 ₽	≈1 мес. (38 дн.)	под заказ	—	Заказать
Склад в Европе	537.50 ₽	≈4 мес. (122 дн.)	под заказ	—	Заказать
Склад в Европе	569.32 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать
Склад в Китае	593.35 ₽	≈4 мес. (122 дн.)	под заказ	—	Заказать
Склад в Китае	628.47 ₽	≈1 мес. (59 дн.)	под заказ	—	Заказать
Склад в Китае	657.84 ₽	≈1 мес. (45 дн.)	под заказ	—	Заказать
Склад в Европе	827.94 ₽	уточняется	под заказ	—	Заказать
Склад в Европе	1 013.07 ₽	≈1 мес. (45 дн.)	под заказ	—	Заказать
Склад в Китае	1 118.32 ₽	≈1 мес. (45 дн.)	под заказ	—	Заказать

Характеристики

Minimum Order Quantity	10 piece
Customs Tariff Number	8536508000
Product Net Width	0.03 m
Product Net Height	0.048 m
Product Net Depth / Length	0.036 m
Product Net Weight	0.021 kg
Ambient Air Temperature	Operation -25 ... +70 °C, Storage -40 ... +85 °C
Illumination	Non-illuminated
Function	With 3-position holder
Mounting Type	Front mounting
Number of Auxiliary Contacts NC	1
Number of Auxiliary Contacts NO	0
Pollution Degree	3
Rated Insulation Voltage (Ui)	690 V
Rated Impulse Withstand Voltage (Uimp)	6 kV
Rated Frequency (f)	50 / 60 Hz
Rated Operational Voltage	Maximum 690 V
Rated Operational Current DC-13 (Ie)	(24 V) 5 A, (125 V) 0.55 A
Rated Operational Current AC-15 (Ie)	(230 V AC) 6 A
Power Loss	Maximum 2.5 W
Mechanical Durability	10 million
Connecting Capacity	Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm²
Connection Type	Screw Clamp
Terminal Type	Screw Terminals
Tightening Torque	0.9 N·m
Wire Stripping Length	8 mm
Suitable For	MP1, MP2, MP3, MP4, MPD1, MPD2, MPD3, MPD4, MPD5, MPD11, MPD12, MPD13, MPD14, MPD15, MPD16, MPM1, MPM2, KP6, MPET3, MPEP3, MPEK3, MPET4, MPEP4, MPEK4, MPMT3, MPMT4, MPMP3, MPMP4, M2SS1, M2SS2, M2SS3, M2SS4, M2SS5, M2SS6, M3SS1, M3SS2, M3SS3, M3SS4, M3SS5, M3SS6, M3SS7, M3SS8, M3SSC1, M3SSC2, M3SSC3, M3SSC4, M3SSC5, M3SSC6, M3SSC7, M3SSC8, M2SSK1, M2SSK2, M2SSK3, M3SSK1, M3SSK2, M3SSK3, MTS1, MTS2, MTS3, MJS1, MJS2, MJS5, MJS6, MJS7, MJS8, MJS11, MJS12
Suitable for Product Class	Pilot Devices
Connecting Capacity UL/CSA	1x 18...14 AWG, 2x 18...14 AWG
Degree of Protection	Terminals IP20
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
Package Level 1 Units	bag 1 piece
Package Level 1 Width	0.11 m
Package Level 1 Depth / Length	0.15 m
Package Level 1 Height	0.03 m
Package Level 1 Gross Weight	0.021 kg
Object Classification Code	S
ETIM 6	EC000041 - Auxiliary contact block
ETIM 7	EC000041 - Auxiliary contact block
ETIM 8	EC000041 - Auxiliary contact block
eClass	V11.0 : 27371302
UNSPSC	39122221
IDEA Granular Category Code (IGCC)	5219 >> Switch part or accessory
E-Number (Finland)	2339055
E-Number (Norway)	4372827
E-Number (Sweden)	3714020
extended_product_type	MCBH-01
category_paths	Products > Low Voltage Products and Systems > Control Products > Pilot Devices > Modular Plastic Range, Parts & Services > Medium Voltage Products and Systems > Service > Spares and Consumables > Parts > All Spare Parts (Relays-SWG-CB)
