Артикул: 1SFA187176R1033
· Производитель: ABB
· EAN: 7320500523179
1SFA187176R1033
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
455.56 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
521.16 ₽
срок ≈4 мес. (122 дн.)

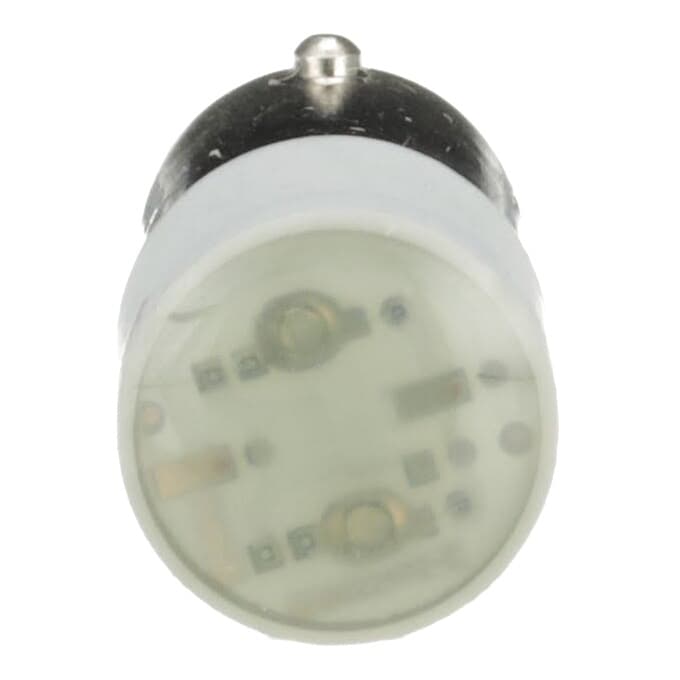

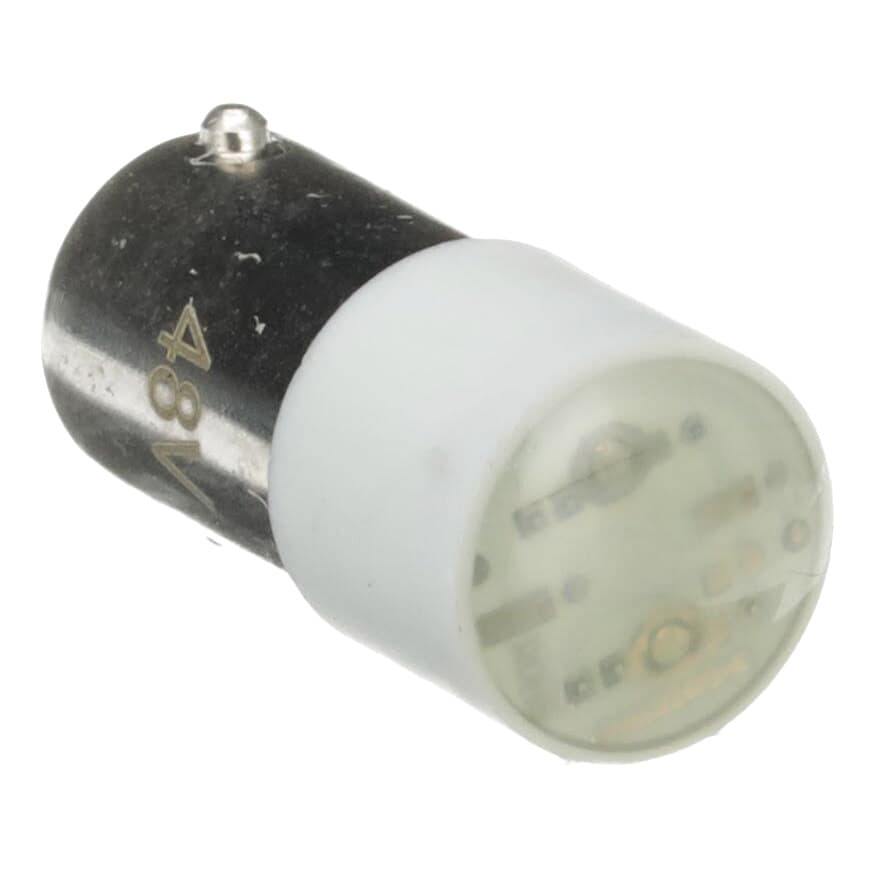

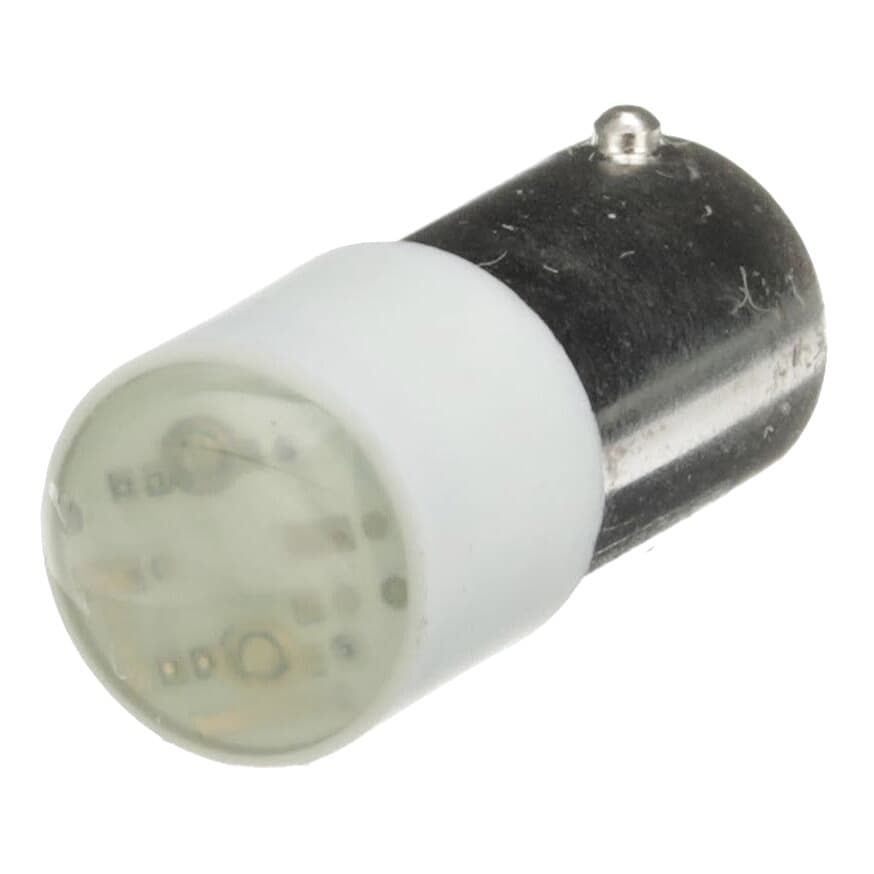

The BA9S48LEDG LED bulb is: Modular metal - LED bulb - BA9S socket - Yellow - Illuminated - 48 V
This LED bulb is part of ABB's modular metal range designed for mining, construction and heavy industry applications, combining the highest reliability with the full flexibility of a modular range.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 455.56 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Европе | 521.16 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 571.15 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 575.31 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 581.74 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 630.49 ₽ | ≈1 мес. (59 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Китае | 642.18 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 701.56 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 774.45 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Европе | 834.09 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8539520000 |
| Product Main Type | BA9S |
| Product Net Width | 11 mm |
| Product Net Depth / Length | 25.5 mm |
| Product Net Height | 11 mm |
| Product Net Weight | 0.002 kg |
| Color | Yellow |
| Function | BA9S socket |
| Illumination | Illuminated |
| Lamp Type | LED 48 V ACDC |
| Power Loss | Maximum 0.7 W |
| Rated Current (In) | 15 mA |
| Rated Operational Voltage | 48 V AC/DC |
| Service Life | 100000 HUR |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508 |
| Ambient Air Temperature | Operation -30 ... 70 °C, Storage -40 ... +70 °C |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | bag 5 piece |
| Package Level 1 Width | 80 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Gross Weight | 0.01 kg |
| eClass | V11.0 : 27110631 |
| E-Number (Finland) | 2307578 |
| ETIM 6 | EC000399 - Indication- and signalling lamp |
| ETIM 7 | EC000399 - Indication- and signalling lamp |
| ETIM 8 | EC000399 - Indication- and signalling lamp |
| ETIM 9 | EC000399 - Indication- and signalling lamp |
| IDEA Granular Category Code (IGCC) | 3058 >> Light emitting diode LED lamp |
| UNSPSC | 39101628 |
| extended_product_type | BA9S48LEDG |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Pilot Devices > Accessories |
