Артикул: 1SFA187055R1300
· Производитель: ABB
· EAN: 7320500522950
1SFA187055R1300
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
205.80 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
286.98 ₽
срок ≈4 мес. (122 дн.)

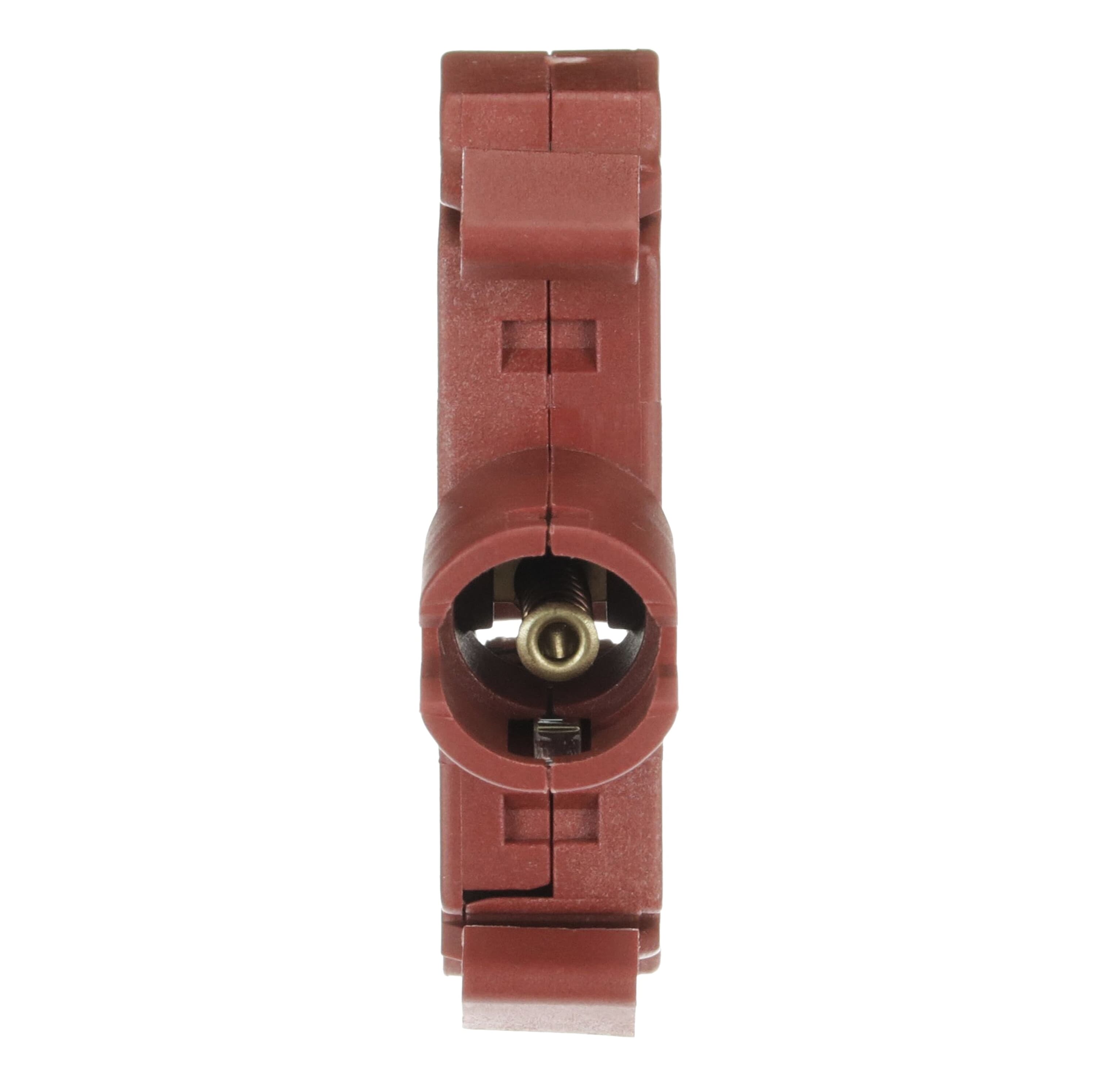

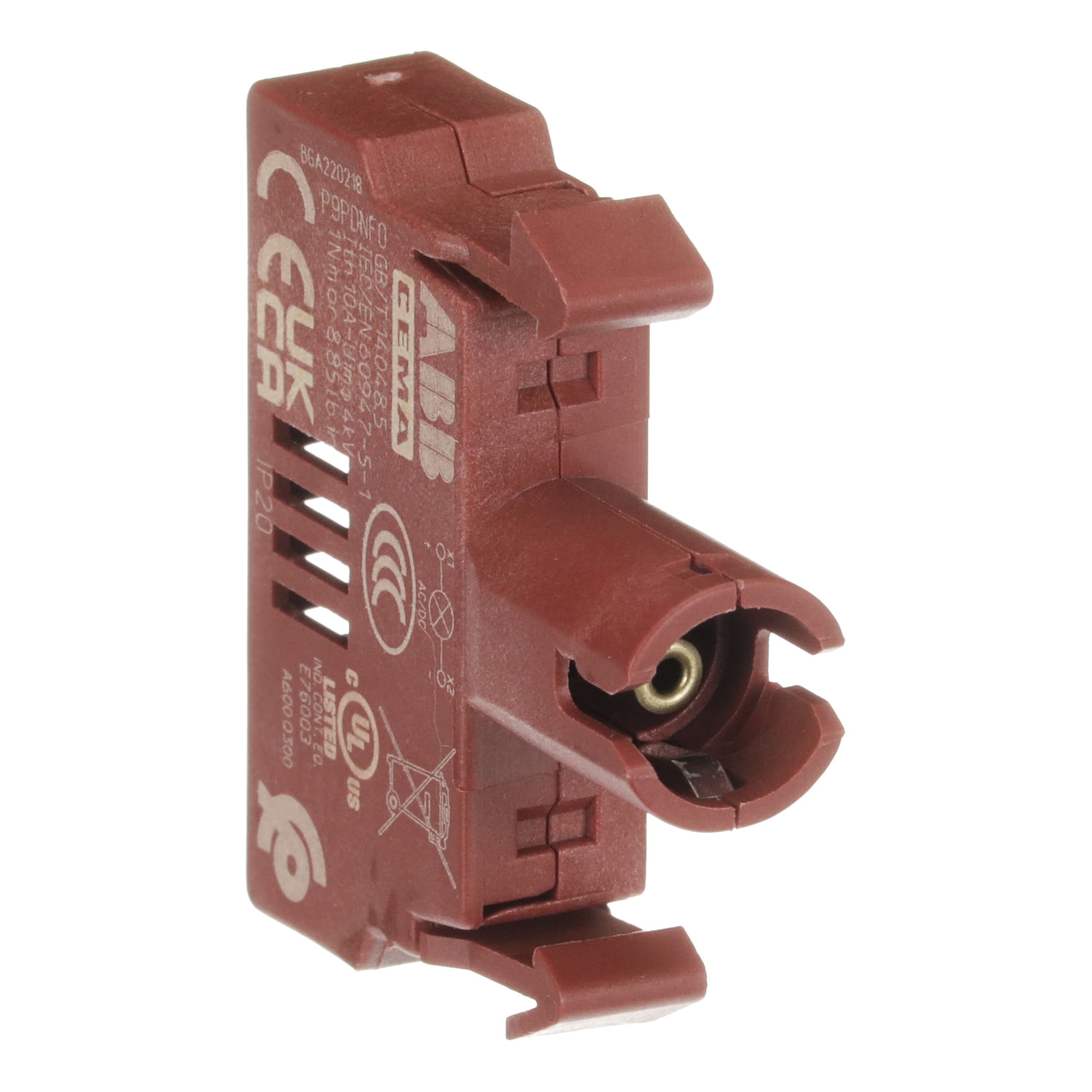

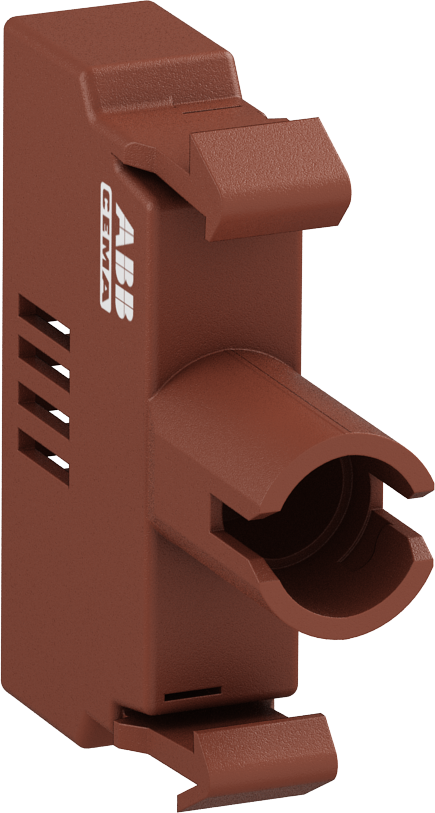

The P9PDNF0 Lamp Block is: Modular metal - Lamp Block - Brown - Illuminated - Front mounting - 380 V
This Lamp Block is part of ABB's modular metal range designed for mining, construction and heavy industry applications, combining the highest reliability with the full flexibility of a modular range.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 205.80 ₽ | ≈2 мес. (73 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Китае | 259.58 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Европе | 286.98 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 316.80 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 322.95 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 328.56 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 349.86 ₽ | ≈2 мес. (73 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Китае | 362.70 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 372.82 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 399.75 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 411.56 ₽ | ≈1 мес. (59 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Китае | 441.28 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Европе | 544.15 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536619090 |
| Product Net Width | 9.3 mm |
| Product Net Height | 36.3 mm |
| Product Net Depth / Length | 39.4 mm |
| Product Net Weight | 0.013 kg |
| Ambient Air Temperature | Operation -30 ... 70 °C, Storage -40 ... +70 °C |
| Color | Brown |
| Illumination | Illuminated |
| Lamp Type | Lamp block for Ba9s socket for max 2W 380 V AC/DC LED |
| Mounting Type | Front mounting |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Maximum 380 V |
| Power Loss | Maximum 2 W |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm² |
| Connection Type | Faston |
| Terminal Type | Faston |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| Connecting Capacity UL/CSA | 1x 18...14 AWG, 2x 18...14 AWG |
| Degree of Protection | Terminals IP20 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 80 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Gross Weight | 0.013 kg |
| ETIM 7 | EC000204 - Lamp holder block for control circuit devices |
| ETIM 8 | EC000204 - Lamp holder block for control circuit devices |
| eClass | V11.0 : 27371209 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 2314729 |
| E-Number (Sweden) | 3705918 |
| extended_product_type | P9PDNF0 |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Pilot Devices > Modular Metal Range P9M |
