Артикул: 1SFA184856R9001
· Производитель: ABB
· EAN: 7320500522820
1SFA184856R9001
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
1 590.58 ₽
срок ≈1 мес. (38 дн.)
Склад в Европе
1 440.88 ₽
срок ≈1 мес. (38 дн.)

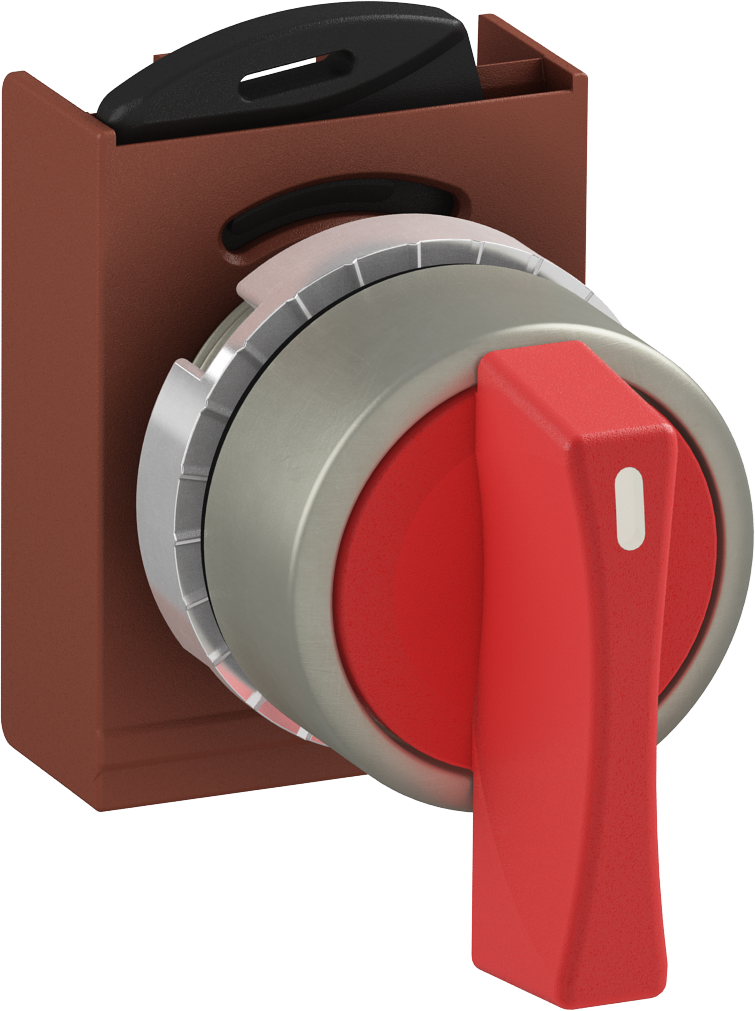

The P9MSVZ0R Selector Switch is: Modular metal - Selector Switch with holder - 3-position - Maintained - Long handle - Red - Non-illuminated - Satin Chrome Metal
This Selector Switch is part of ABB's modular metal range designed for mining, construction and heavy industry applications, combining the highest reliability with the full flexibility of a modular range.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 1 440.88 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 567.28 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 587.41 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 590.58 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 730.11 ₽ | ≈1 мес. (59 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Китае | 1 752.33 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 2 222.37 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536501990 |
| Product Net Width | 29.7 mm |
| Product Net Height | 46.6 mm |
| Product Net Depth / Length | 52.2 mm |
| Product Net Weight | 0.065 kg |
| Ambient Air Temperature | Operation -30 ... 70 °C, Storage -40 ... +70 °C |
| Color | Red |
| Bezel Material | Metal |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | 3-position |
| Sub-Function 2 | CAM Z |
| Maintained Positions | A, B, C |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3, Type3R, Type3S, Type4, Type4X |
| Degree of Protection | Front IP66 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 41 mm |
| Package Level 1 Depth / Length | 80 mm |
| Package Level 1 Height | 41 mm |
| Package Level 1 Gross Weight | 0.065 kg |
| ETIM 7 | EC000222 - Front element for selector switch |
| ETIM 8 | EC000222 - Front element for selector switch |
| eClass | V11.0 : 27371213 |
| UNSPSC | 39122217 |
| IDEA Granular Category Code (IGCC) | 5215 >> Selector Switch Complete Assemblies |
| extended_product_type | P9MSVZ0R |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Pilot Devices > Modular Metal Range P9M > P9M Selector Switches > P9MS Selector Switches |
