Артикул: 1SCA022839R3730
· Производитель: ABB
· EAN: 6417019293202
1SCA022839R3730
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
129 684.73 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
196 601.55 ₽
срок ≈1 мес. (38 дн.)

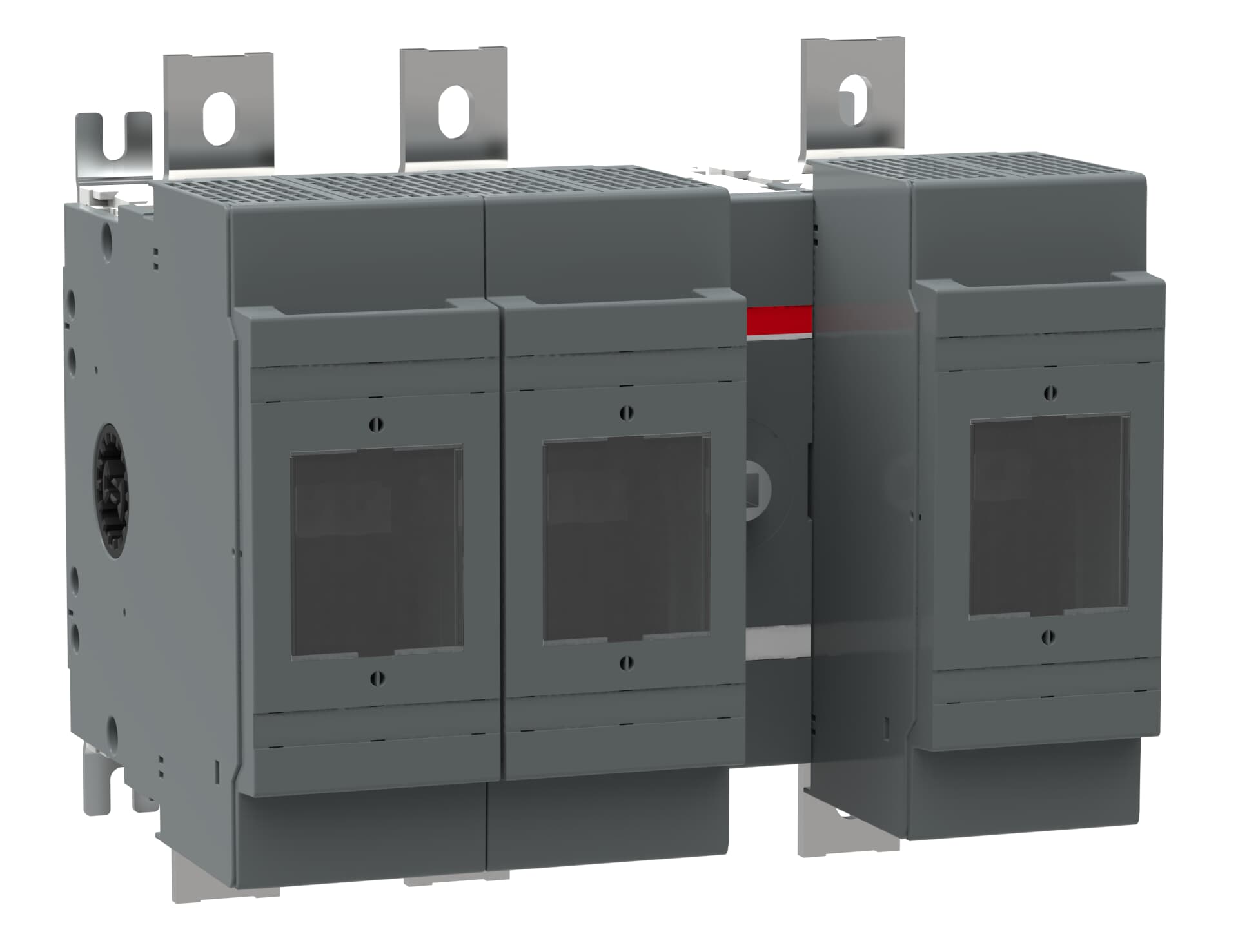

Switch Fuses,Front Operated,3-pole,21 (Between the Poles),Class J,600 A,Handle and shaft not included,
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 129 684.73 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 196 601.55 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 207 476.78 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 217 027.69 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 220 464.04 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 228 973.40 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 229 032.81 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 235 926.44 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 260 438.28 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 307 253.06 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| countryOfOrigin | Finland |
| countryOfAssembly | Finland |
| countryOfLastProcessing | Finland |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
| Product Net Width | 342 mm |
| Product Net Height | 306 mm |
| Product Net Depth / Length | 233 mm |
| Product Net Weight | 12.22 kg, 26.94 lb |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 328 mm, 12.91 in |
| Package Level 1 Depth / Length | 365 mm, 14.37 in |
| Package Level 1 Height | 260 mm, 10.24 in |
| Package Level 1 Gross Weight | 13 kg, 28.66 lb |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 630 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Fuse Size | 600 A |
| Fuse System | Class J |
| Handle Type | Handle Not Included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 46 W, Total 138 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 630 A, (690 V) 630 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A, (500 V) 630 A, (690 V) 630 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A, (500 V) 630 A, (690 V) 630 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 200 kW, (400 V) 355 kW, (415 V) 355 kW, (500 V) 450 kW, (690 V) 630 kW |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 18 kiloampere rms |
| Standards | UL98, IEC 60947-3 |
| Switches Operating Mechanism | 21 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 39 mm |
| Tightening Torque | 50 … 75 N·m |
| Ampere Rating | 600 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 200 Hp, (acc. to UL 480 V) 400 Hp, (acc. to UL 600 V) 500 Hp |
| Tightening Torque UL/CSA | Wire-Clamp 500 in·lb, Cable Lug 480 in·lb |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| extended_product_type | OS600J21 |
| category_paths | Products > Low Voltage Products and Systems > Switches > Switch Fuses |
