Артикул: 1SBN070159T1000
· Производитель: ABB
· EAN: 3471523131460
1SBN070159T1000
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
263.35 ₽
срок ≈4 мес. (122 дн.)
Склад в Европе
238.57 ₽
срок ≈4 мес. (122 дн.)

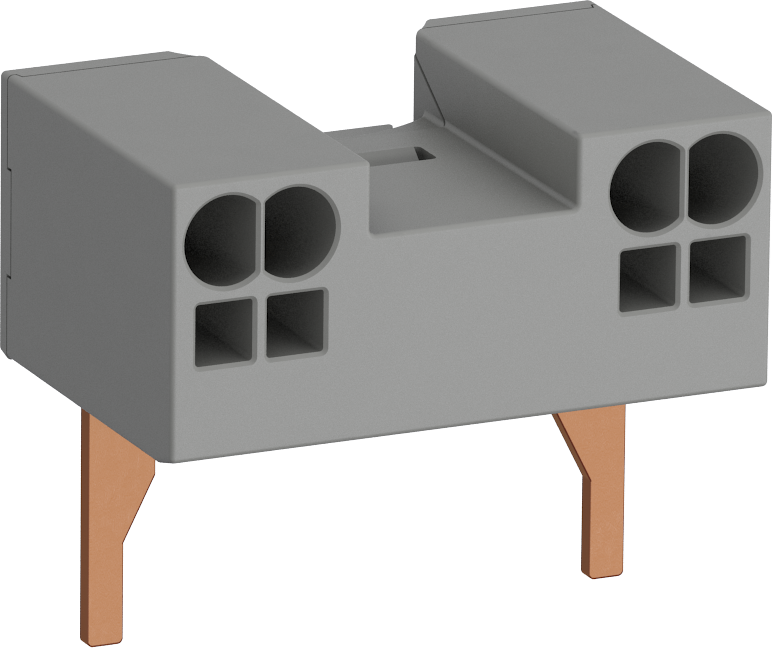

LDC4K is an additional coil terminal blocks equipped with Push-In Spring terminals for a top and/or bottom access to the coil terminals of AF(C)(S)09(Z)(B)...96 contactors and NF(C)(Z)(B) contactor relays. With the Push-in Spring terminals, one push is all you need for a faster than ever installation, an easier than ever wiring and a reliable as ever connection.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Европе | 238.57 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 238.66 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 241.04 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 263.35 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 263.46 ₽ | ≈1 мес. (59 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Китае | 266.08 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 333.50 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 345.81 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
| Склад в Европе | 532.55 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 587.88 ₽ | ≈1 мес. (45 дн.) | под заказ | от 10 шт. | Заказать |
Характеристики
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369010 |
| Product Net Width | 34 mm |
| Product Net Depth / Length | 22 mm |
| Product Net Height | 15 mm |
| Product Net Weight | 0.01 kg |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.5 ... 1.5 mm², Flexible 1/2x 0.5 ... 2.5 mm², Rigid Solid 1/2x 1 ... 2.5 mm² |
| Wire Stripping Length | Control Circuit 10 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Terminal Type | Push-in Spring Terminals |
| Suitable For | AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, AFC40, AFC52, AFC65, AFC80, AFC96, AF09B, AF09ZB, AF12B, AF12ZB, AF16B, AF16ZB, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB, AF40B, AF52B, AF65B, AF80B, AF96B, NF22E, NFZ22E, NF31E, NFZ31E, NF40E, NFZ40E, NF44E, NFZ44E, NF53E, NFZ53E, NF62E, NFZ62E, NF71E, NFZ71E, NF80E, NFZ80E, NFC22E, NFC31E, NFC40E, NFC44E, NFC53E, NFC62E, NFC71E, NFC80E, NFZB22E, NFB22E, NFZB31E, NFB31E, NFZB40E, NFB40E, NFZB44E, NFB44E, NFZB62E, NFB62E, NFZB80E, NFB80E |
| Product Name | Additional Coil Terminal Block |
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 85 mm |
| Package Level 1 Depth / Length | 110 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Gross Weight | 0.1 kg |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39121410 |
| IDEA Granular Category Code (IGCC) | 4547 >> Terminal blocks |
| E-Number (Finland) | 3708044 |
| E-Number (Sweden) | 3210660 |
| extended_product_type | LDC4K |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Contactors > Block Contactors |
