Артикул: 1SBN060300R1000
· Производитель: ABB
· EAN: 3471522364852
1SBN060300R1000
В наличии на нашем складе
Наличие в РФ
3 859.00 ₽
в наличии на складе · 12 шт.
Склад в Китае
4 139.91 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
6 320.29 ₽
срок ≈1 мес. (38 дн.)

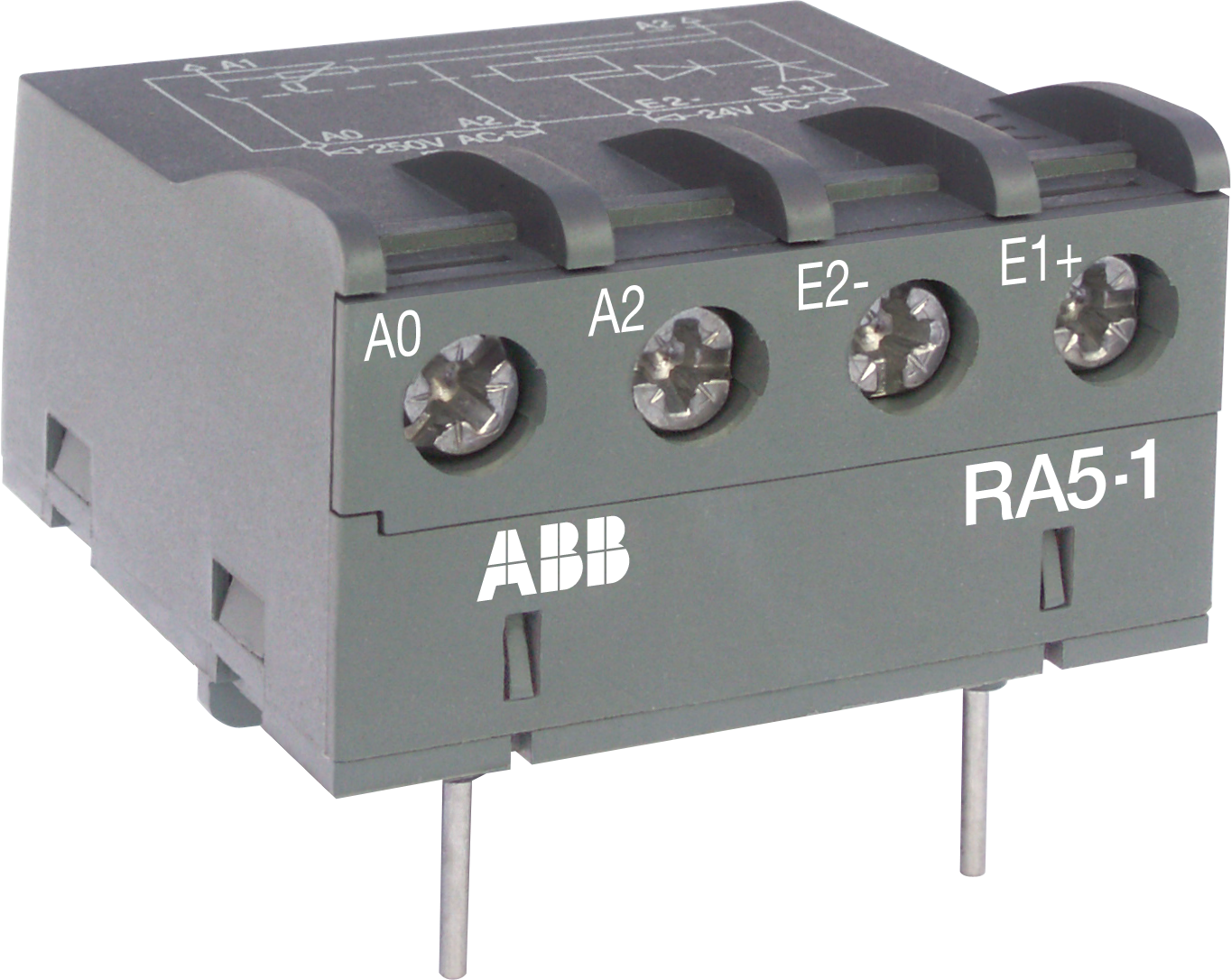

RA5-1 is an interface relay designed to receive 24 V DC signals delivered by PLC’s or other sources with a low output power and to restore them with sufficient power to operate the coils of the relevant contactors.
RA5-1 interface relay is made up of a miniature electromechanical relay equipped with a N.O. contact and with a low consumption 24 V DC coil.
The interface relay coil is controlled by the PLC while the N.O. contact ensures switching of the power contactor.
Coil switching gives rise to overvoltages which have adverse effects on the electronic devices, insulators and, more generally, on component lifetime. The RA5-1 is equipped with surge suppressors:
• on the 24 V DC relay coil via a diode,
• on the power contactor coil via a varistor.
Furthermore, the RA5-1 is protected against relay pole reversal by a diode inserted between the E1 and E2 input terminals.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Наш склад | 3 859.00 ₽ | В наличии | 12 шт. | — | Заказать |
| Склад в Китае | 4 139.91 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 320.29 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 6 375.47 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 6 976.94 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 7 021.60 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 037.85 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 751.12 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 8 757.45 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Product Net Width | 44 mm |
| Product Net Depth / Length | 48 mm |
| Product Net Height | 30 mm |
| Product Net Weight | 0.05 kg |
| Standards | IEC 60255-5 |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 250 V |
| Rated Control Circuit Voltage (Uc) | DC Operation 24 V |
| Terminal Type | Screw Terminals |
| Suitable For | A9, A12, A16, A26, A30, A40, A45, A50, A63, A75, A95, A110, GA75, UA16, UA26, UA30, UA50, UA63, UA75, UA95, UA110, UA16RA, UA26RA, UA30RA, UA50RA, UA63RA, UA75RA, UA95RA, UA110RA, AX50, AX65, AX80 |
| Product Name | Interface Relay |
| Ambient Air Temperature | Close to Contactor for Storage -40 ... 70 °C |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 5f2955da-a7a9-4e89-b0a8-f70cd3d30111 France |
| Simplified SCIP | 9981f7e4-0103-456e-96a8-01f19881e98a Germany, 36efa577-352f-4467-bcc5-412239c95d89 Bulgaria, c812799c-41f5-4de8-a324-5c73416da0bc Belgium, 659a63cb-7ca2-4870-8272-6499f15aa60e Hungary, e0463560-7df3-4b37-8ce7-a8ab393ac40b Belgium, a8bfc668-4df0-4047-8151-cbef40b901d0 Portugal, 3279a0a5-4592-4a56-81bb-4390742bc3b6 Estonia, a6a73ada-188e-48e0-82dd-72362068af3f Germany, 1c5864b7-6b66-49b6-b3ab-b5d915bb31dd Italy, f22b3493-a31b-4b2d-9f57-9561378fdaee Denmark, 1fe8d693-e1f2-4c60-983c-a43493ab89f9 Norway, b7252998-043e-401c-a756-ba725926005a Spain, 86b469b9-79c8-4f26-b22e-ee7e35f7a29a Croatia, 7db71294-f2c1-4187-9a47-41702e0ff5b9 Poland, 37b18a56-dc6f-4688-b364-a9f539a191ab Poland, 401bb613-7140-4563-a0e1-ff7f96a87204 Czechia, ca7f49e5-1906-4ce2-b5a2-0b303fc9d499 Germany, 3477fd40-ea21-4f87-898c-8151209bd130 Finland, 0cc13c19-f227-49ee-a8c8-7af236faf18e Sweden, ff1f7a62-85f2-4b1c-9b72-5f71fa3b59a5 Hungary, 973a263f-67f7-4860-8bcb-7b611a99c12c Poland, 59ecae77-1cf5-400c-86ec-27db7579180e Germany, b28007c8-4e94-473b-ba9c-4194b0a7c842 Sweden, e2074984-da57-4b6c-a52c-df9da14d1f75 Germany, 01fc5247-be0f-4fa5-9685-8ab03784f3b3 France, e7354100-9924-43fa-ae45-0d9307eea573 Greece, 96731d5a-2a35-4913-a5e5-957cd6d304ed Netherlands |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 45 mm |
| Package Level 1 Depth / Length | 45 mm |
| Package Level 1 Height | 52 mm |
| Package Level 1 Gross Weight | 0.05 kg |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122331 |
| IDEA Granular Category Code (IGCC) | 5367 >> Control relay |
| E-Number (Finland) | 3709232 |
| extended_product_type | RA5-1 |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Contactors > Block Contactors |
