Артикул: 1SBN010155R1011
· Производитель: ABB
· EAN: 3471523130555
1SBN010155R1011
В наличии на нашем складе
Наличие в РФ
1 374.00 ₽
в наличии на складе · 152 шт.
Склад в Китае
805.40 ₽
срок ≈1 мес. (45 дн.)
Склад в Европе
968.39 ₽
срок ≈1 мес. (38 дн.)

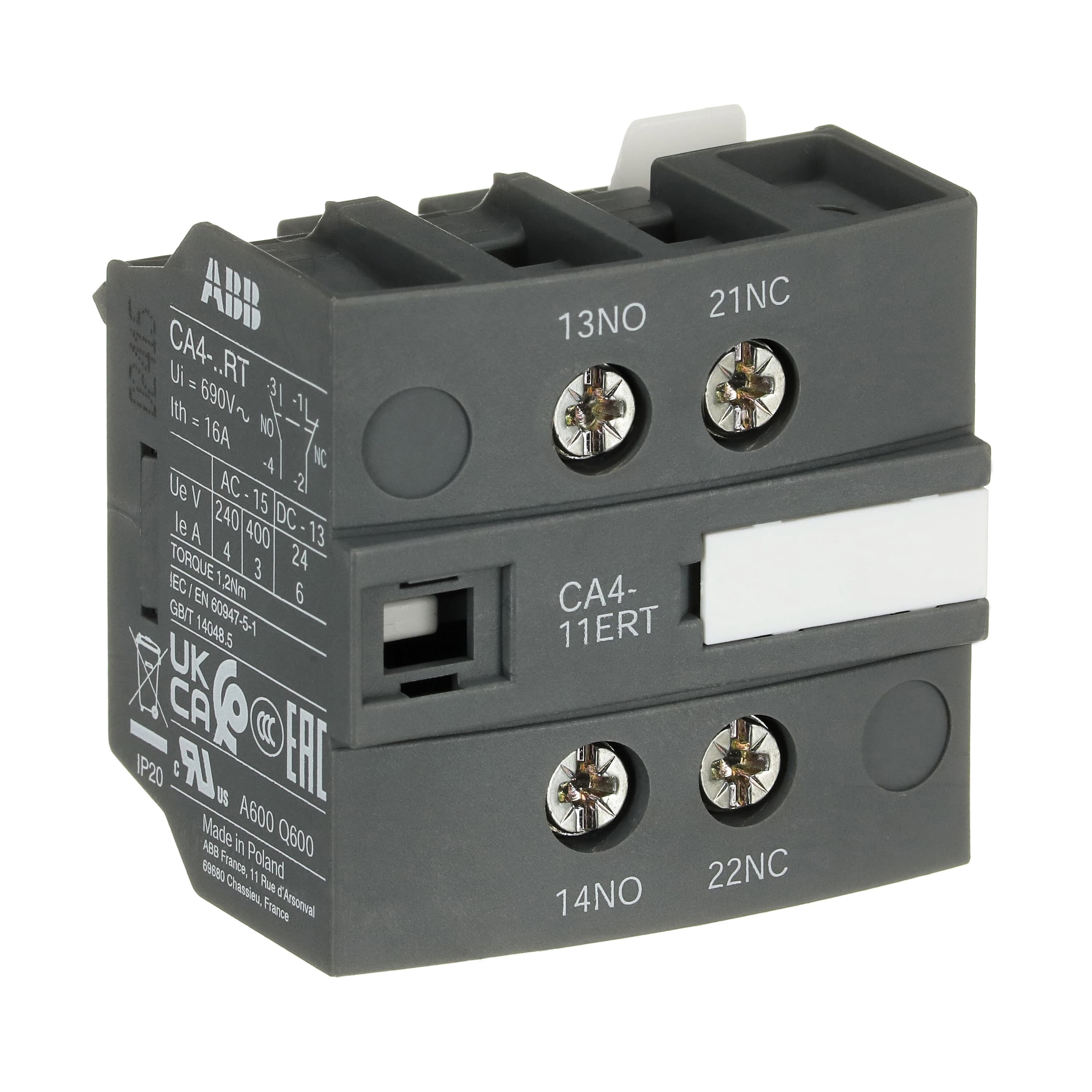

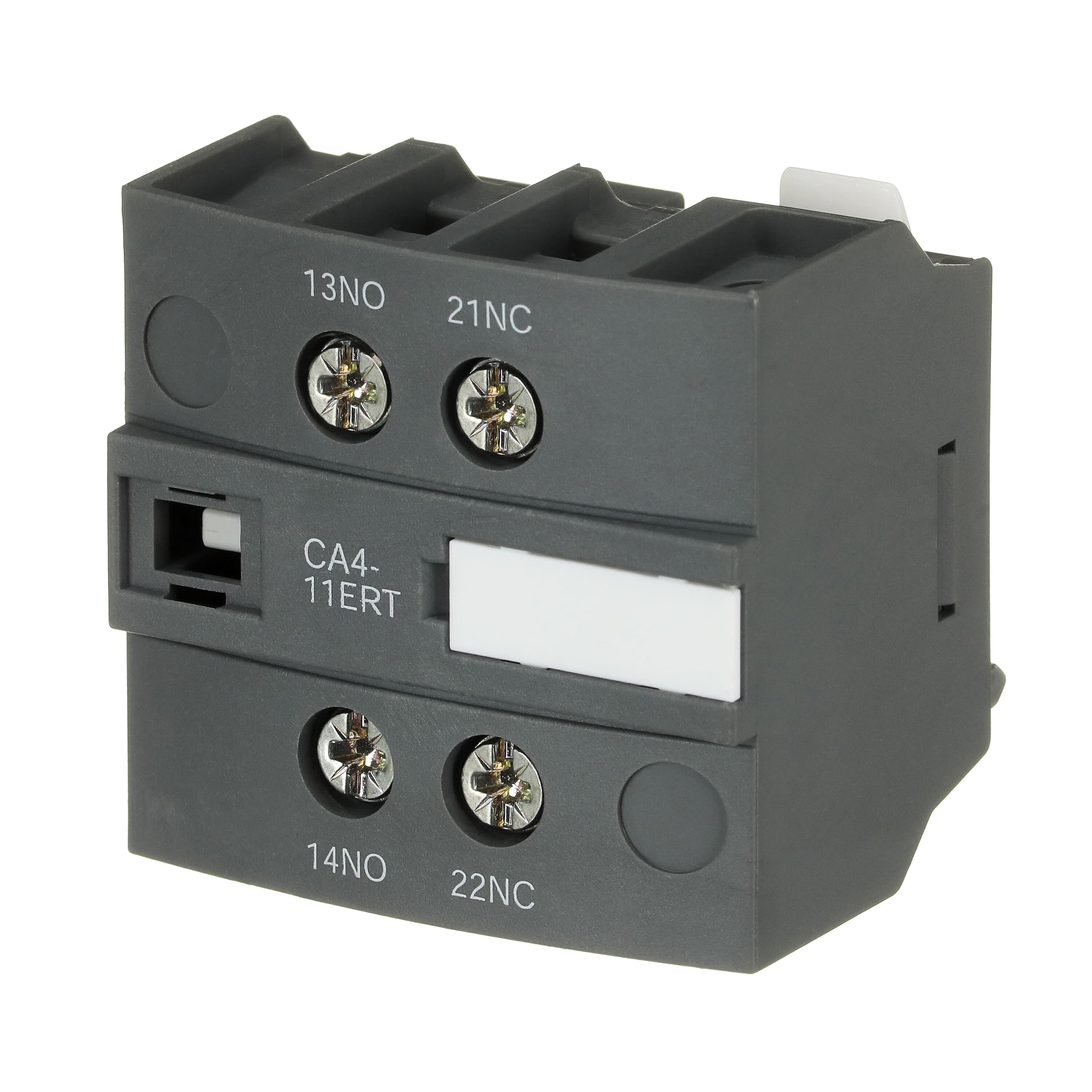

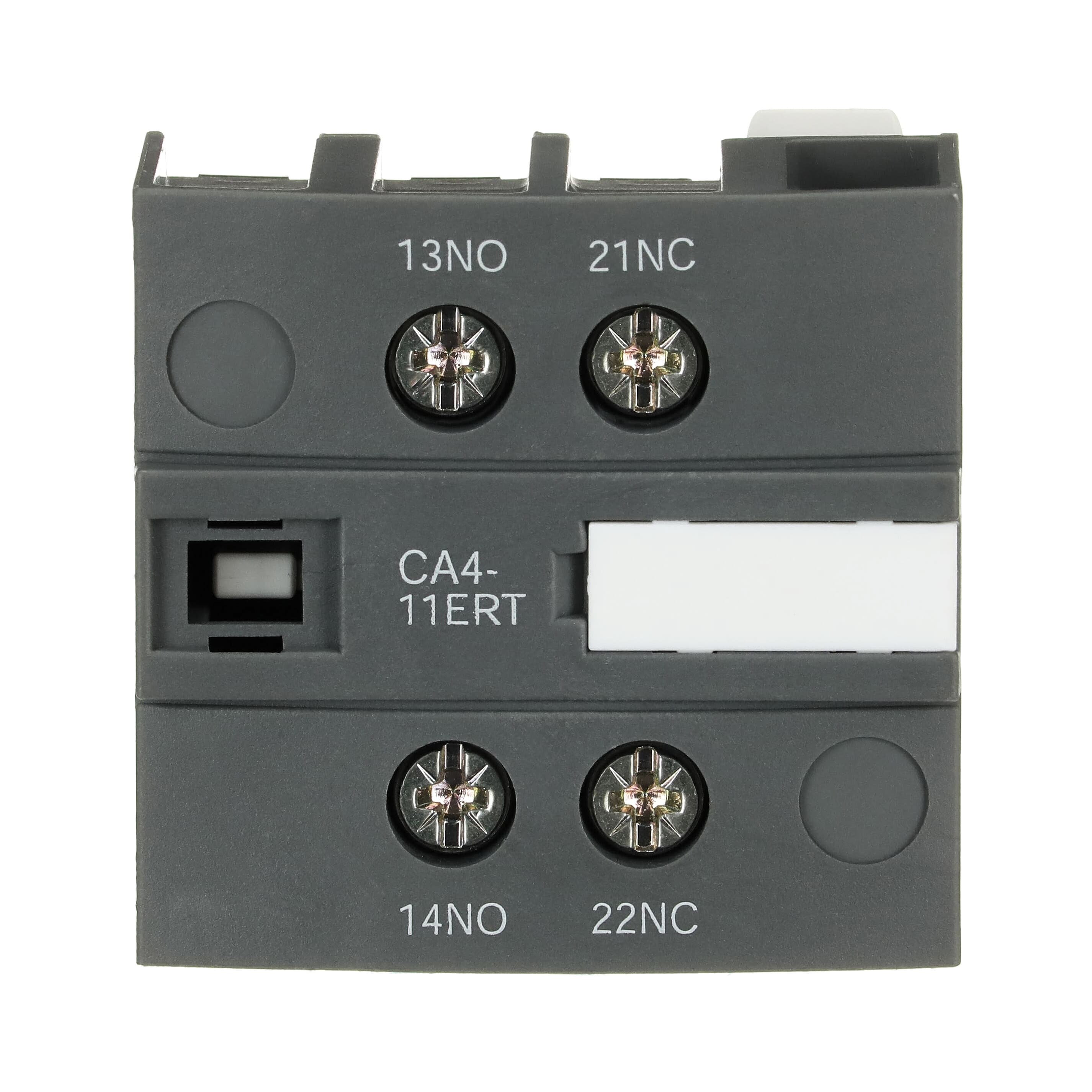

CA4-11ERT is a 2-pole front mounted auxiliary contact block equipped with screw terminals for connection with ring tongue ferrules. CA4-..E version offers terminal assortment matching the marking of 3-pole AF26..38(Z)B-30-00RT, 4-pole AF09..38(Z)B-40-00RT or AF09..38(Z)B-22-00RT contactors. CA4-11ERT is available with 1 N.O. and 1 N.C. instantaneous contacts for standard industrial environments. Screw terminals for connection with ring tongue ferrules, includes non-detachable screw with conic washer for a fast and secure tightening of cables.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 805.40 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 968.39 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 052.72 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 069.00 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 108.35 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 162.09 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 223.50 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 1 240.32 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Китае | 1 369.19 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Наш склад | 1 374.00 ₽ | В наличии | 152 шт. | — | Заказать |
| Склад в Европе | 1 412.58 ₽ | уточняется | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 39.8 mm |
| Product Net Height | 43 mm |
| Product Net Weight | 0.04 kg |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14-10 |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (400 / 440 V) 3 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.27 A / 60 W, (250 V) 0.27 A / 68 W, (400 V) 0.15 A / 60 W, (500 V) 0.13 A / 65 W, (600 V) 0.1 A / 60 W |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A, for 1 s 100 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour, (DC-13) 900 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1.2 N·m |
| Terminal Type | Ring-Tongue Terminals |
| Suitable For | AF09B, AF09ZB, AF12B, AF12ZB, AF16B, AF16ZB, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB |
| Product Name | Auxiliary Contact Block |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 46 mm |
| Package Level 1 Depth / Length | 46 mm |
| Package Level 1 Height | 46 mm |
| Package Level 1 Gross Weight | 0.04 kg |
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| extended_product_type | CA4-11ERT |
| category_paths | Products > Low Voltage Products and Systems > Control Products > Contactors > Block Contactors |
