Артикул: 1SBL156061R2301
· Производитель: ABB
· EAN: 3471523123830
1SBL156061R2301
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
5 822.72 ₽
срок ≈2 мес. (73 дн.)
Склад в Европе
8 119.78 ₽
срок ≈4 мес. (122 дн.)

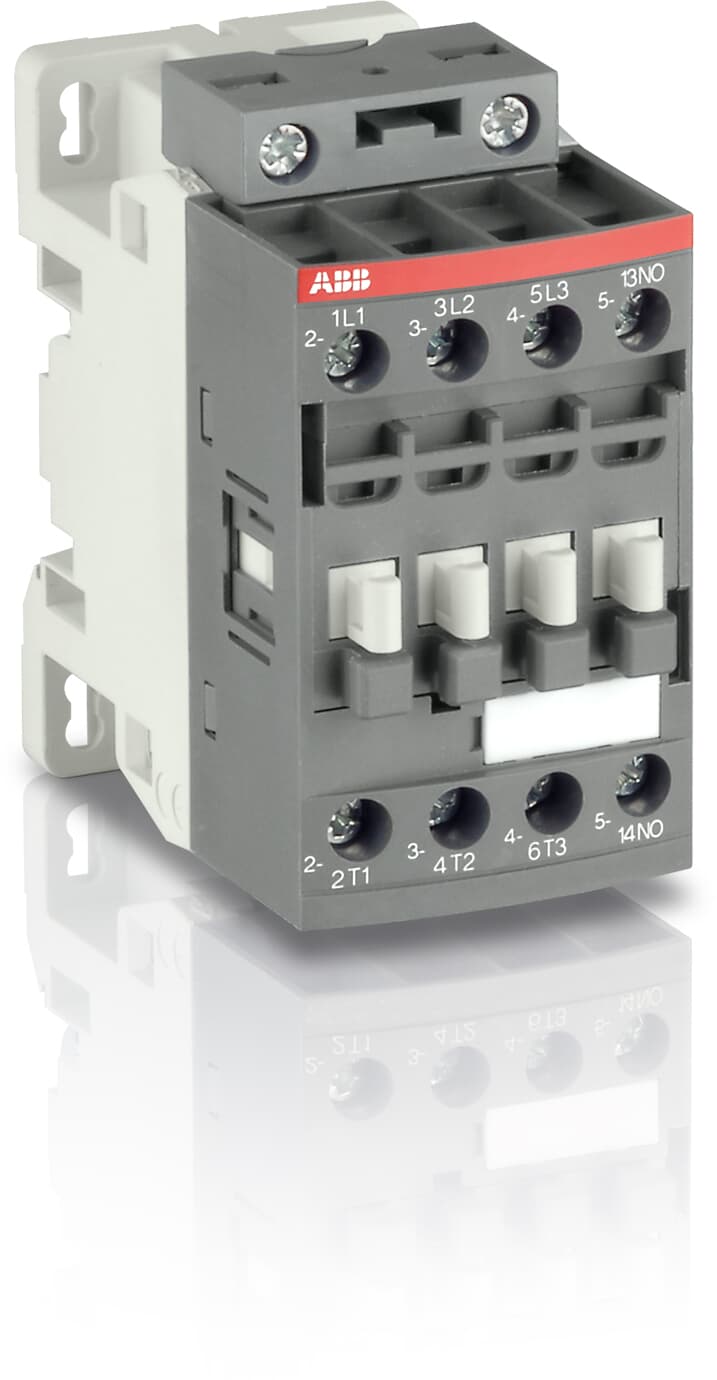

The AF12ZB-30-01-23 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 5.5 kW / 400 V AC (AC-3) or 7-1/2 hp / 480 V UL and switching power circuits up to 28 A (AC-1) or 28 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 5 822.72 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 7 885.51 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 8 119.78 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Европе | 8 232.00 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Китае | 8 963.39 ₽ | ≈4 мес. (122 дн.) | под заказ | — | Заказать |
| Склад в Китае | 9 087.28 ₽ | ≈1 мес. (38 дн.) | под заказ | — | Заказать |
| Склад в Европе | 9 178.59 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Китае | 9 898.62 ₽ | ≈2 мес. (73 дн.) | под заказ | — | Заказать |
| Склад в Европе | 10 351.81 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Китае | 11 427.33 ₽ | ≈1 мес. (59 дн.) | под заказ | — | Заказать |
| Склад в Европе | 12 143.69 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
| Склад в Европе | 12 613.38 ₽ | уточняется | под заказ | — | Заказать |
| Склад в Китае | 13 405.37 ₽ | ≈1 мес. (45 дн.) | под заказ | — | Заказать |
Характеристики
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 77 mm |
| Product Net Height | 86 mm |
| Product Net Weight | 0.31 kg |
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 3P |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| Rated Operational Voltage | Auxiliary Circuit 690 V, Main Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz, Control Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A, acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 28 A, (690 V) 60 °C 28 A, (690 V) 70 °C 24 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 12 A, (440 V) 60 °C 12 A, (500 V) 60 °C 12.5 A, (690 V) 60 °C 9 A, (380 / 400 V) 60 °C 12 A, (220 / 230 / 240 V) 60 °C 12 A |
| Rated Operational Current AC-3e (Ie) | (415 V) 60 °C 12 A, (440 V) 60 °C 12 A, (500 V) 60 °C 12.5 A, (690 V) 60 °C 9 A, (380 / 400 V) 60 °C 12 A, (220 / 230 / 240 V) 60 °C 12 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (400 / 440 V) 3 A |
| Rated Operational Current DC-1 (Ie) | (110 V) 1-Pole, 40 °C 15 A, (110 V) 1-Pole, 60 °C 15 A, (110 V) 1-Pole, 70 °C 15 A, (110 V) 2 Poles in Series, 40 °C 27 A, (110 V) 2 Poles in Series, 60 °C 27 A, (110 V) 2 Poles in Series, 70 °C 24 A, (110 V) 3 Poles in Series, 40 °C 27 A, (110 V) 3 Poles in Series, 60 °C 27 A, (110 V) 3 Poles in Series, 70 °C 24 A, (220 V) 2 Poles in Series, 40 °C 15 A, (220 V) 2 Poles in Series, 60 °C 15 A, (220 V) 2 Poles in Series, 70 °C 15 A, (220 V) 3 Poles in Series, 40 °C 27 A, (220 V) 3 Poles in Series, 60 °C 27 A, (220 V) 3 Poles in Series, 70 °C 24 A, (72 V) 1-Pole, 40 °C 27 A, (72 V) 1-Pole, 60 °C 27 A, (72 V) 1-Pole, 70 °C 24 A, (72 V) 2 Poles in Series, 40 °C 27 A, (72 V) 2 Poles in Series, 60 °C 27 A, (72 V) 2 Poles in Series, 70 °C 24 A, (72 V) 3 Poles in Series, 40 °C 27 A, (72 V) 3 Poles in Series, 60 °C 27 A, (72 V) 3 Poles in Series, 70 °C 24 A |
| Rated Operational Current DC-3 (Ie) | (110 V) 1-Pole, 40 °C 7 A, (110 V) 1-Pole, 60 °C 7 A, (110 V) 1-Pole, 70 °C 7 A, (110 V) 2 Poles in Series, 40 °C 27 A, (110 V) 2 Poles in Series, 60 °C 27 A, (110 V) 2 Poles in Series, 70 °C 24 A, (110 V) 3 Poles in Series, 40 °C 27 A, (110 V) 3 Poles in Series, 60 °C 27 A, (110 V) 3 Poles in Series, 70 °C 24 A, (220 V) 2 Poles in Series, 40 °C 7 A, (220 V) 2 Poles in Series, 60 °C 7 A, (220 V) 2 Poles in Series, 70 °C 7 A, (220 V) 3 Poles in Series, 40 °C 27 A, (220 V) 3 Poles in Series, 60 °C 27 A, (220 V) 3 Poles in Series, 70 °C 24 A, (72 V) 1-Pole, 40 °C 27 A, (72 V) 1-Pole, 60 °C 27 A, (72 V) 1-Pole, 70 °C 24 A, (72 V) 2 Poles in Series, 40 °C 27 A, (72 V) 2 Poles in Series, 60 °C 27 A, (72 V) 2 Poles in Series, 70 °C 24 A, (72 V) 3 Poles in Series, 40 °C 27 A, (72 V) 3 Poles in Series, 60 °C 27 A, (72 V) 3 Poles in Series, 70 °C 24 A |
| Rated Operational Current DC-5 (Ie) | (110 V) 1-Pole, 40 °C 4 A, (110 V) 1-Pole, 60 °C 4 A, (110 V) 1-Pole, 70 °C 4 A, (110 V) 2 Poles in Series, 40 °C 15 A, (110 V) 2 Poles in Series, 60 °C 15 A, (110 V) 2 Poles in Series, 70 °C 15 A, (110 V) 3 Poles in Series, 40 °C 27 A, (110 V) 3 Poles in Series, 60 °C 27 A, (110 V) 3 Poles in Series, 70 °C 24 A, (220 V) 2 Poles in Series, 40 °C 4 A, (220 V) 2 Poles in Series, 60 °C 4 A, (220 V) 2 Poles in Series, 70 °C 4 A, (220 V) 3 Poles in Series, 40 °C 12 A, (220 V) 3 Poles in Series, 60 °C 12 A, (220 V) 3 Poles in Series, 70 °C 12 A, (72 V) 1-Pole, 40 °C 12 A, (72 V) 1-Pole, 60 °C 12 A, (72 V) 1-Pole, 70 °C 12 A, (72 V) 2 Poles in Series, 40 °C 27 A, (72 V) 2 Poles in Series, 60 °C 27 A, (72 V) 2 Poles in Series, 70 °C 24 A, (72 V) 3 Poles in Series, 40 °C 27 A, (72 V) 3 Poles in Series, 60 °C 27 A, (72 V) 3 Poles in Series, 70 °C 24 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.27 A / 60 W, (250 V) 0.27 A / 68 W, (400 V) 0.15 A / 60 W, (500 V) 0.13 A / 65 W, (600 V) 0.1 A / 60 W |
| Rated Operational Power AC-3 (Pe) | (415 V) 5.5 kW, (440 V) 5.5 kW, (500 V) 7.5 kW, (690 V) 7.5 kW, (380 / 400 V) 5.5 kW, (220 / 230 / 240 V) 3 kW |
| Rated Operational Power AC-3e (Pe) | (415 V) 5.5 kW, (440 V) 5.5 kW, (500 V) 7.5 kW, (690 V) 7.5 kW, (380 / 400 V) 5.5 kW, (220 / 230 / 240 V) 3 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A, for 0.1 s 140 A, for 1 s 100 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 690 V, acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour, (AC-15) 1200 cycles per hour, (AC-2 / AC-4) 300 cycles per hour, (AC-3) 1200 cycles per hour, (DC-13) 900 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V, 60 Hz 100 ... 250 V, DC Operation 100 ... 250 V |
| Power Loss | at 6 A per Pole 0.1 W, at Rated Operating Conditions AC-1 per Pole 1 W, at Rated Operating Conditions AC-3 per Pole 0.2 W |
| Operate Time | Between Coil De-energization and NC Contact Closing 13 ... 98 ms, Between Coil De-energization and NO Contact Opening 11 ... 95 ms, Between Coil Energization and NC Contact Opening 38 ... 90 ms, Between Coil Energization and NO Contact Closing 40 ... 95 ms |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting by Screws (not supplied) | 2 x M4 Screws Placed Diagonally |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm², Flexible with Insulated Ferrule 1x 0.75 ... 4 mm², Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm², Rigid Solid 1/2x 1 ... 4 mm², Rigid Stranded 1/2x 1 ... 6 mm² |
| Connecting Capacity Auxiliary Circuit | Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm² |
| Wire Stripping Length | Auxiliary Circuit 10 mm, Control Circuit 10 mm, Main Circuit 10 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1.2 N·m, Control Circuit 1.2 N·m, Main Circuit 1.5 N·m |
| Terminal Type | Screw Terminals |
| Product Name | Block Contactor |
| NEMA Size | 0 |
| Continuous Current Rating NEMA | 18 A |
| Horsepower Rating NEMA | (115 V AC) Single Phase 1 Hp, (200 V AC) Three Phase 3 Hp, (230 V AC) Single Phase 2 Hp, (230 V AC) Three Phase 3 Hp, (460 V AC) Three Phase 5 Hp, (575 V AC) Three Phase 5 Hp |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| General Use Rating UL/CSA | (600 V AC) 28 A |
| Horsepower Rating UL/CSA | (120 V AC) Single Phase 1 hp, (200 ... 208 V AC) Three Phase 3 hp, (220 ... 240 V AC) Three Phase 3, (240 V AC) Single Phase 2 hp, (440 ... 480 V AC) Three Phase 7-1/2 hp, (550 ... 600 V AC) Three Phase 10 hp |
| Connecting Capacity Main Circuit UL/CSA | Rigid Solid 1/2x 16-10 AWG, Rigid Stranded 1/2x 16-10 AWG |
| Connecting Capacity Auxiliary Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG, Rigid Stranded 1/2x 18-14 AWG |
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG, Rigid Stranded 1/2x 18-14 AWG |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb, Control Circuit 11 in·lb, Main Circuit 13 in·lb |
| Full Load Amps Motor Use | (120 V AC) Single Phase 16 A, (200 ... 208 V AC) Three Phase 11 A, (220 ... 240 V AC) Three Phase 9.6 A, (240 V AC) Single Phase 12 A, (440 ... 480 V AC) Three Phase 11 A, (550 ... 600 V AC) Three Phase 11 A |
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °C, Close to Contactor without Thermal O/L Relay -40 ... 70 °C, Close to Contactor for Storage -60 ... +80 °C |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Pollution Degree | 3 |
