Артикул: 103H-AFBD2-CB63X-1M-6P-A20
· Производитель: Allen Bradley
103H-AFBD2-CB63X-1M-6P-A20
Под заказ
Наличие в РФ
нет в наличии
Склад в Китае
103 643.18 ₽
срок ≈1 мес. (52 дн.)
Склад в Европе
159 610.50 ₽
срок ≈1 мес. (52 дн.)

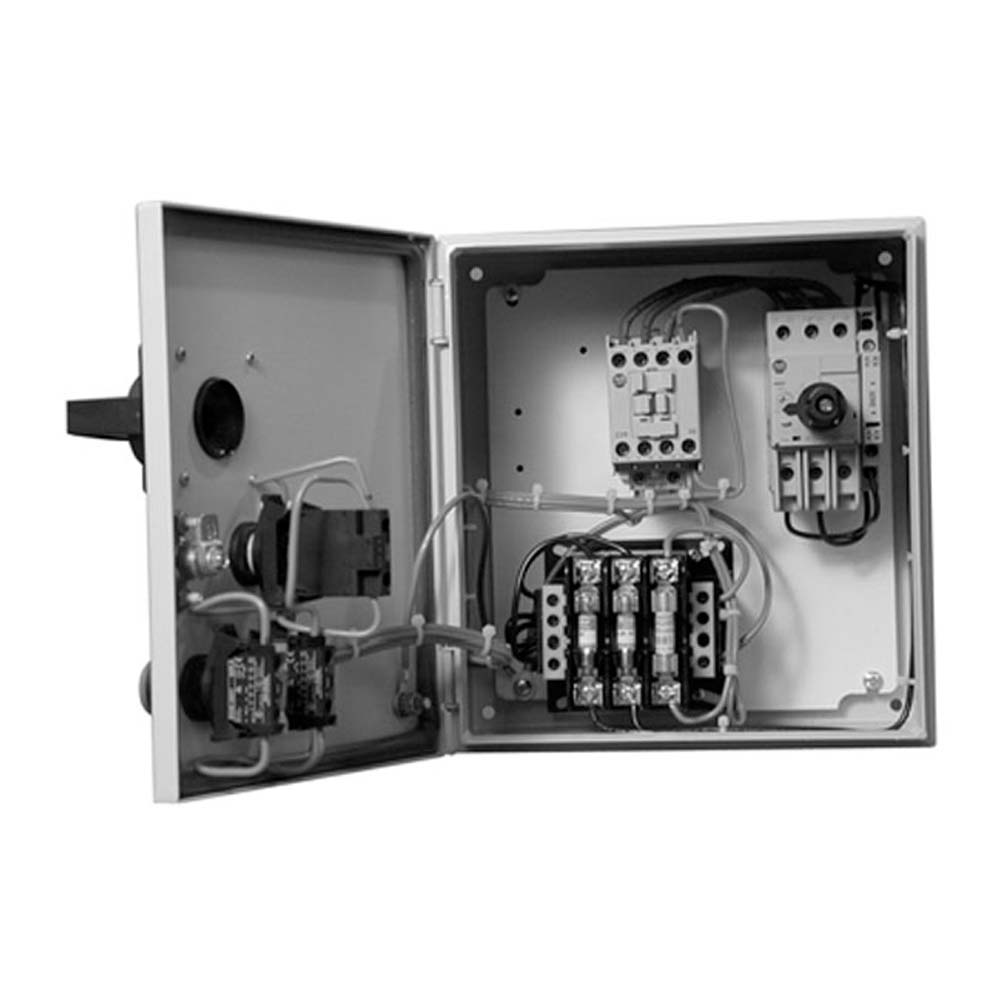

IEC Enclosed H Comb Motor Ctlr
Варианты поставки
| Склад | Цена | Срок | Наличие | Мин. партия | |
|---|---|---|---|---|---|
| Склад в Китае | 103 643.18 ₽ | ≈1 мес. (52 дн.) | под заказ | — | Заказать |
| Склад в Европе | 159 610.50 ₽ | ≈1 мес. (52 дн.) | под заказ | — | Заказать |
| Склад в Китае | 176 193.41 ₽ | ≈1 мес. (52 дн.) | под заказ | — | Заказать |
Характеристики
| Lifecycle Status | Active |
| Build America, Buy America | No |
| Repair Options Available | No |
| Sub Brand | IEC Enclosed |
| Circuit breaker auxiliary and trip contacts | Without auxiliary and trip contacts |
| Circuit breaker frame size | 140M-C2E high break (Type E - standard version, magnetic + thermal) |
| Contactor size | 100-C09 |
| Degrees of protection (IP), enclosure | IP66 (metal) |
| Degrees of protection (NEMA), enclosure | Type 3/4/12 |
| Depth, approx | Enclosure style A: 160 mm |
| Enclosure size | Enclosure type A |
| Factory installed models | Multifunction push button - START-STOP |
| Height, approx | Enclosure style A: 200 mm |
| Hp ratings as a UL508 self-protected Type E combination motor controller | 5Hp @ 575V, 60 Hz, 25 A frame size |
| Hp ratings as a UL508 Type F combination motor controller | 5Hp @ 575V, 25 A frame size |
| Line voltage | 480V-60 Hz |
| Number of auxiliary contacts as normally open contact | 1 |
| Overload release current setting | 4 A |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Release class | CLASS 10 |
| Temperature compensated overload protection | True |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| Width, approx | Enclosure style A: 180 mm |
| With short-circuit release | True |
| With transformer | True |
| Unique Product Identifier | 103H-AFBD2-CB63X-1M-6P-A20 |
| UPC | 889508115481 |
| Estimated Lead Time | 8 days |
| Standard Warranty Duration | 1 year See details |
| Country of Origin | United States of America |
| General | Publication |
| Product Cutsheet | -- |
| Technical Data | Publication |
| 100-td013_-en-p | 100-TD013 |
| Short-circuit current as a UL508 self-protected Type E combination motor controller, max | 65 kA @ 480Y/277V @ 60Hz, 25 A frame size |
